Turn Signal/Hazard Flasher Circuit Diagram

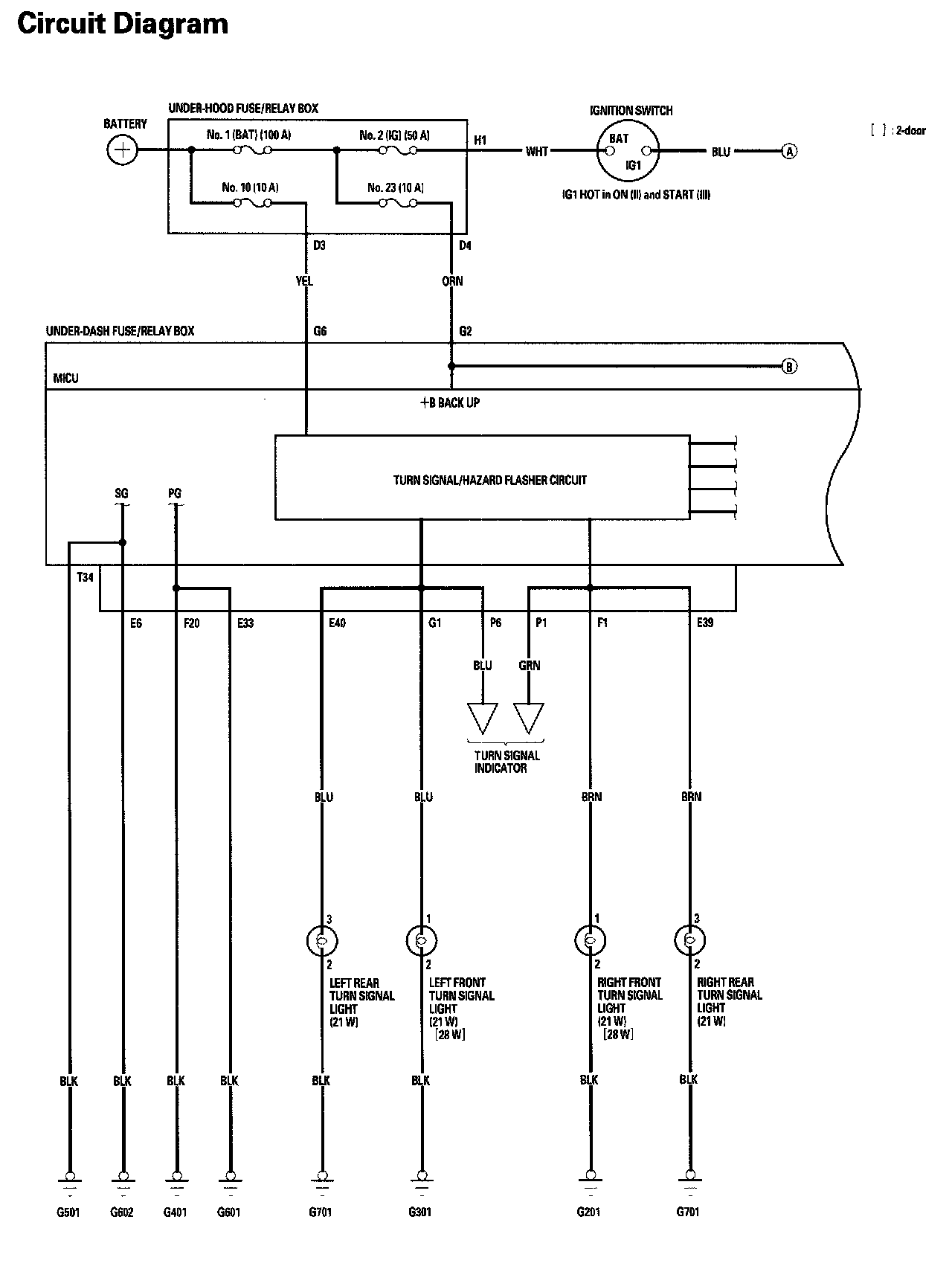

Turn Signal/Hazard Flasher Circuit Diagram Part 1:

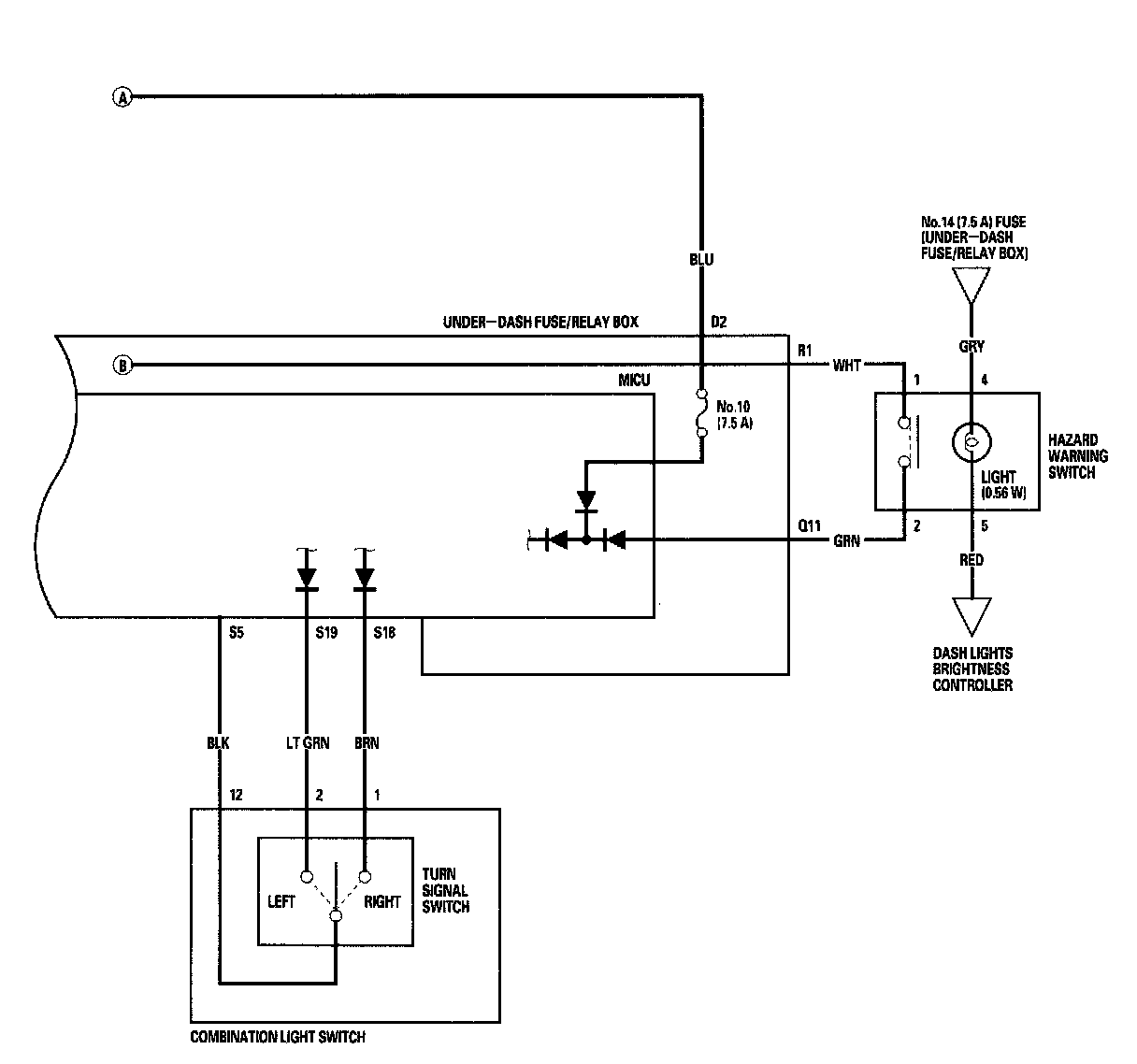

Turn Signal/Hazard Flasher Circuit Diagram Part 2:
