Exterior Lights Circuit Diagram

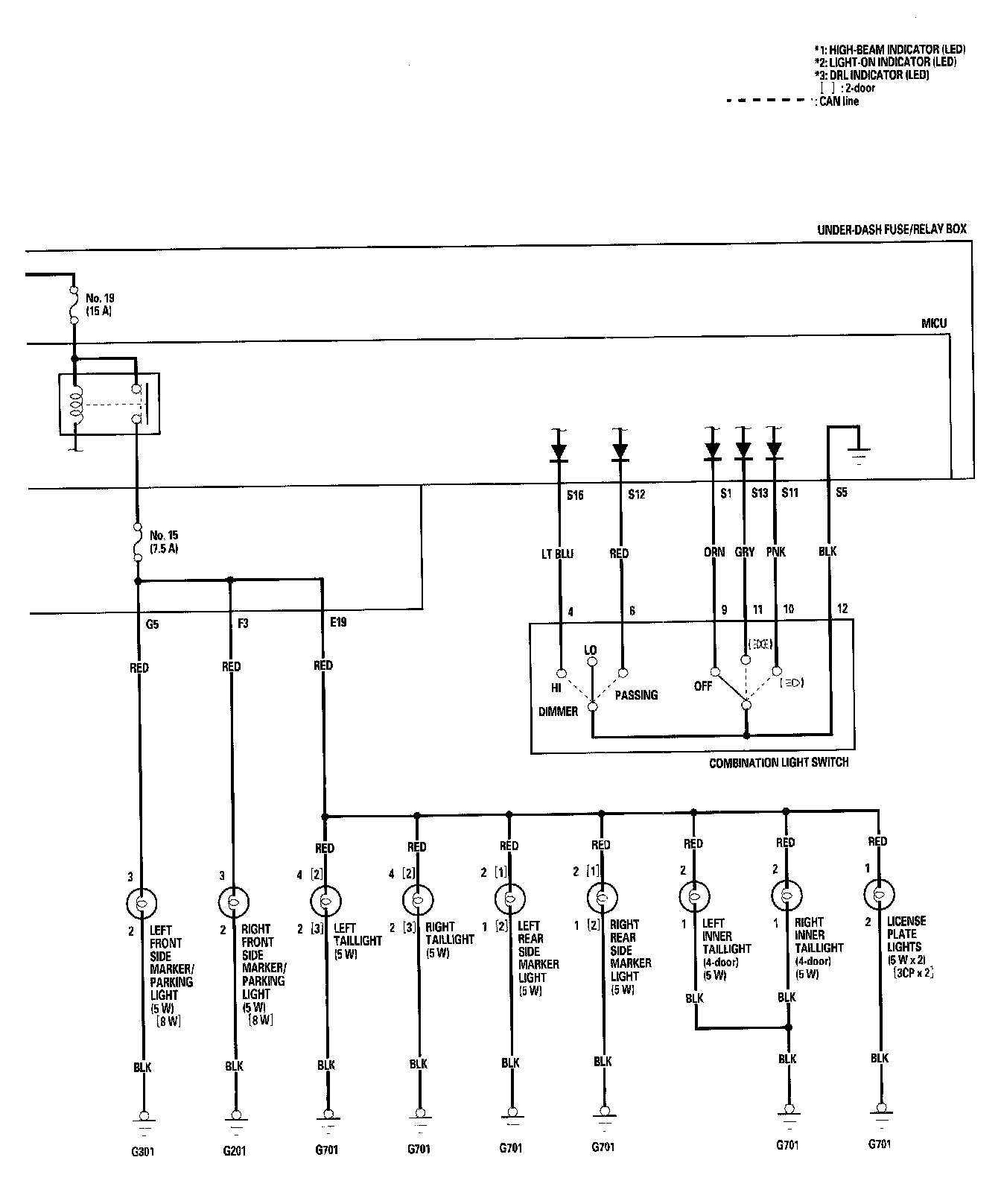

Exterior Lights Circuit Diagram Part 1:



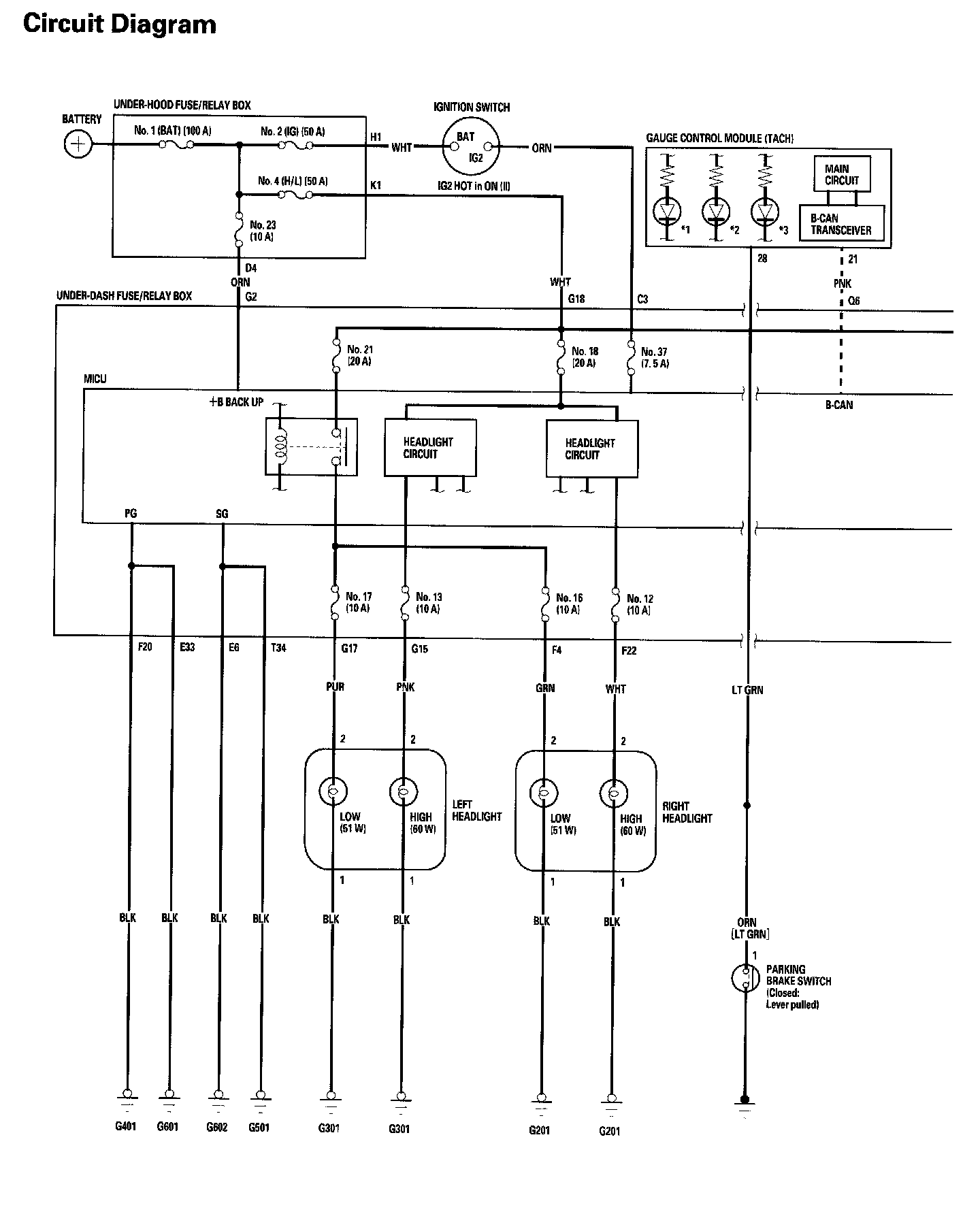

Exterior Lights Circuit Diagram Part 2:

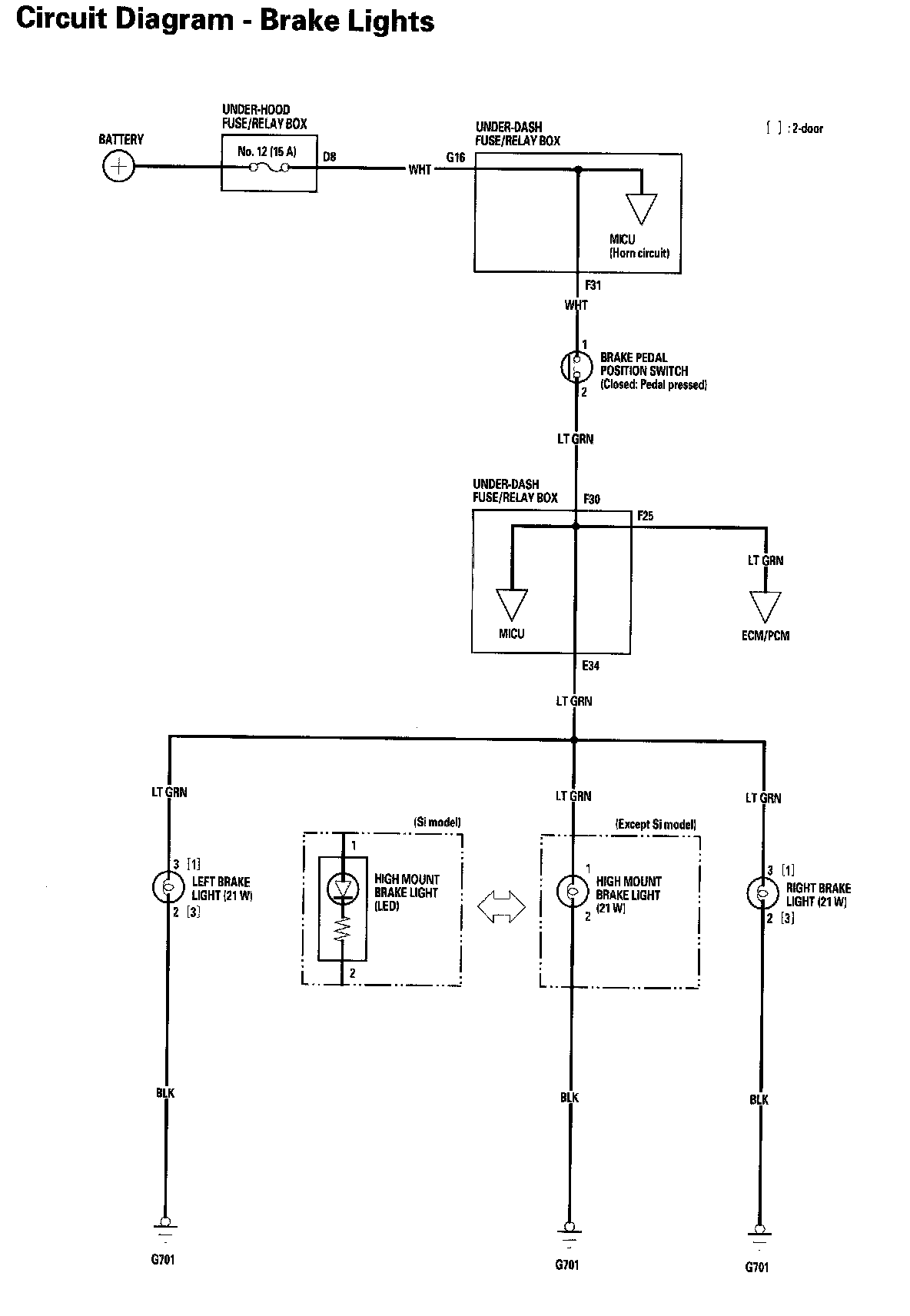

Circuit Diagram Brake Lights:

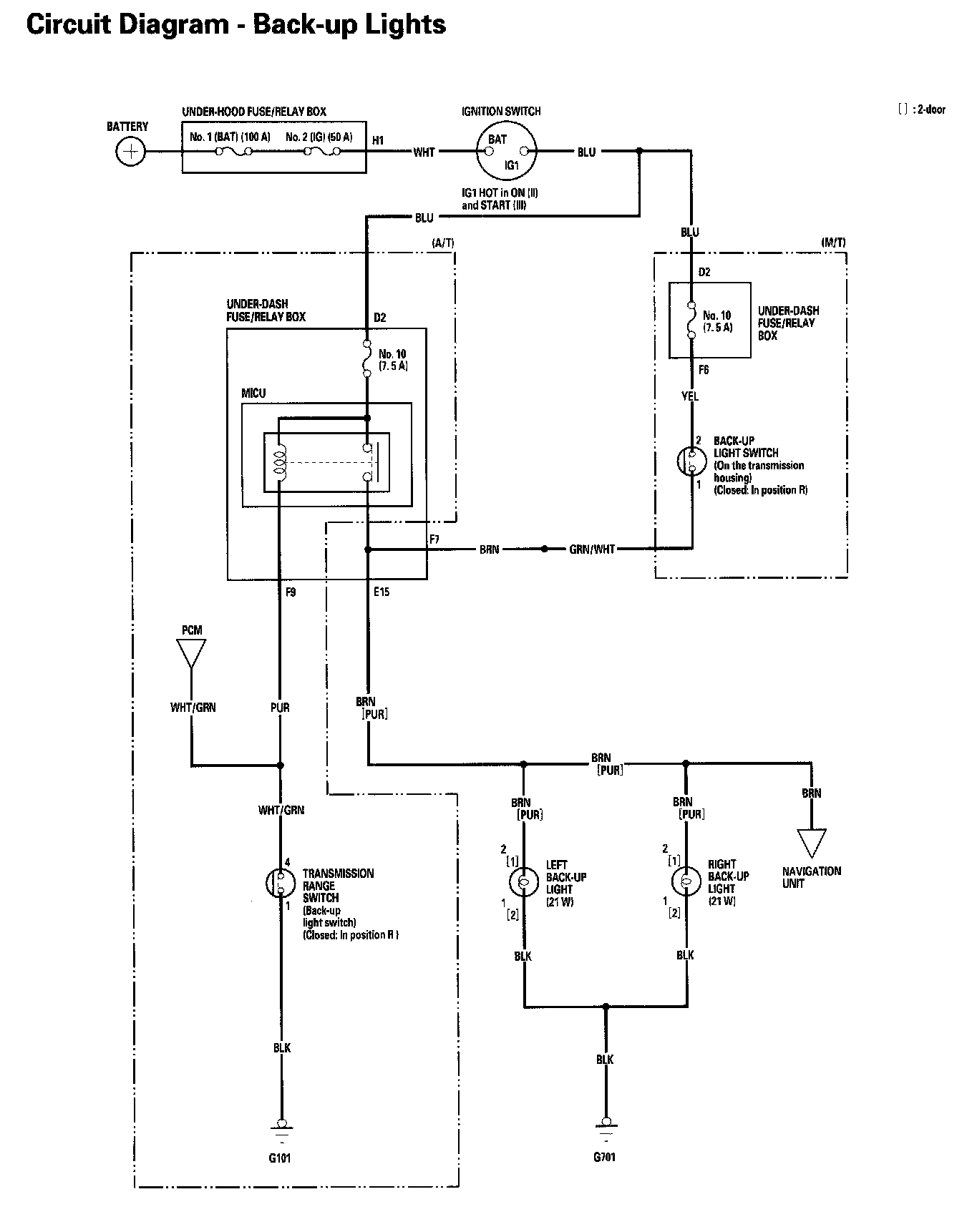

Circuit Diagram Back-up Lights:
