Gauges Circuit Diagram

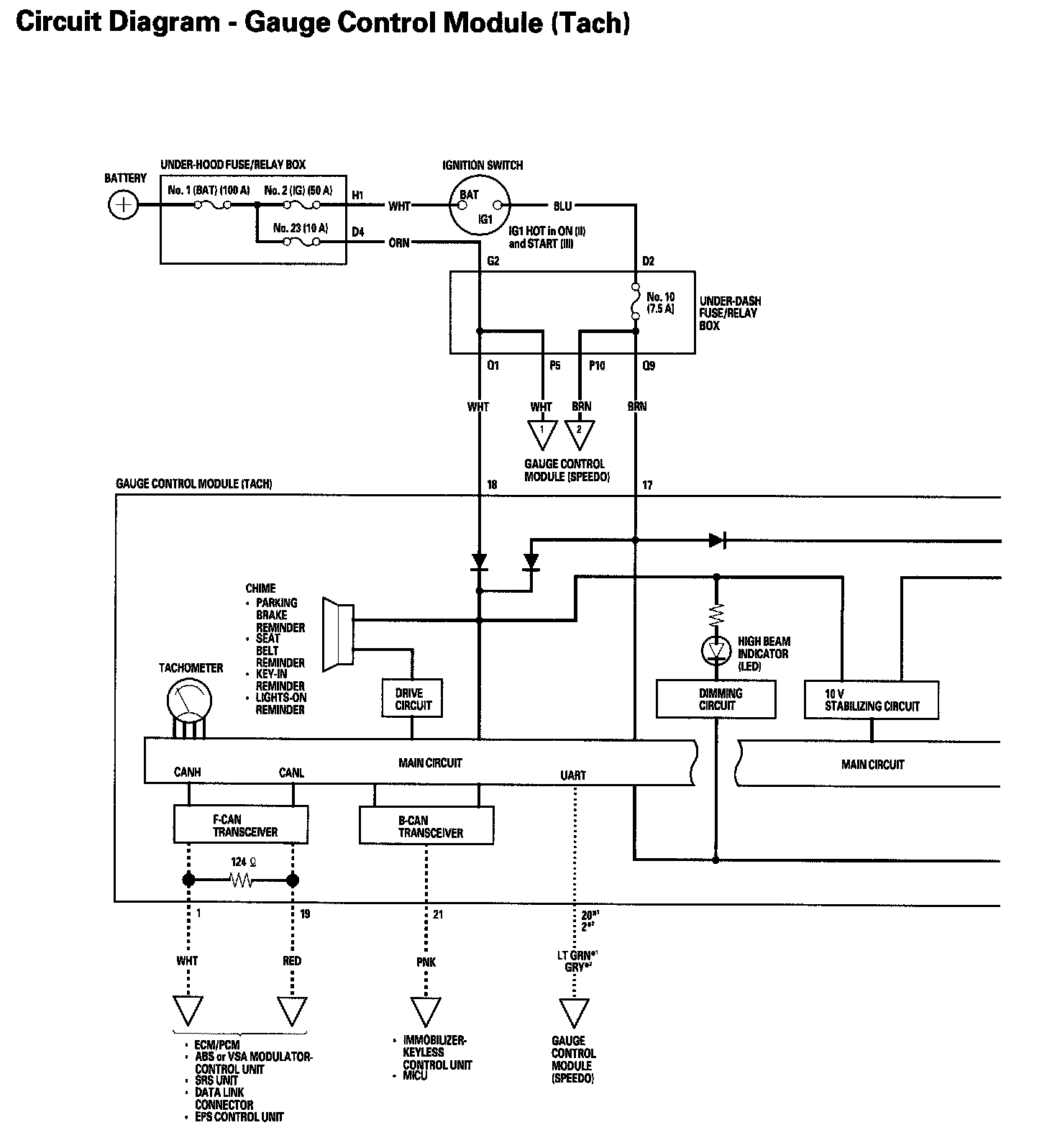

Gauges Circuit Diagram - Gauge Control Module (Tach) Part 1:

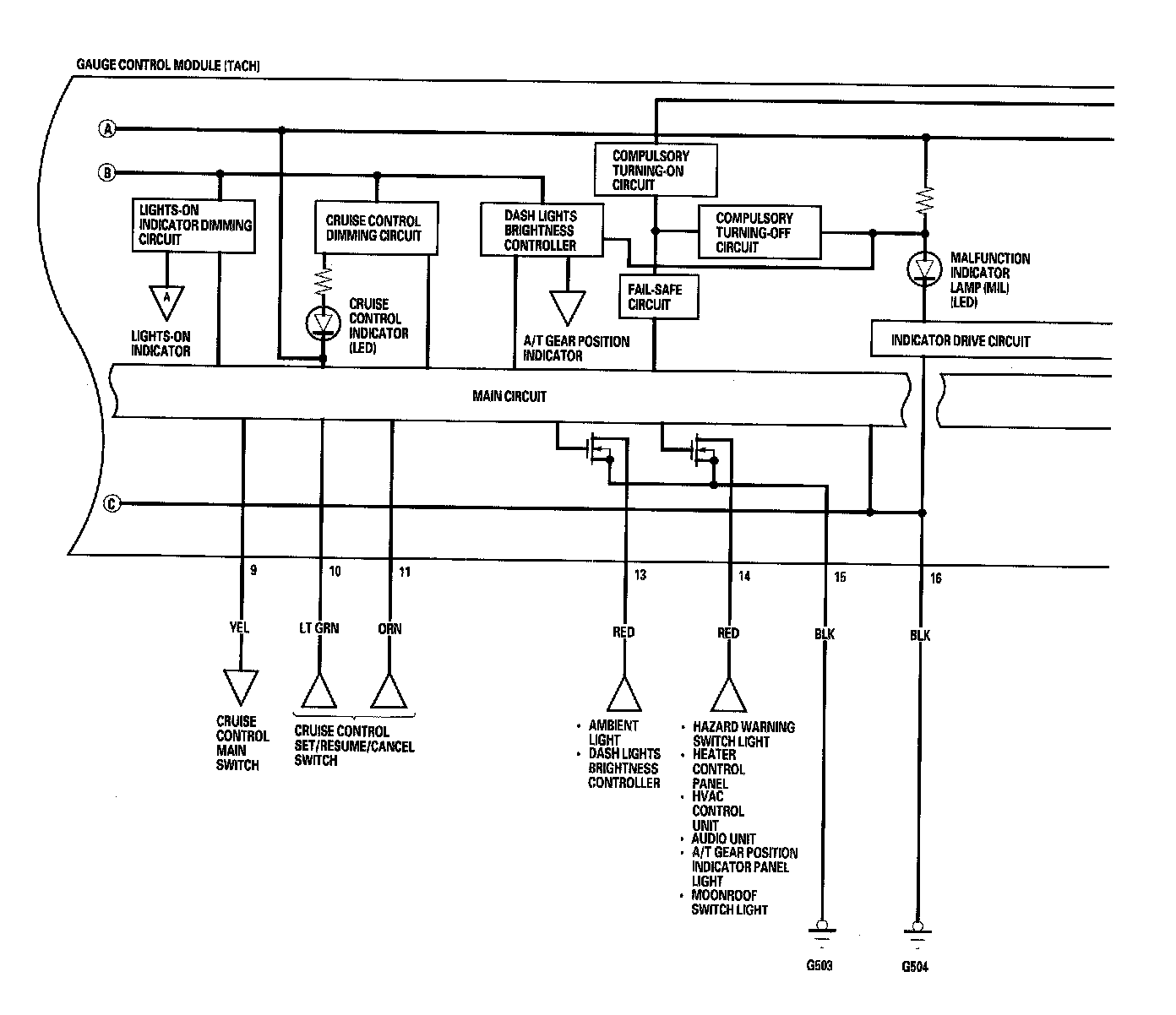

Gauges Circuit Diagram - Gauge Control Module (Tach) Part 2:

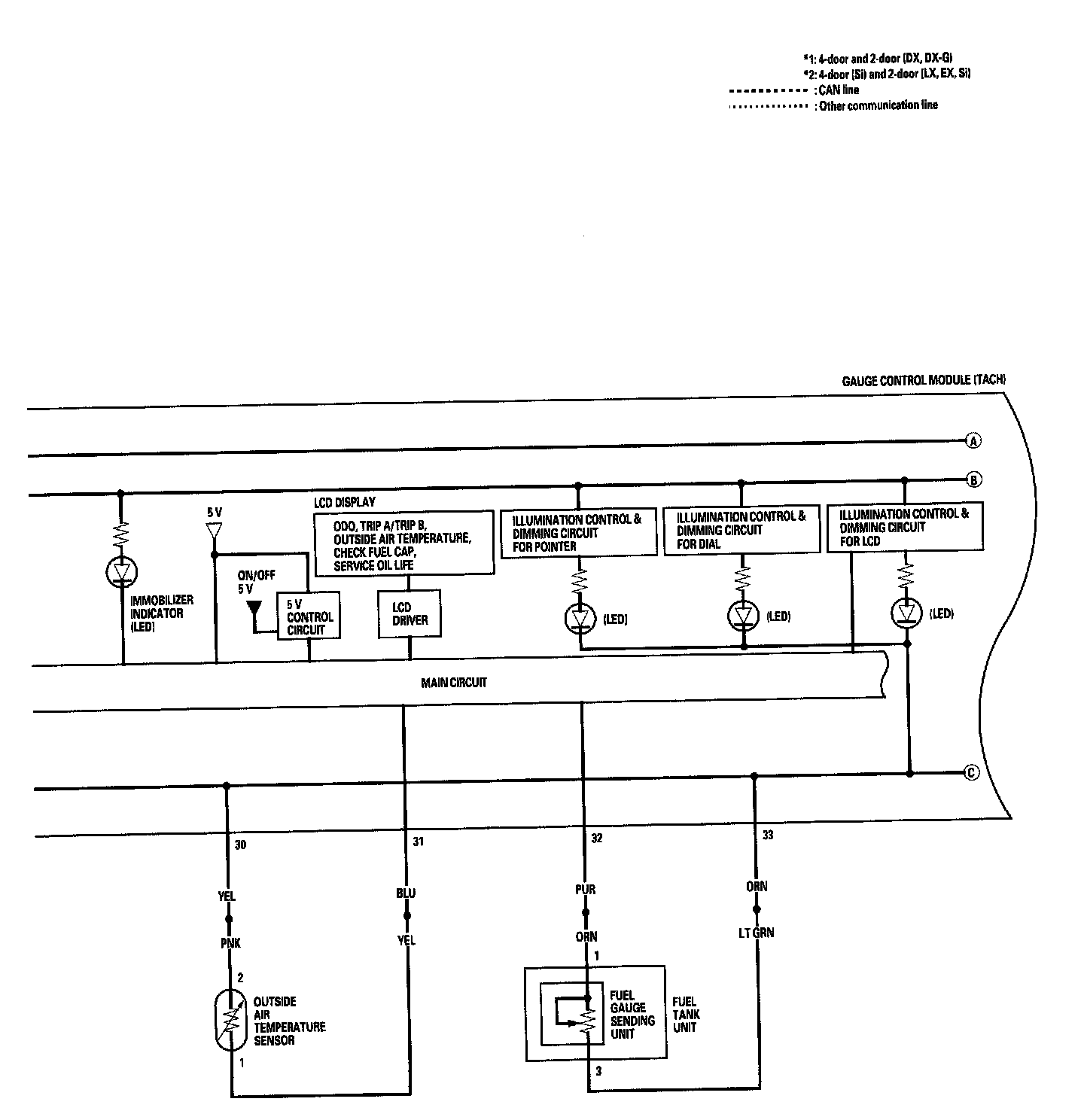

Gauges Circuit Diagram - Gauge Control Module (Tach) Part 3:

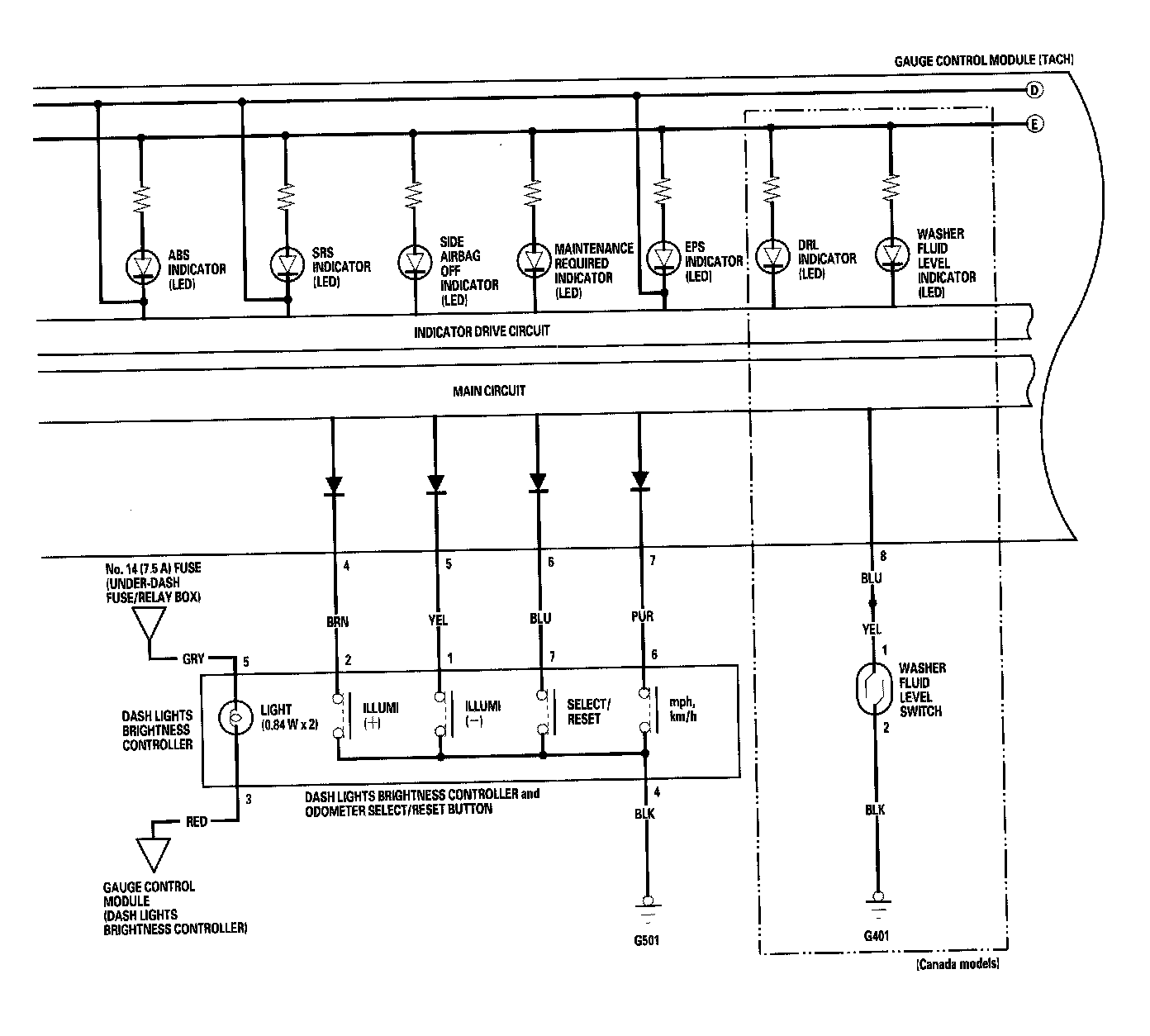

Gauges Circuit Diagram - Gauge Control Module (Tach) Part 4:

Gauges Circuit Diagram - Gauge Control Module (Tach) Part 5:

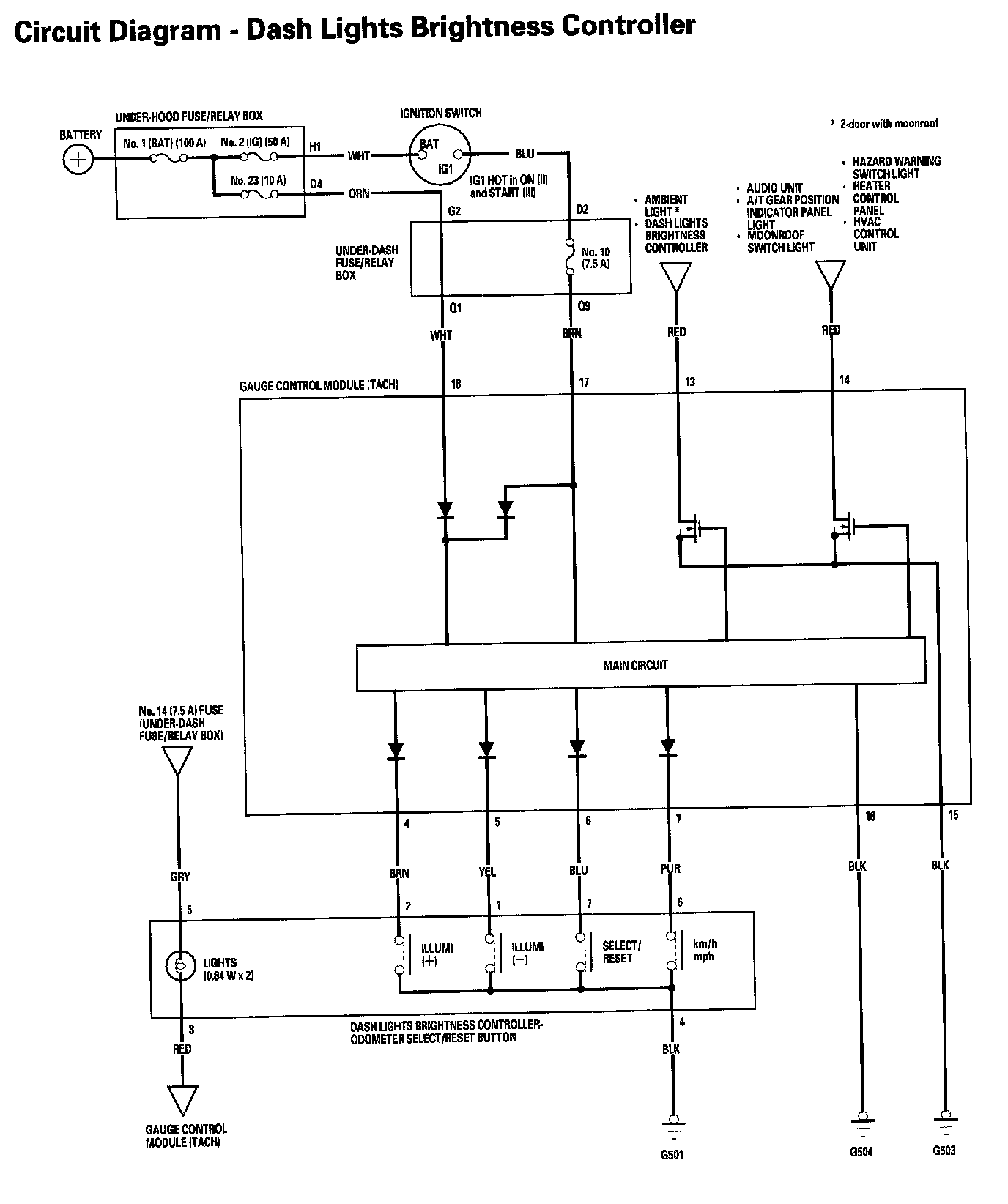

Gauges Circuit Diagram - Dash Lights Brightness Controller:

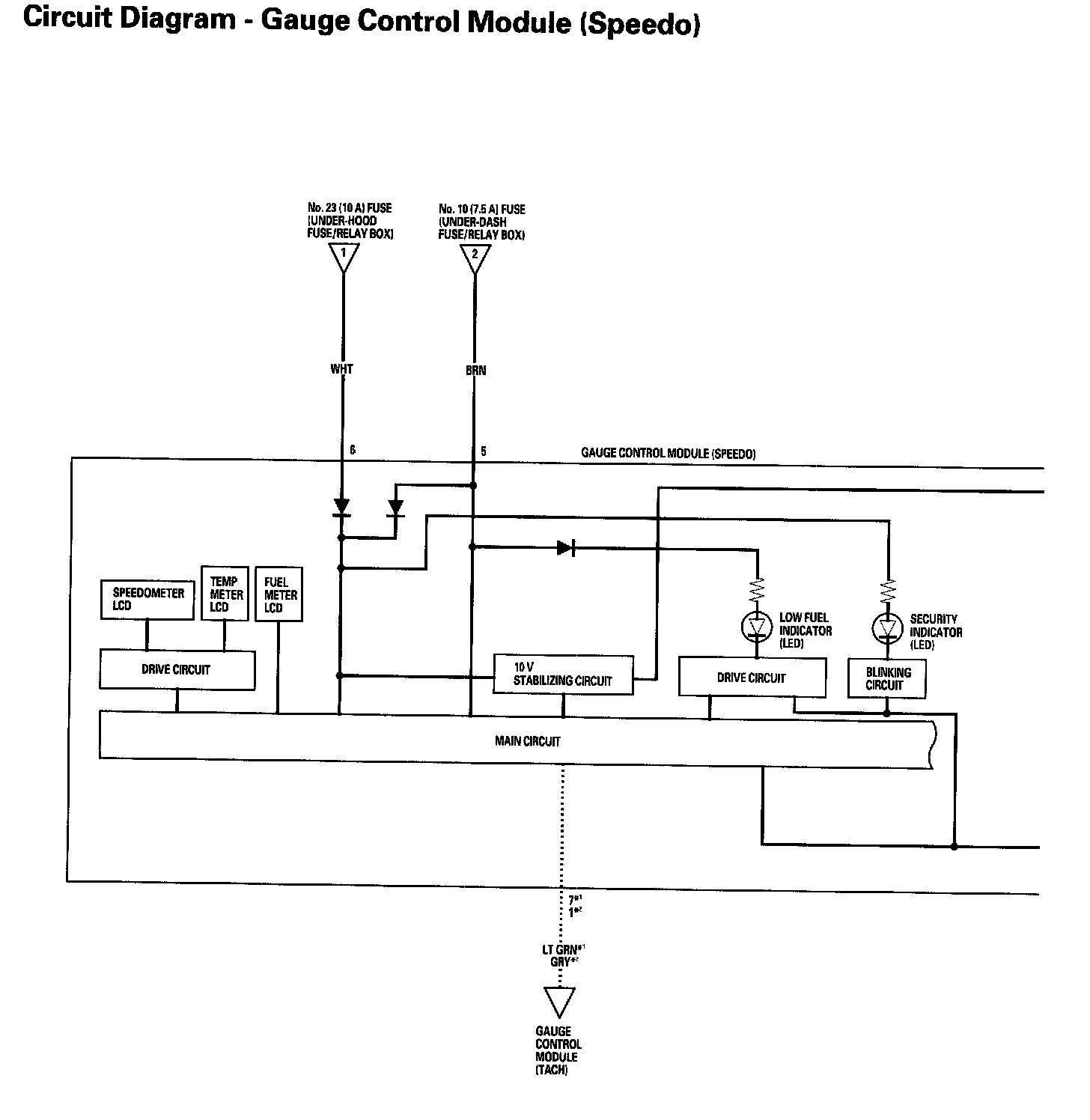

Gauges Circuit Diagram - Gauge Control Module (Speedo) Part 1:

Gauges Circuit Diagram - Gauge Control Module (Speedo) Part 2:
