Rear Window Defogger Ground Wire (2-Door: Si)
Rear Window Defogger Ground Wire (2-Door: Si)

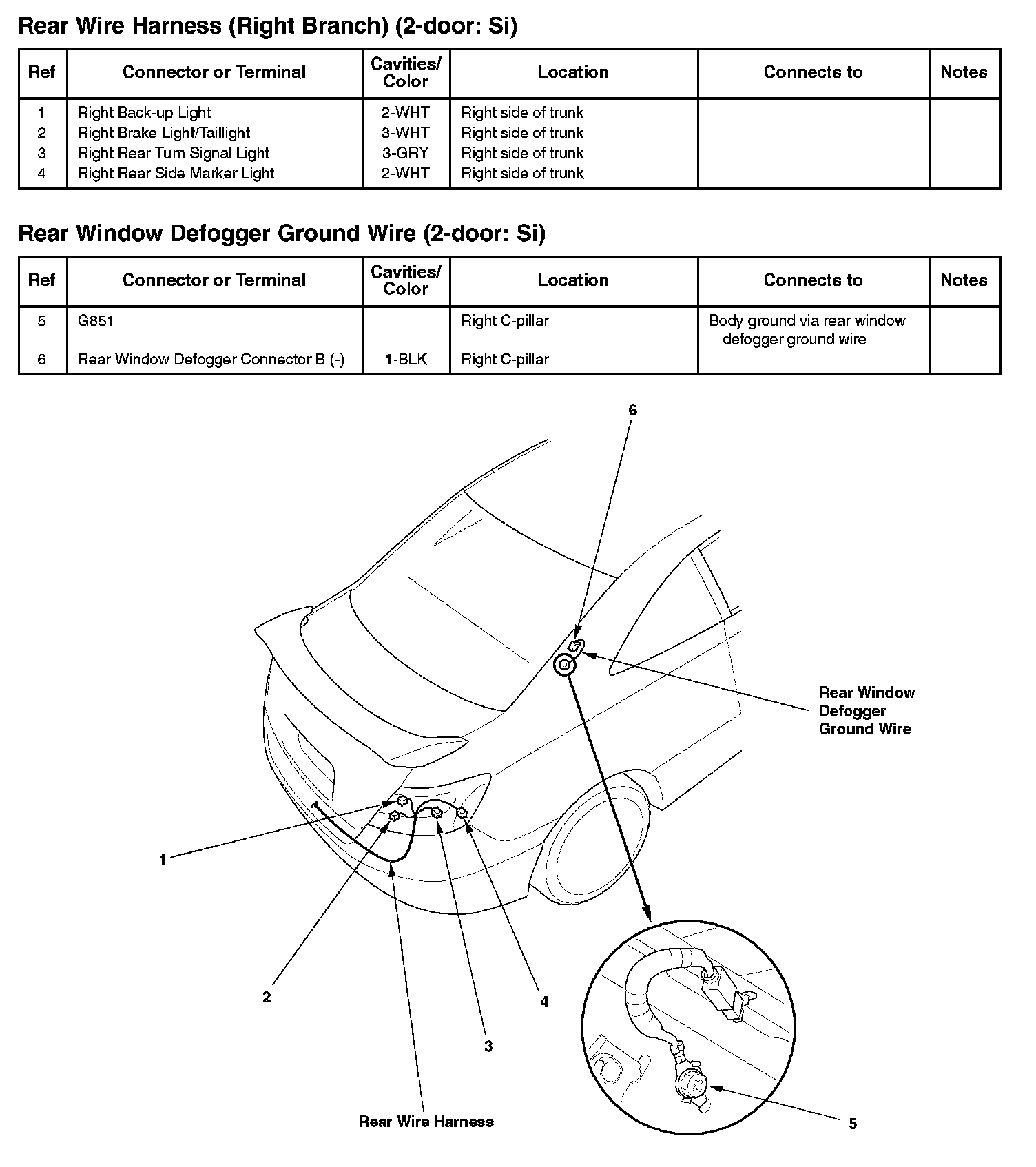

Rear Wire Harness (Right Branch) (2-door: Si)/Rear Window Defogger Ground Wire (2-door: Si):
