Console Sub-harness (EX, Si)

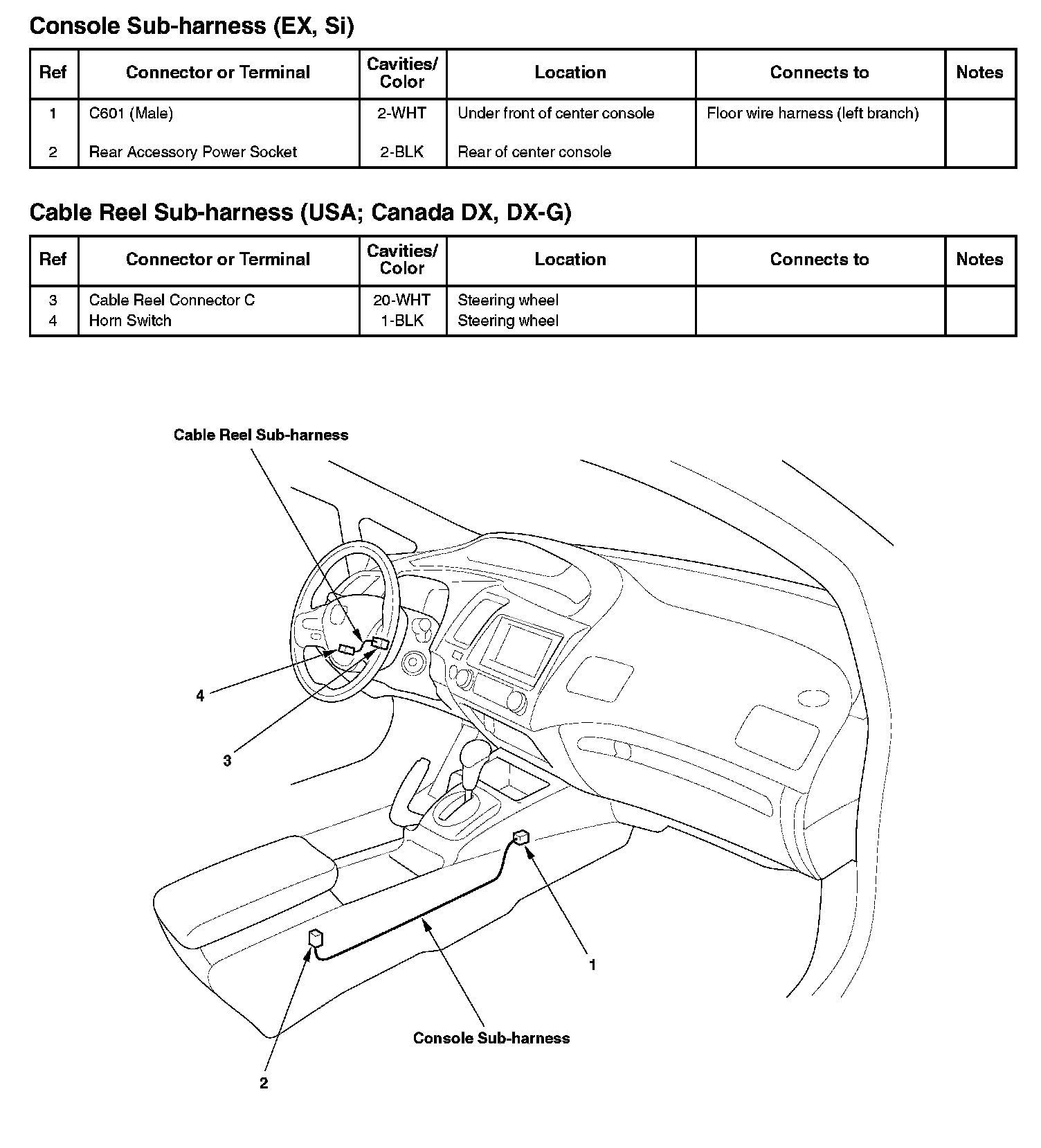

Console Sub-harness (EX, Si)/Cable Reel Sub-harness (USA: Canada DX, DX-G):
