System Diagram

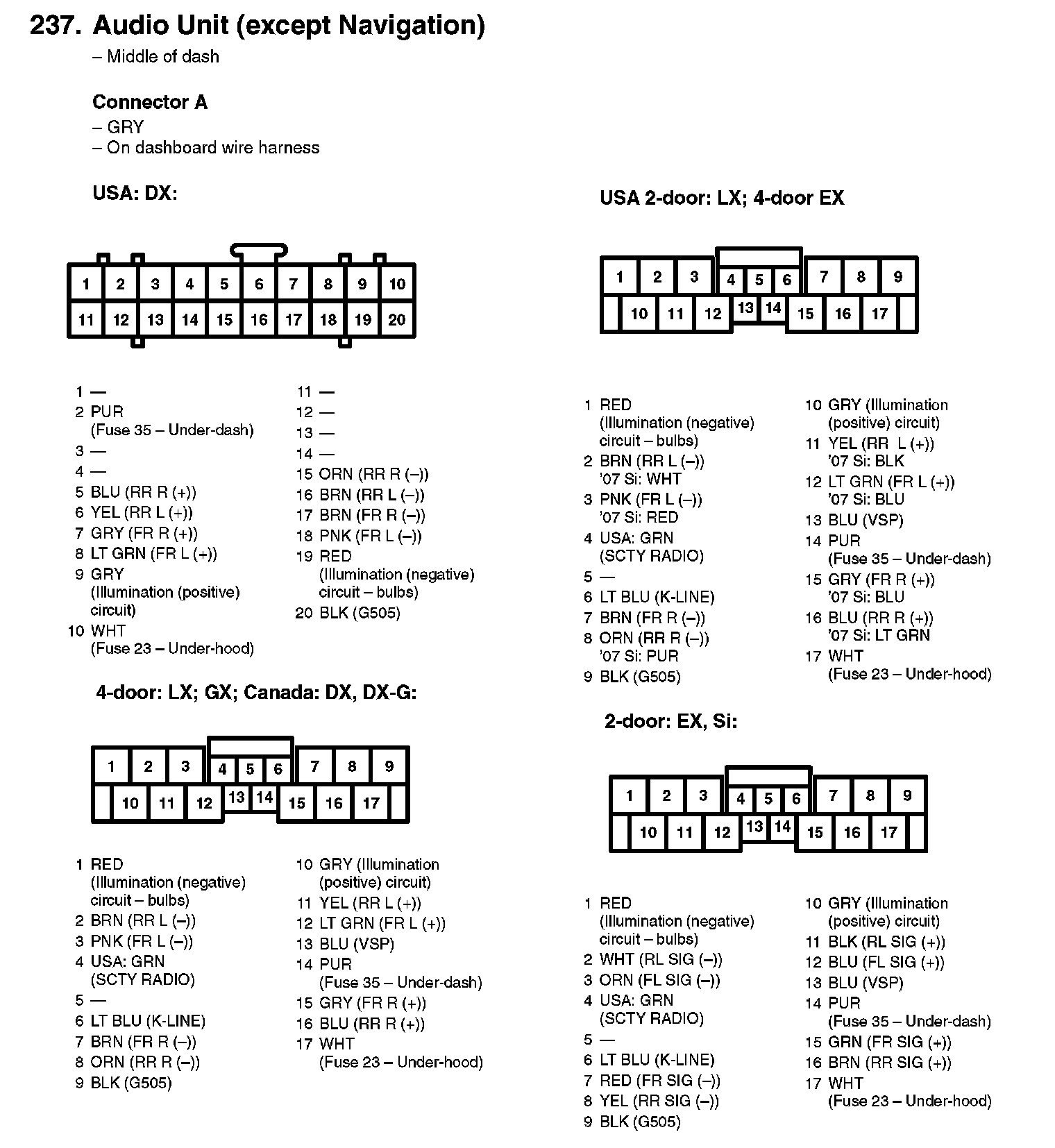

237. Audio Unit (except Navigation):

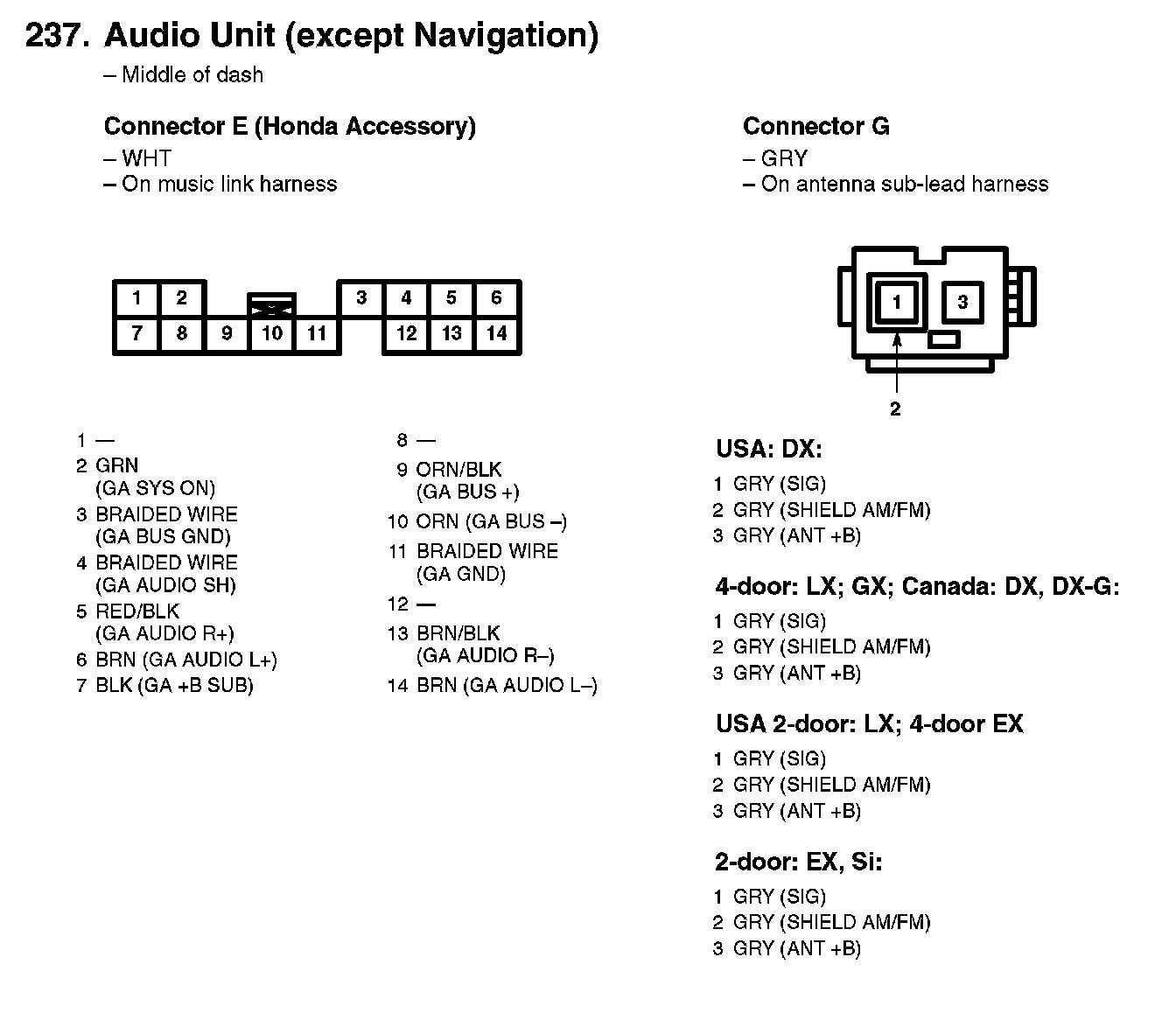

237. Audio Unit (except Navigation):



237. Audio Unit (except Navigation):

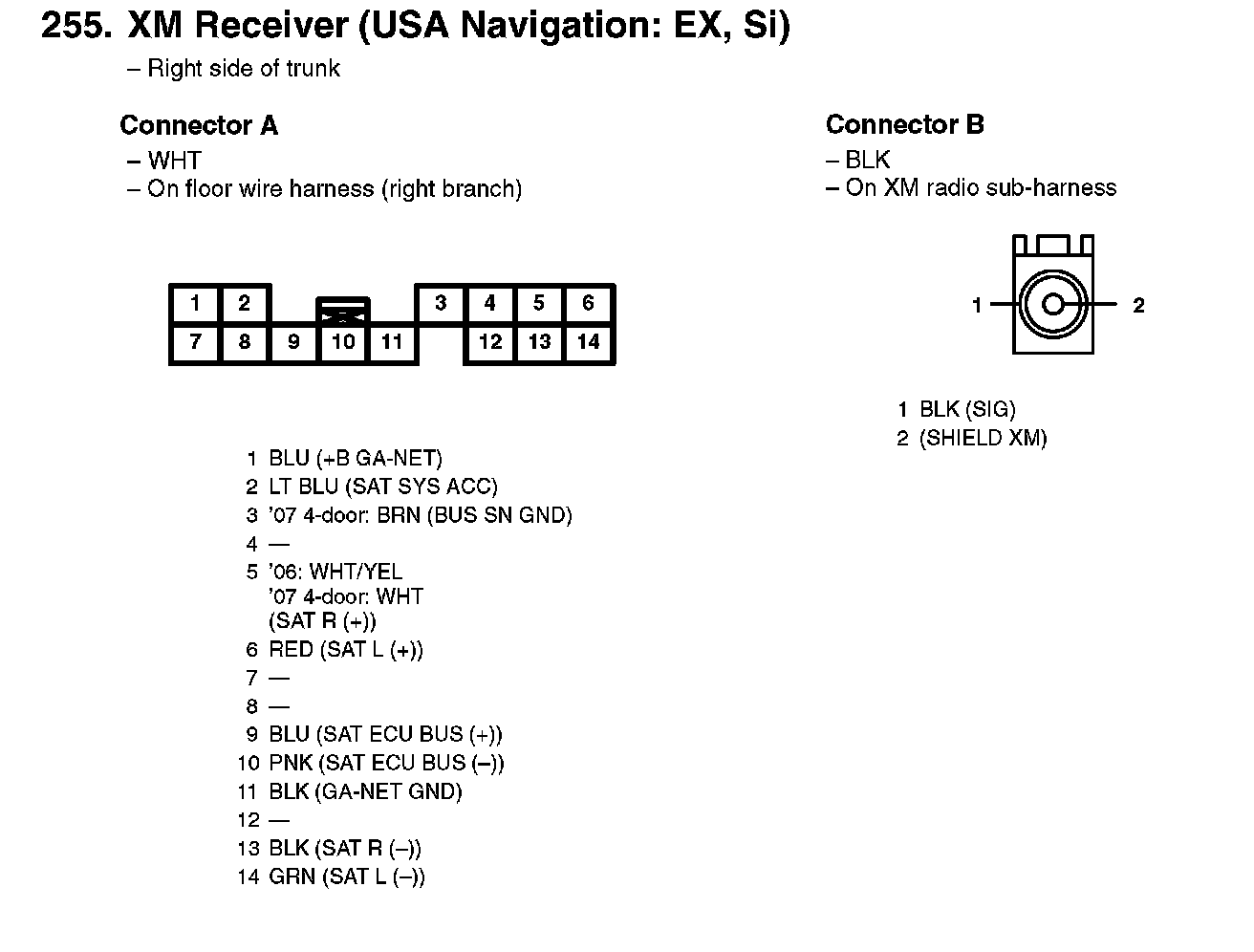

255. XM Receiver (USA Navigation: EX, Si):

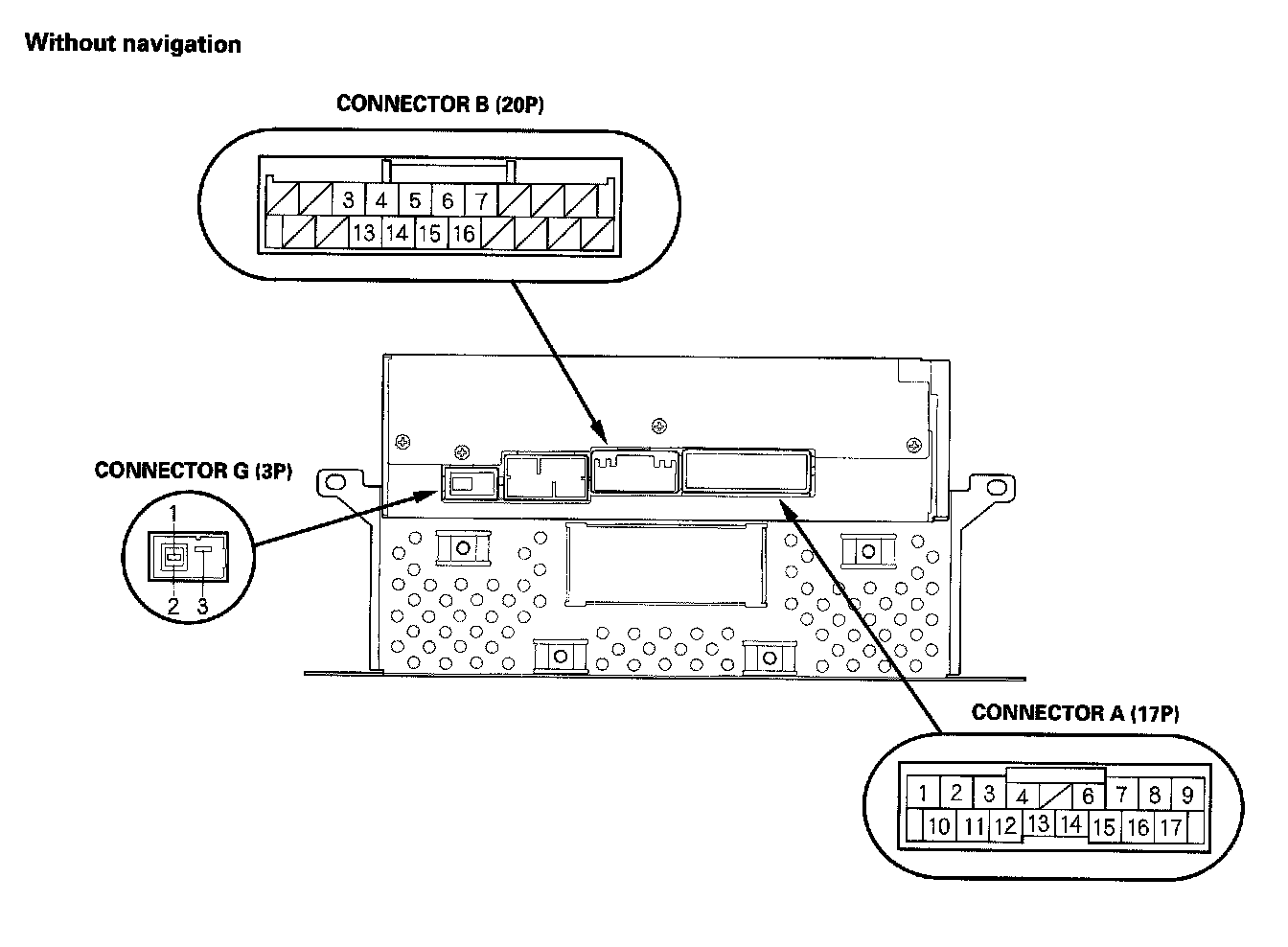

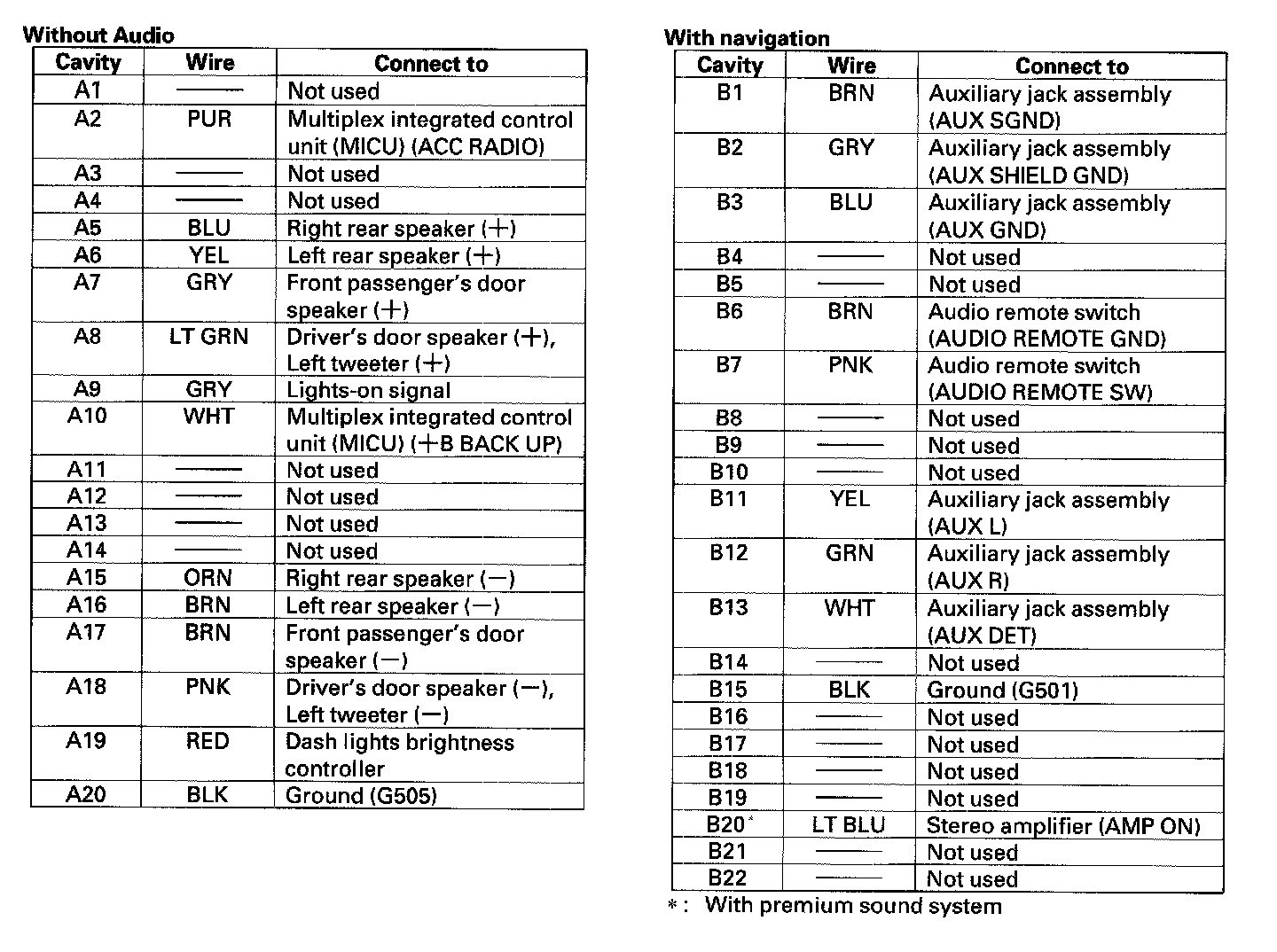

Audio Unit Connector For Inputs And Outputs:

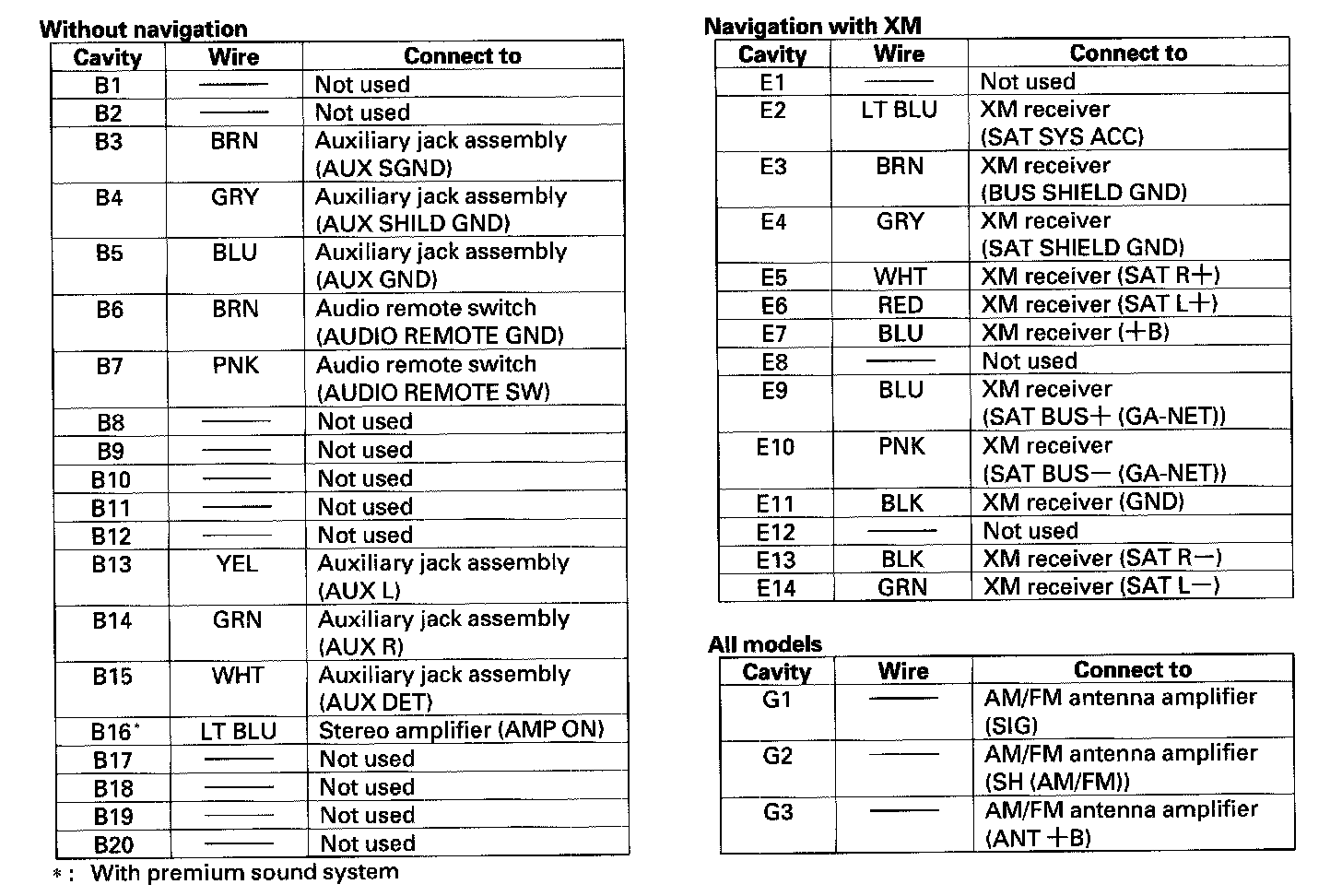

Audio Unit Connector For Inputs And Outputs:

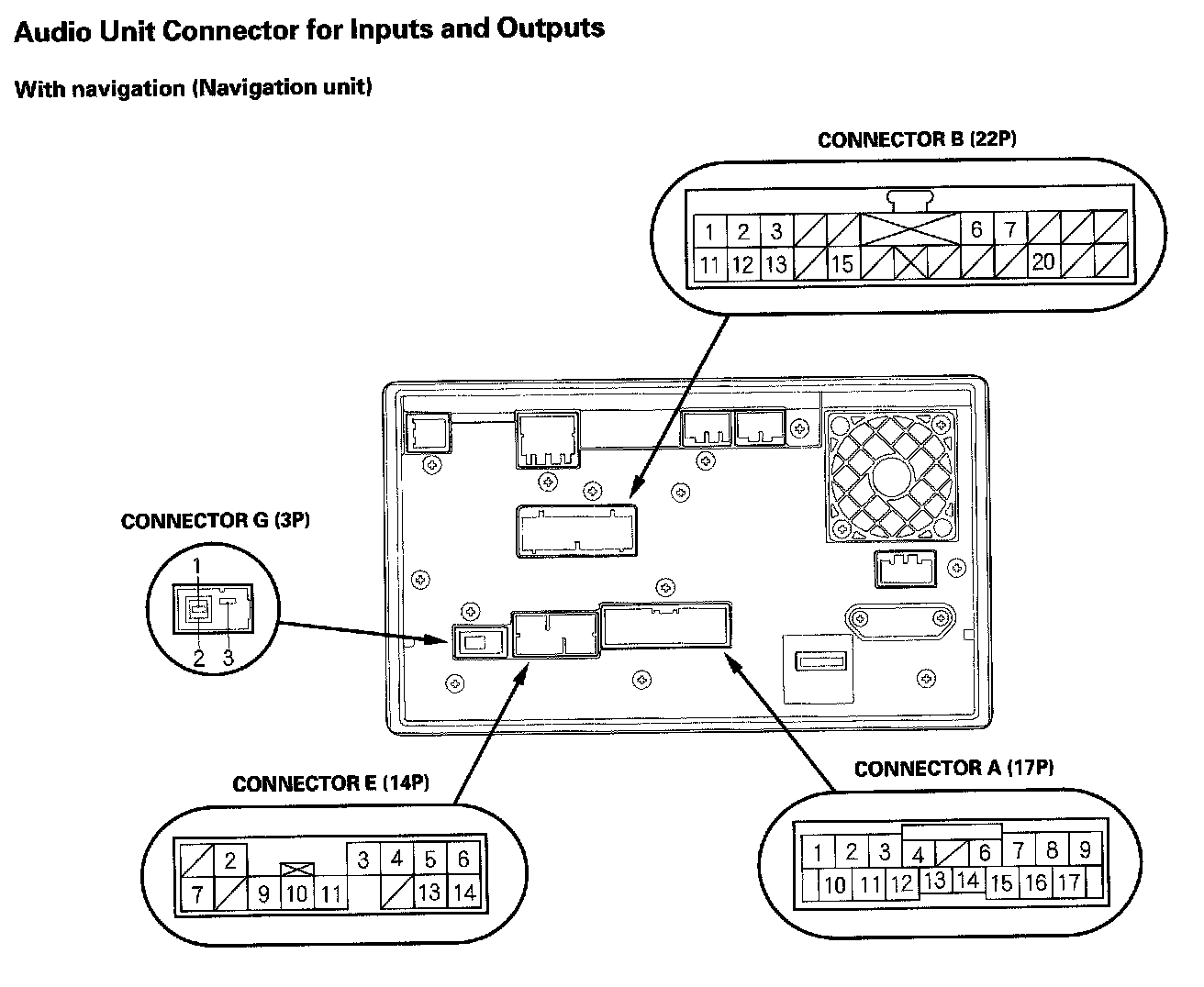

Audio Unit Connector For Inputs And Outputs:

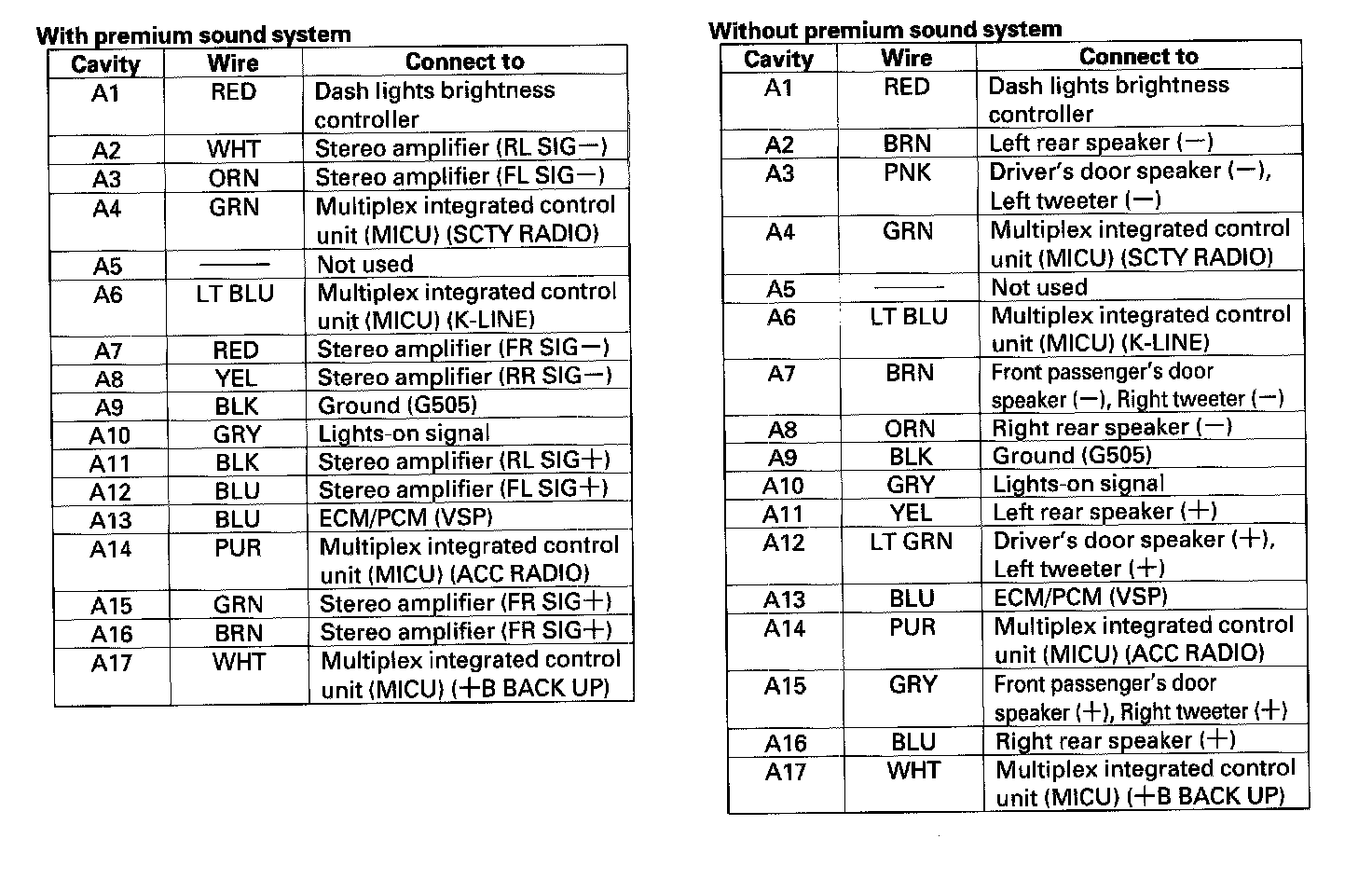

Audio Unit Connector For Inputs And Outputs:



Audio Unit Connector For Inputs And Outputs:

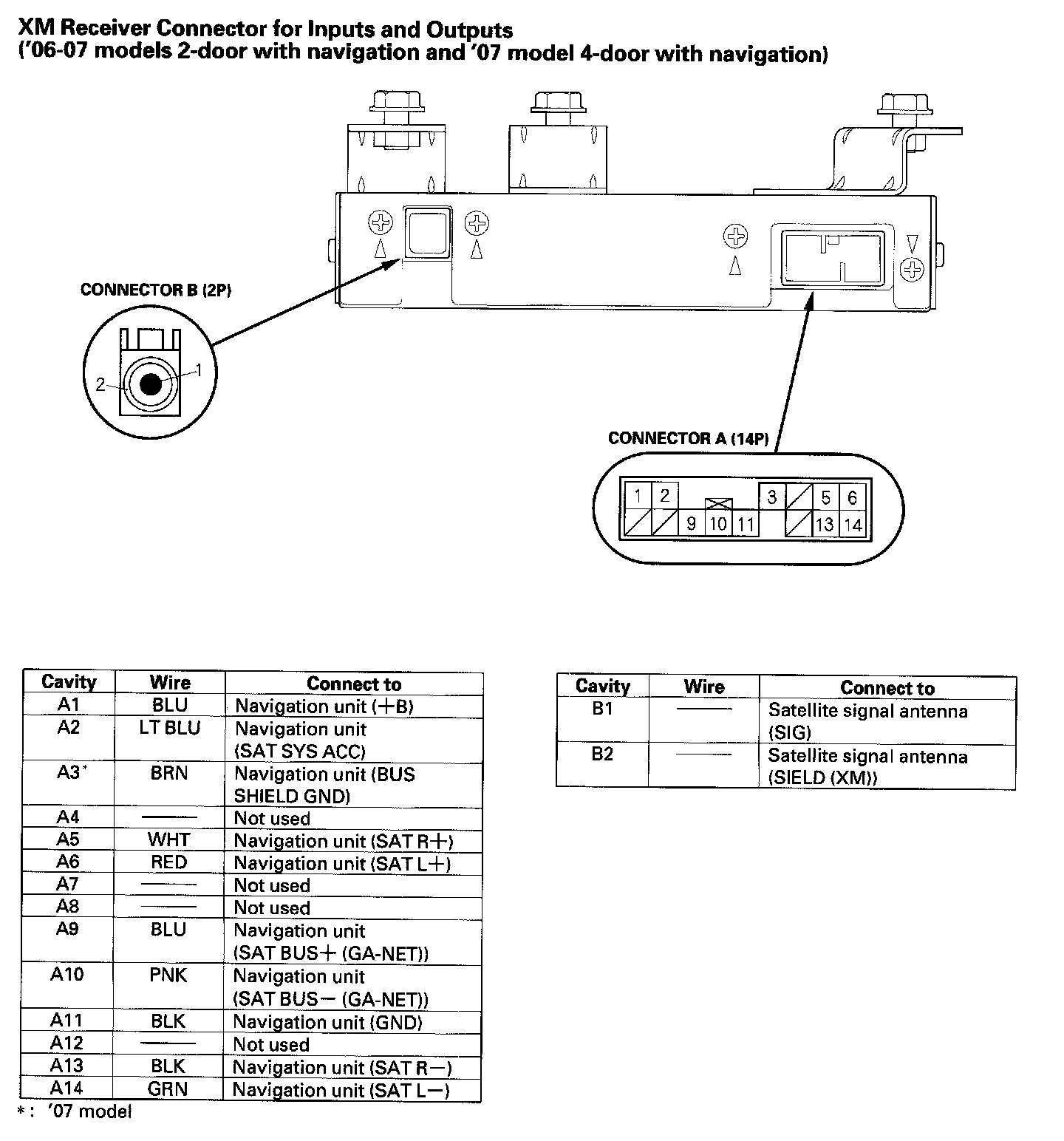

XM Receiver Connector For Inputs And Outputs:



Auxiliary Jack Assembly Connector For Inputs And Outputs:
