Navigation Module

245. Navigation Unit (USA: EX, Si):



245. Navigation Unit (USA: EX, Si):

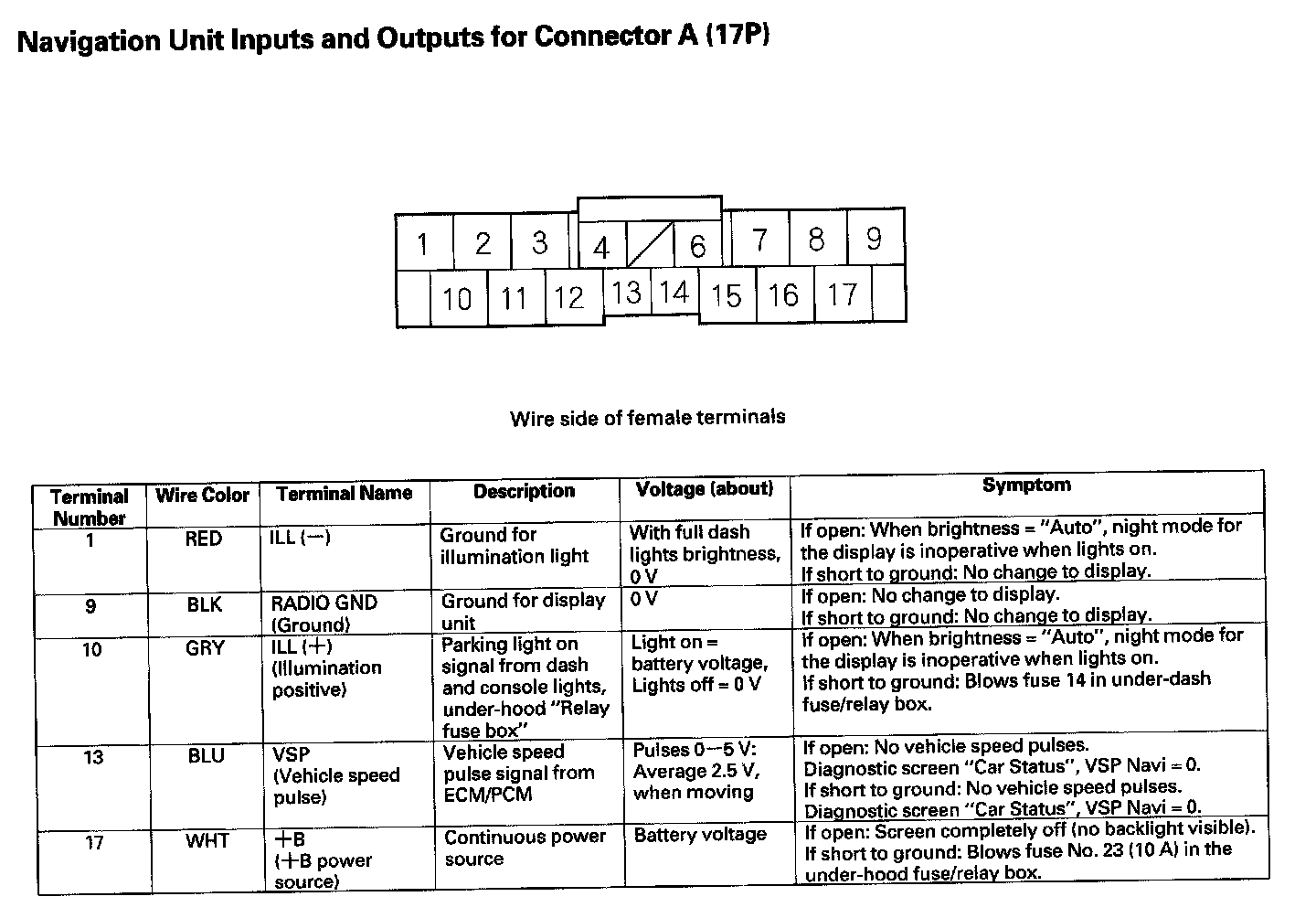

Navigation Unit Inputs And Outputs For Connector A (17P):

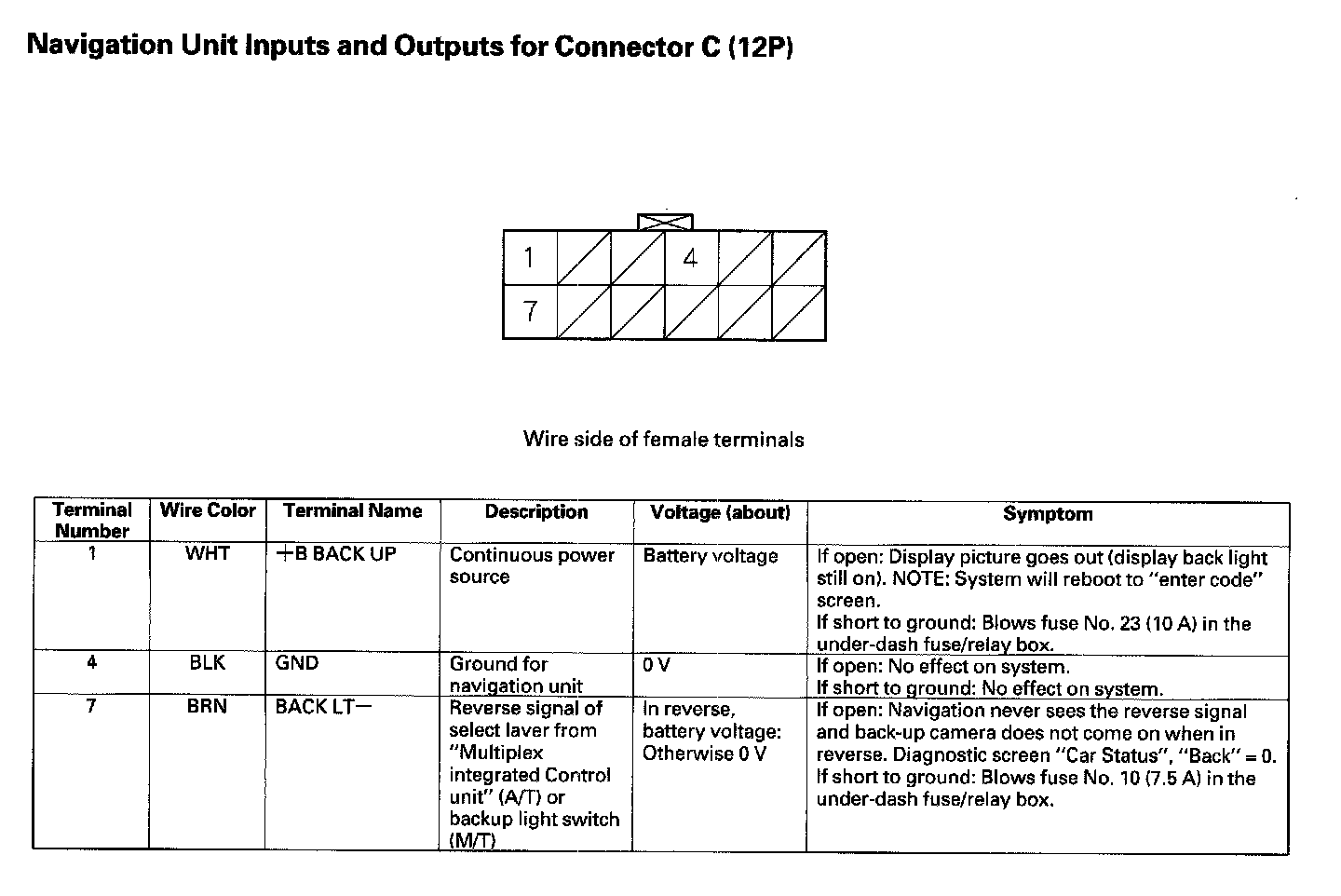

Navigation Unit Inputs And Outputs For Connector C (12P):



Navigation Unit Inputs And Outputs For Connector C (12P):

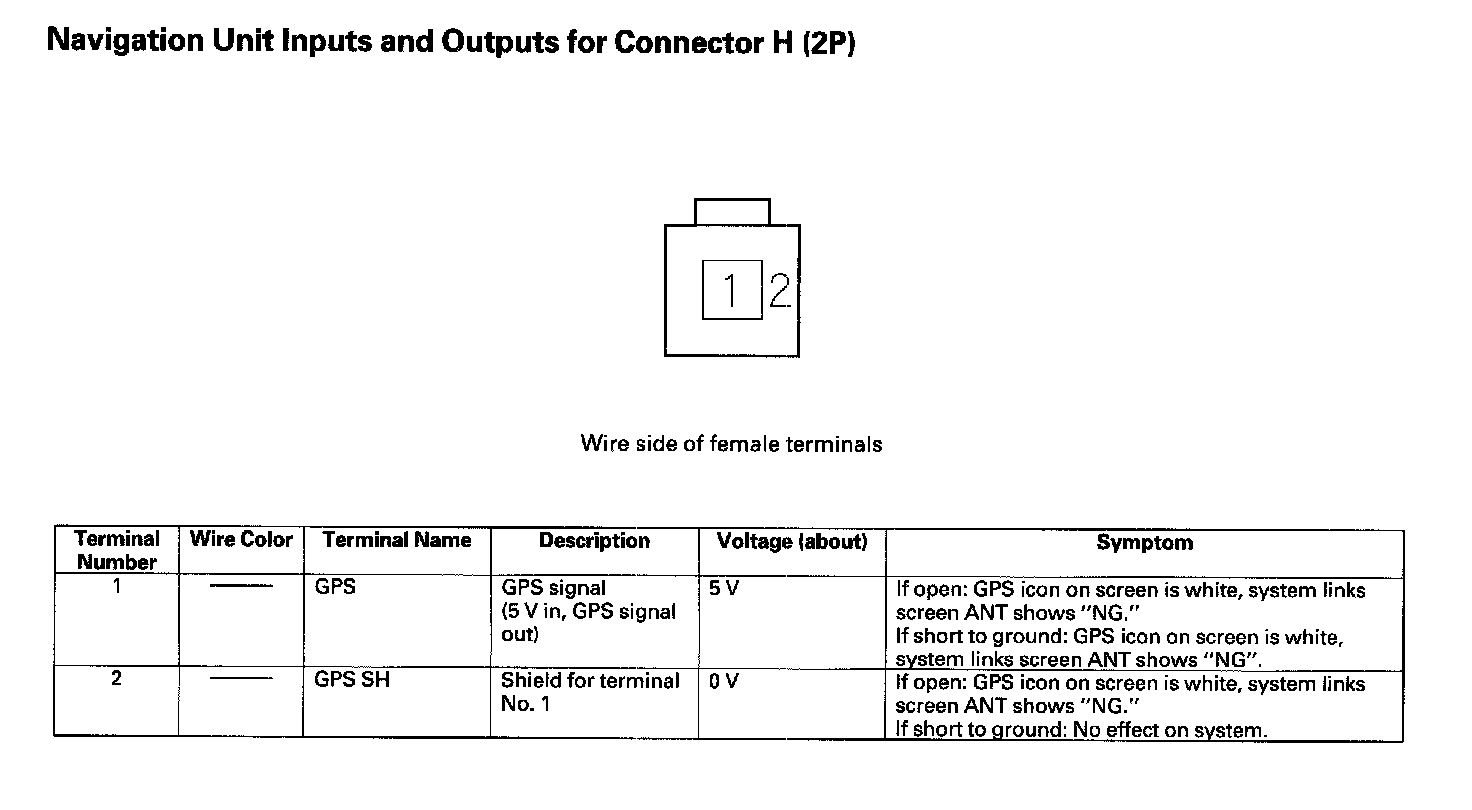

Navigation Unit Inputs And Outputs For Connector H (2P):
