Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 80

View 76-100: 80

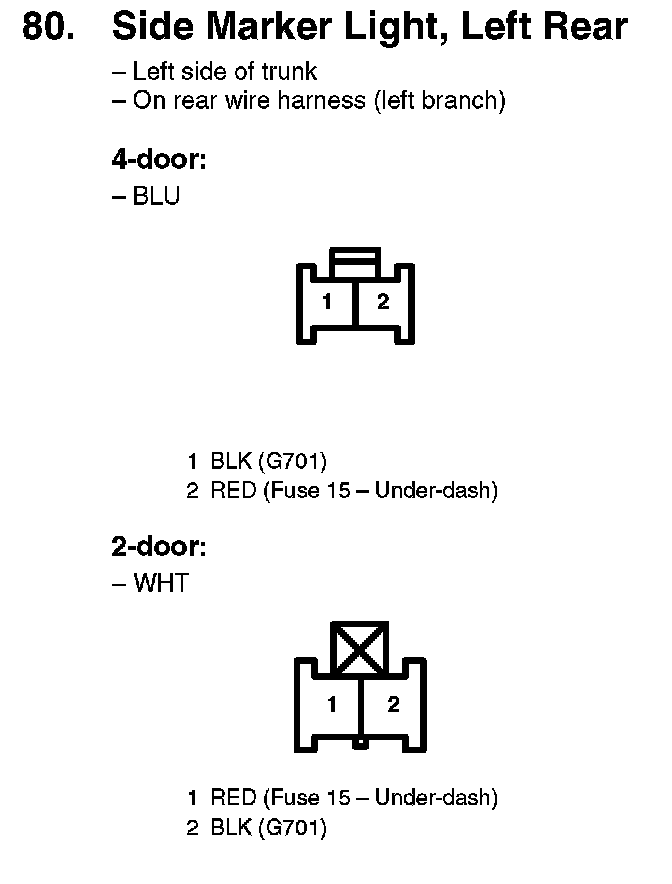

80. Side Marker Light, Left Rear:



81. Side Marker Light, Right Rear:

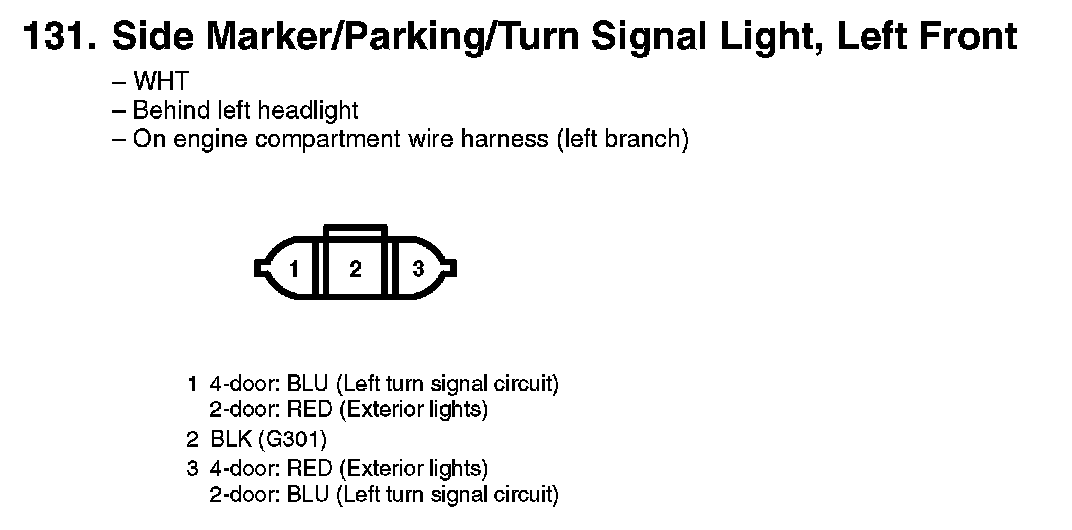

131. Side Marker/Parking/Turn Signal Light, Left Front:

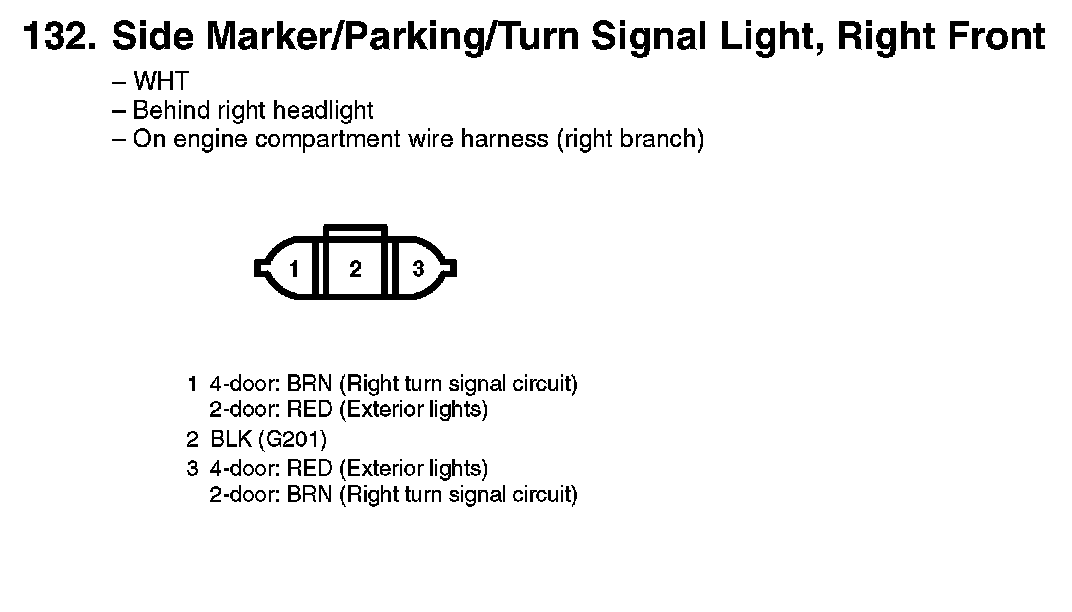

132. Side Marker/Parking/Turn Signal Light, Right Front:
