View 251-267: 253

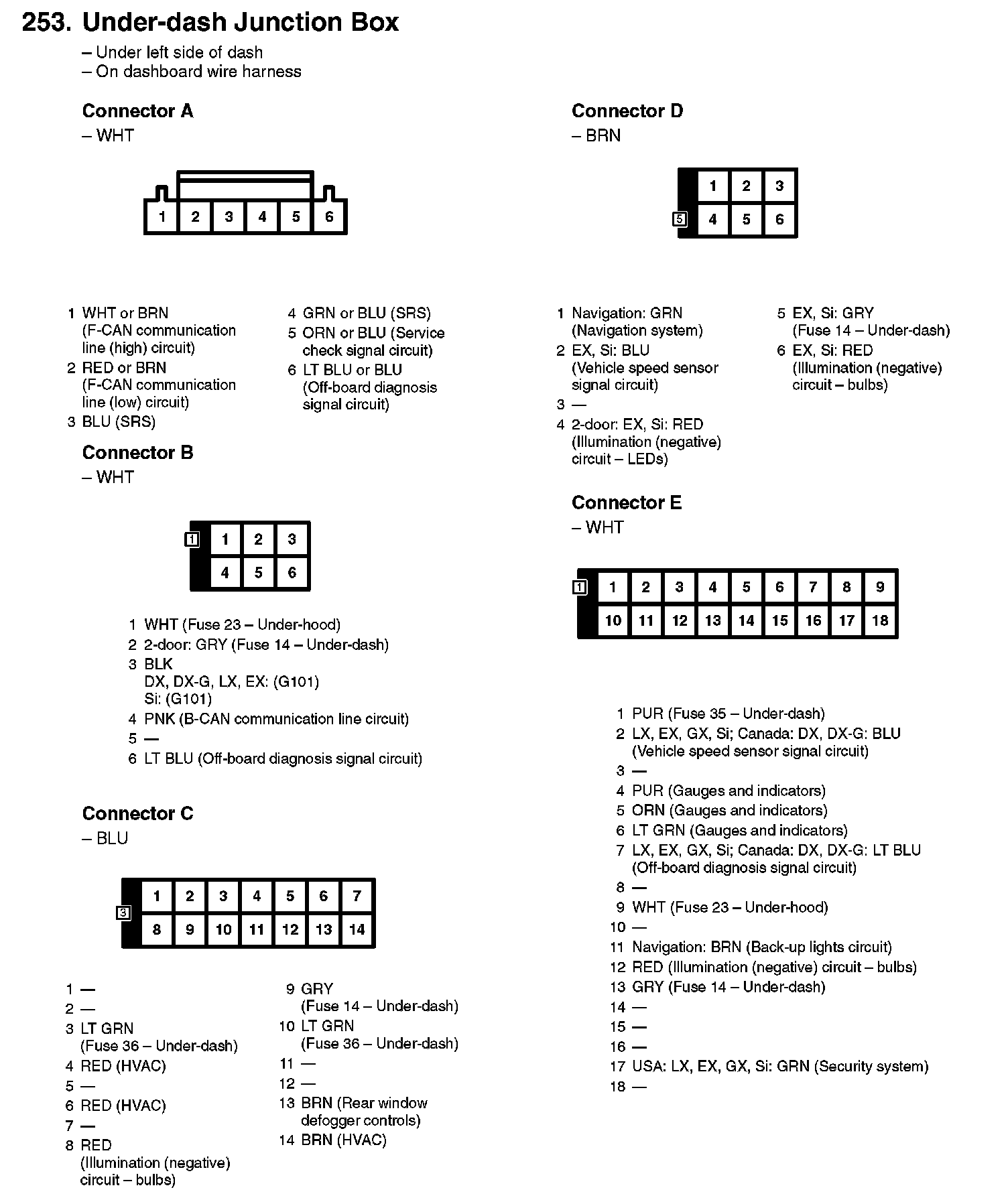

253. Under-dash Junction Box:

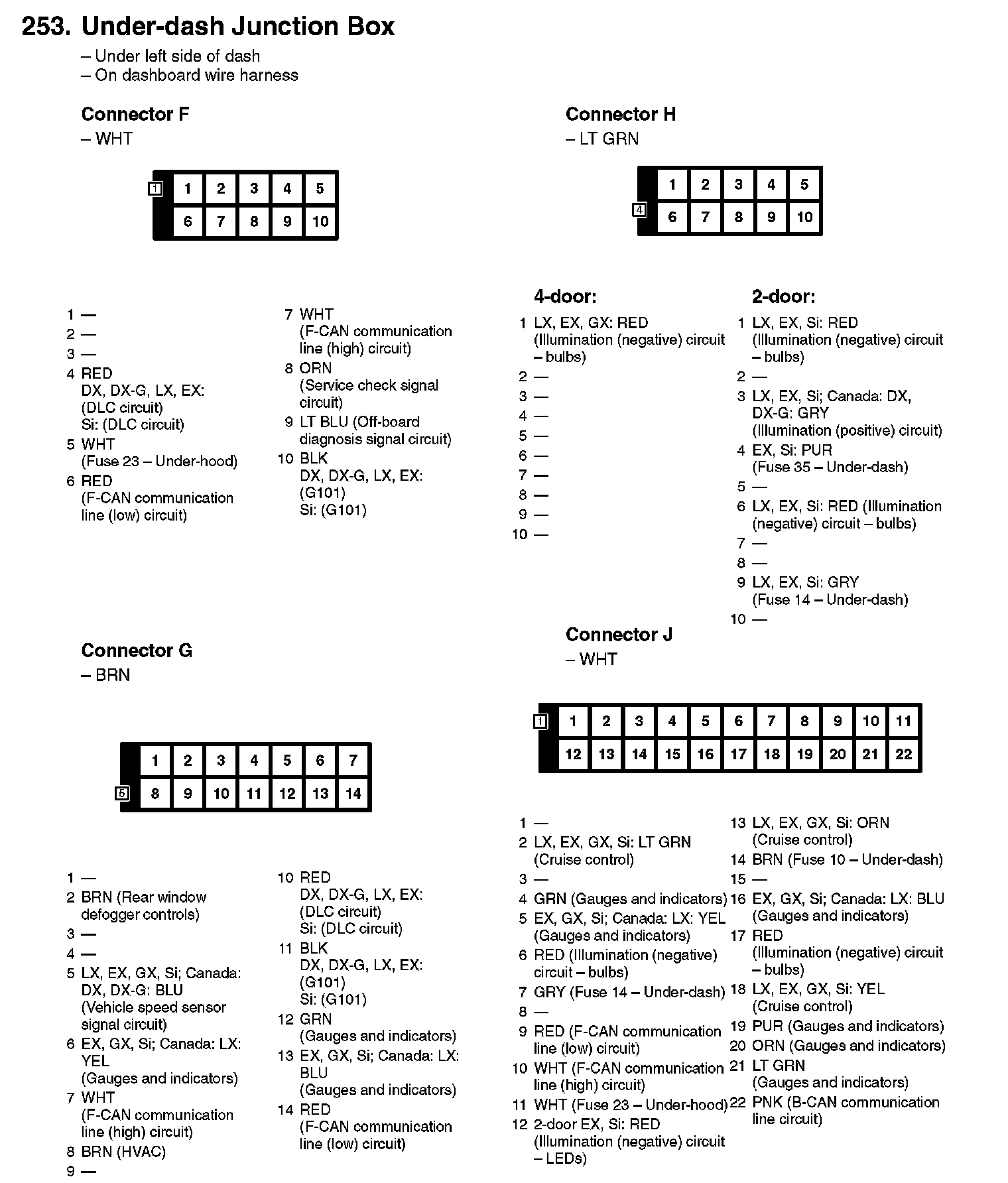

253. Under-dash Junction Box:



253. Under-dash Junction Box:
