Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 227

View 226-250: 227

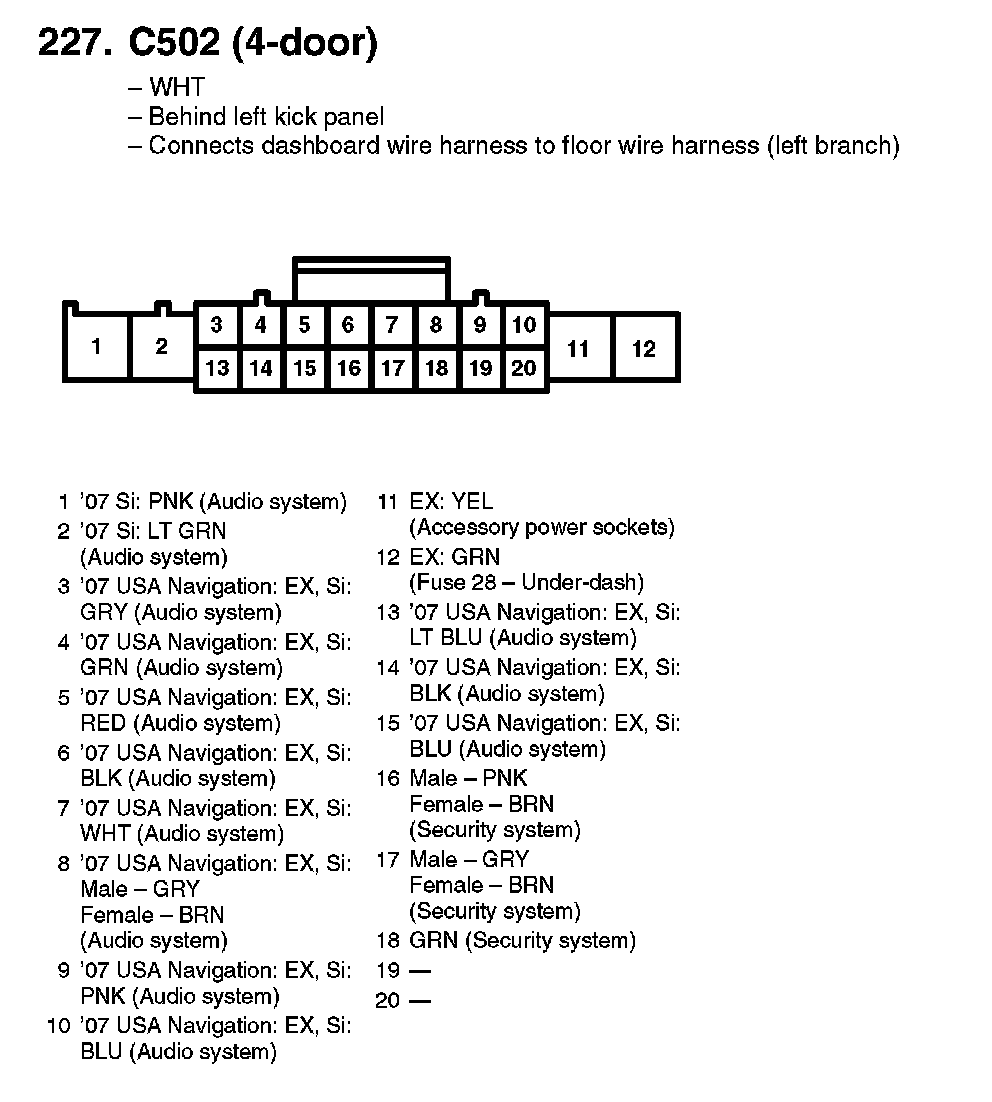

227. C502 (4-door):
