Power Door Lock Switch: Diagrams

199. Door Lock Actuator/Knob Switch, Driver's (DX-G, LX, EX, GX, Si):

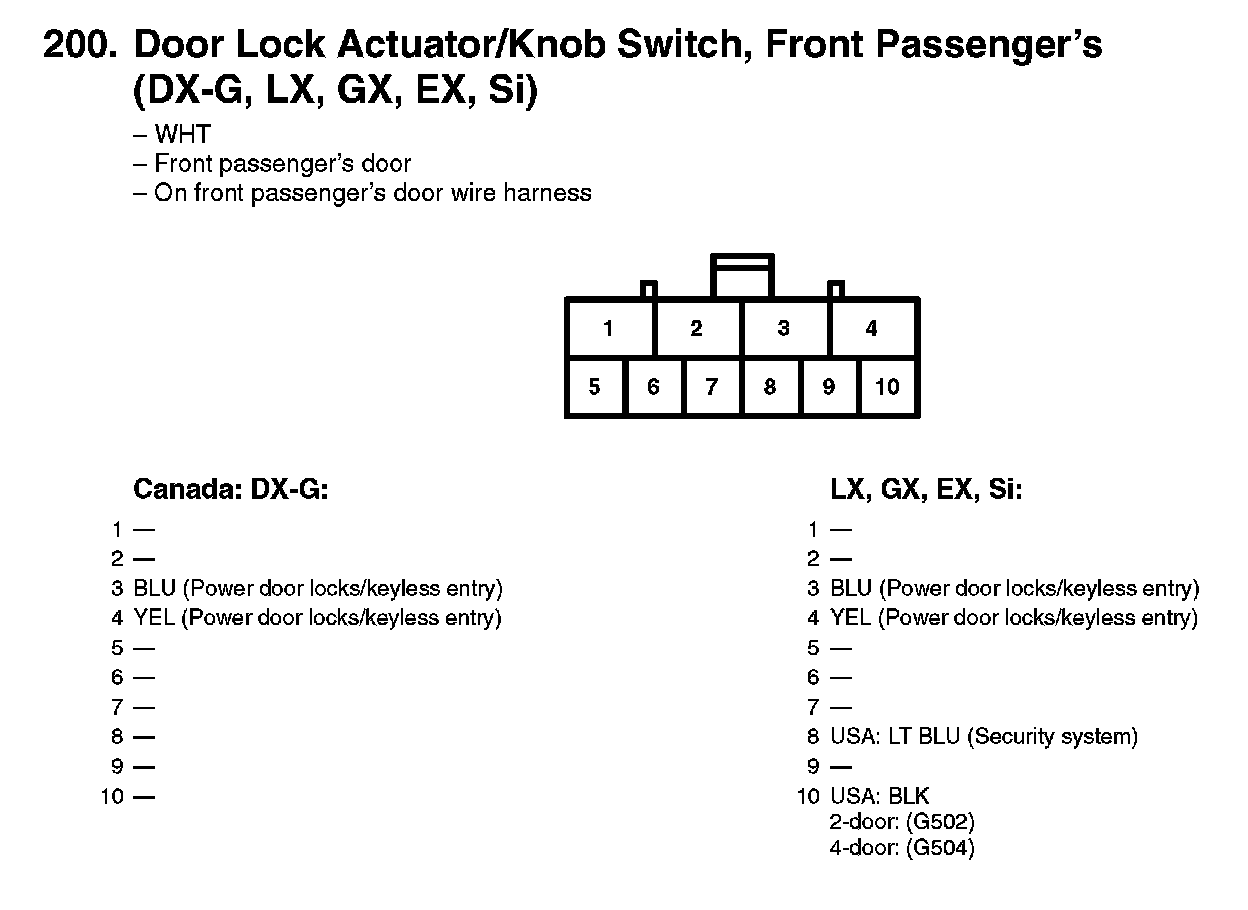

200. Door Lock Actuator/Knob Switch, Front Passenger's (DX-G, LX, GX, EX, Si):

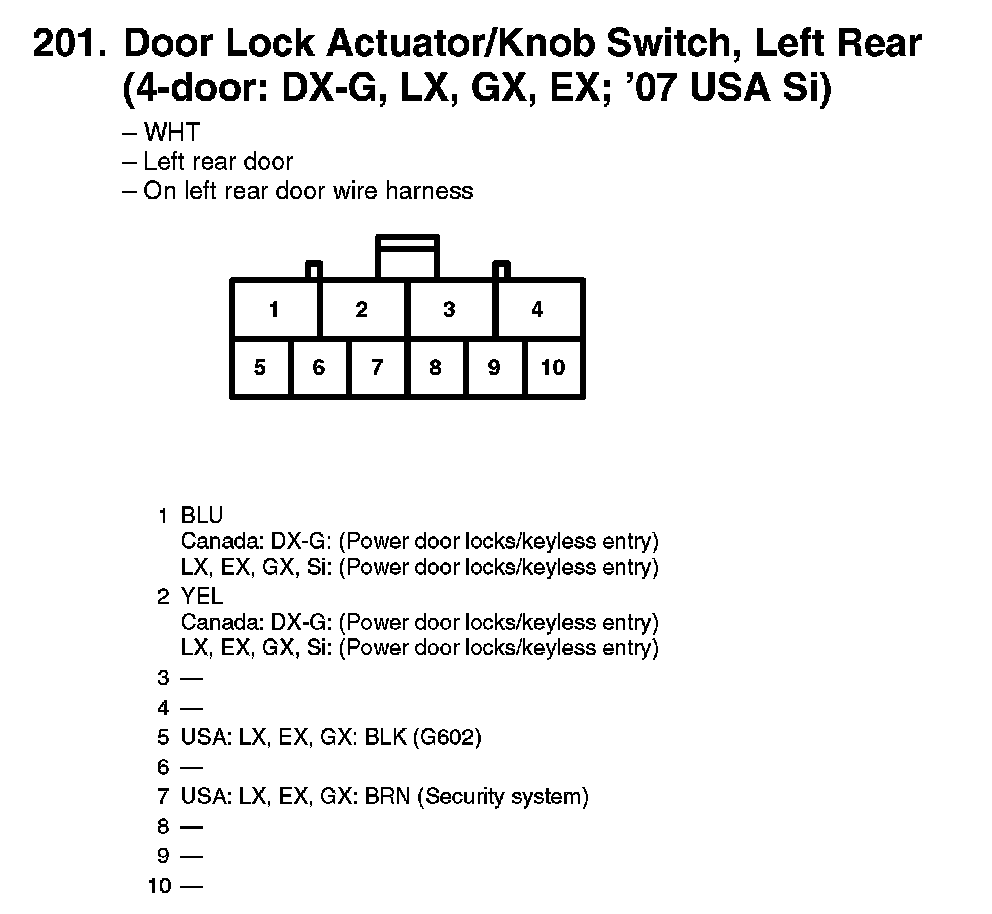

201. Door Lock Actuator/Knob Switch, Left Rear (4-door: DX-G, LX, GX, EX; '07 USA Si):

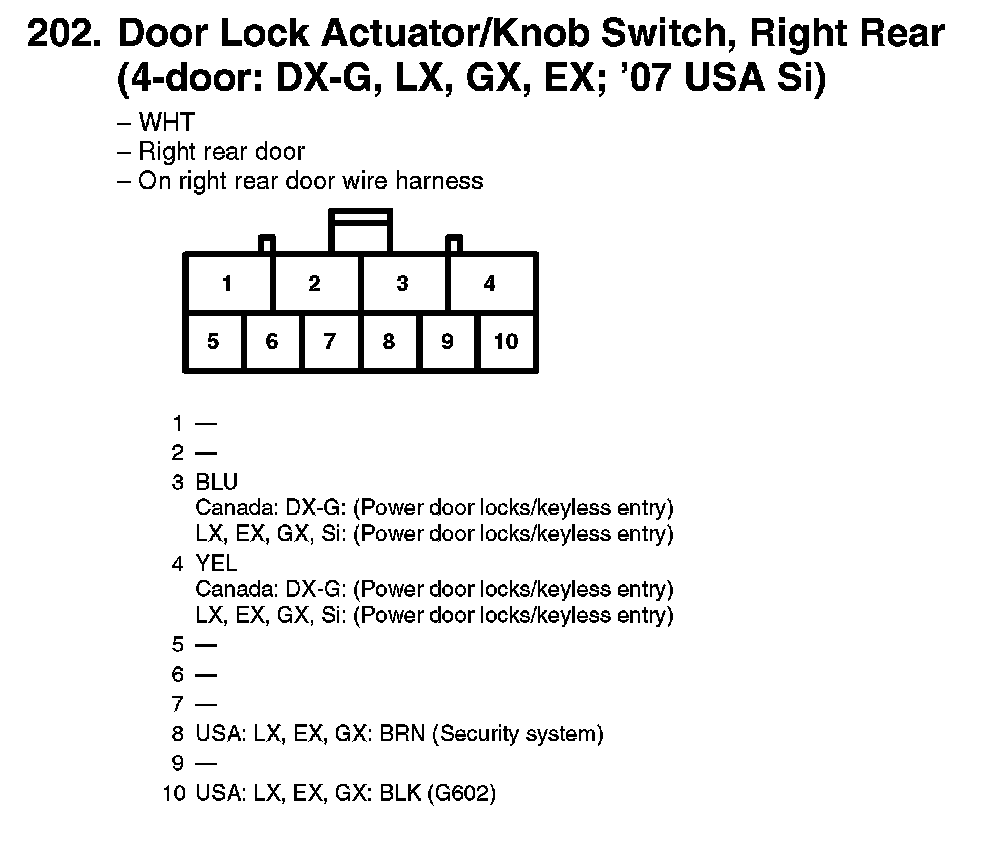

202. Door Lock Actuator/Knob Switch, Right Rear (4-door: DX-G, LX, GX, EX; '07 USA Si):
