Center Pocket

Center Pocket Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

1. Disassemble the dashboard/steering hanger beam.

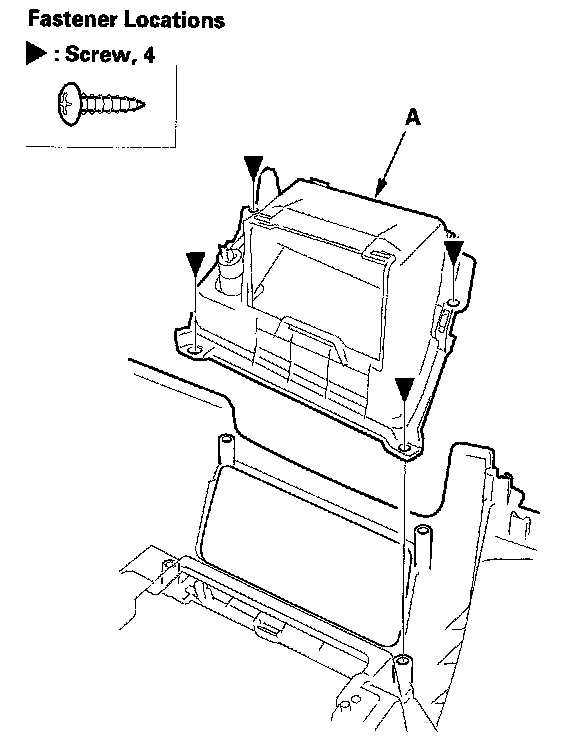

2. Remove the screws, then remove the center pocket (A).
3. Install the center pocket in the reverse order of removal.
