Rear Floor Upper Cross-Member Gusset Replacement

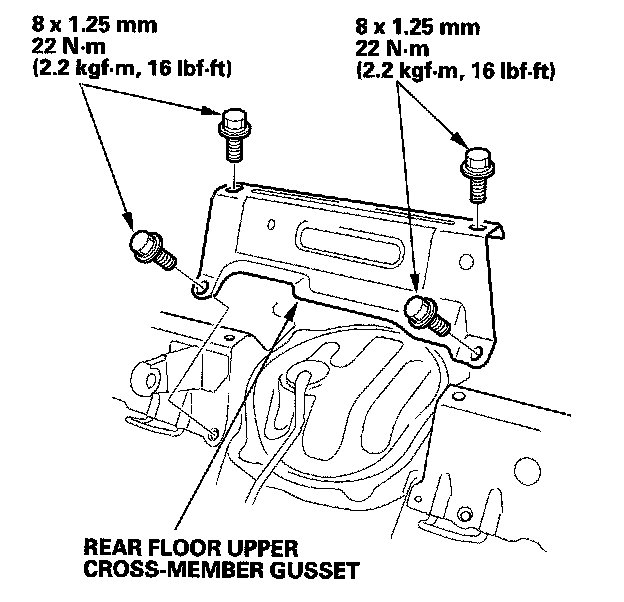

Rear Floor Upper Cross-member Gusset Replacement




Rear Floor Upper Cross-member Gusset Torque

NOTE: Take care not to scratch body.
