Audio Remote Switch Test
Audio Remote Switch Test1. Remove the driver's airbag assembly.

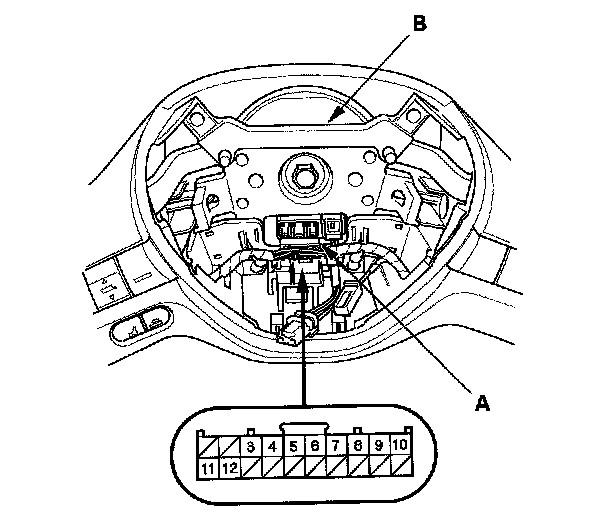

2. Remove the 20P connector (A) from the cable reel (B).

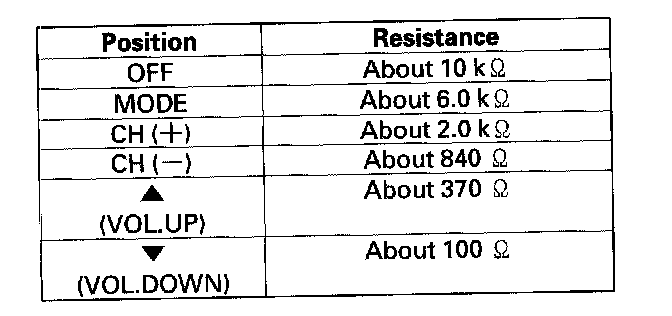

3. Measure the resistance between the No.9 and No. 10 terminals in each switch position according to the table.
4. If the resistance is not as specified, replace the audio remote switch.

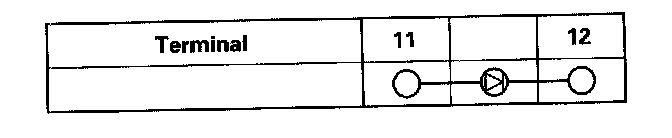

5. Use a diode tester between the terminals in each switch position according to the table.
6. If the diode test is not as specified, replace the switch.
