Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Power Steering Pressure Switch >> Locations

Power Steering Pressure Switch: Locations

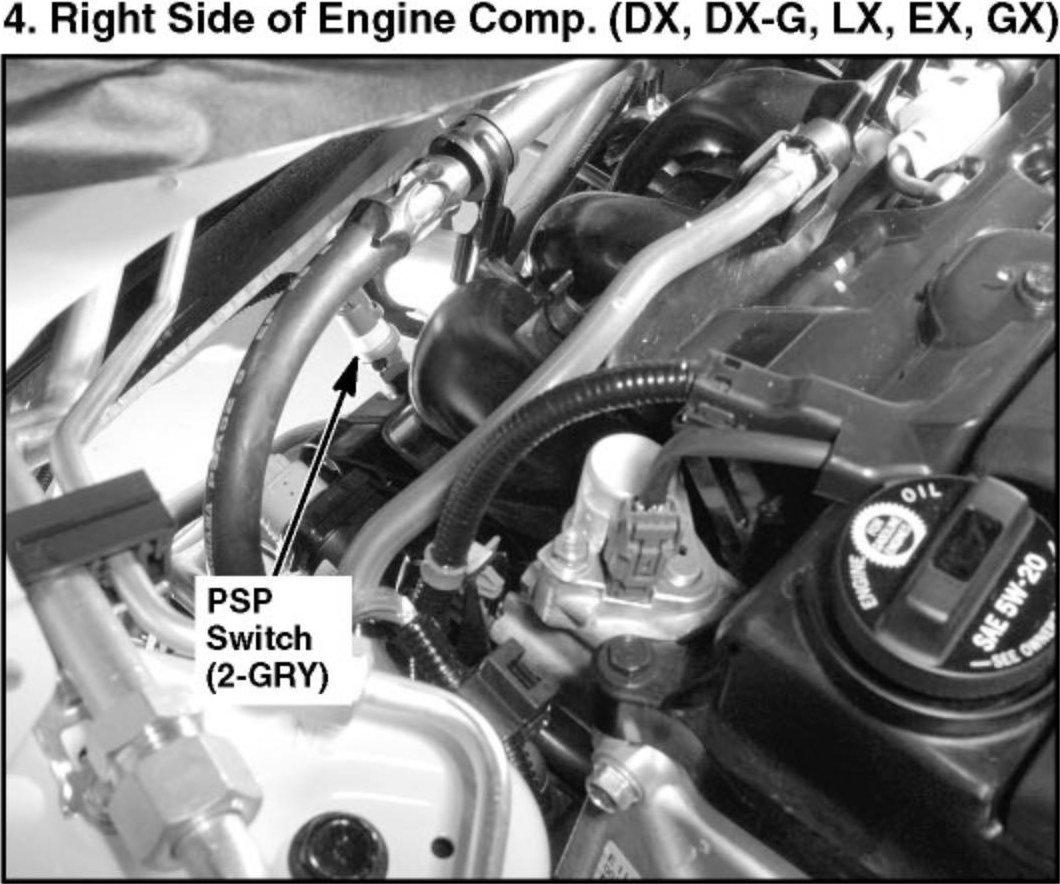

4. Right Side of Engine Comp. (DX, DX-G, LX, EX, GX):

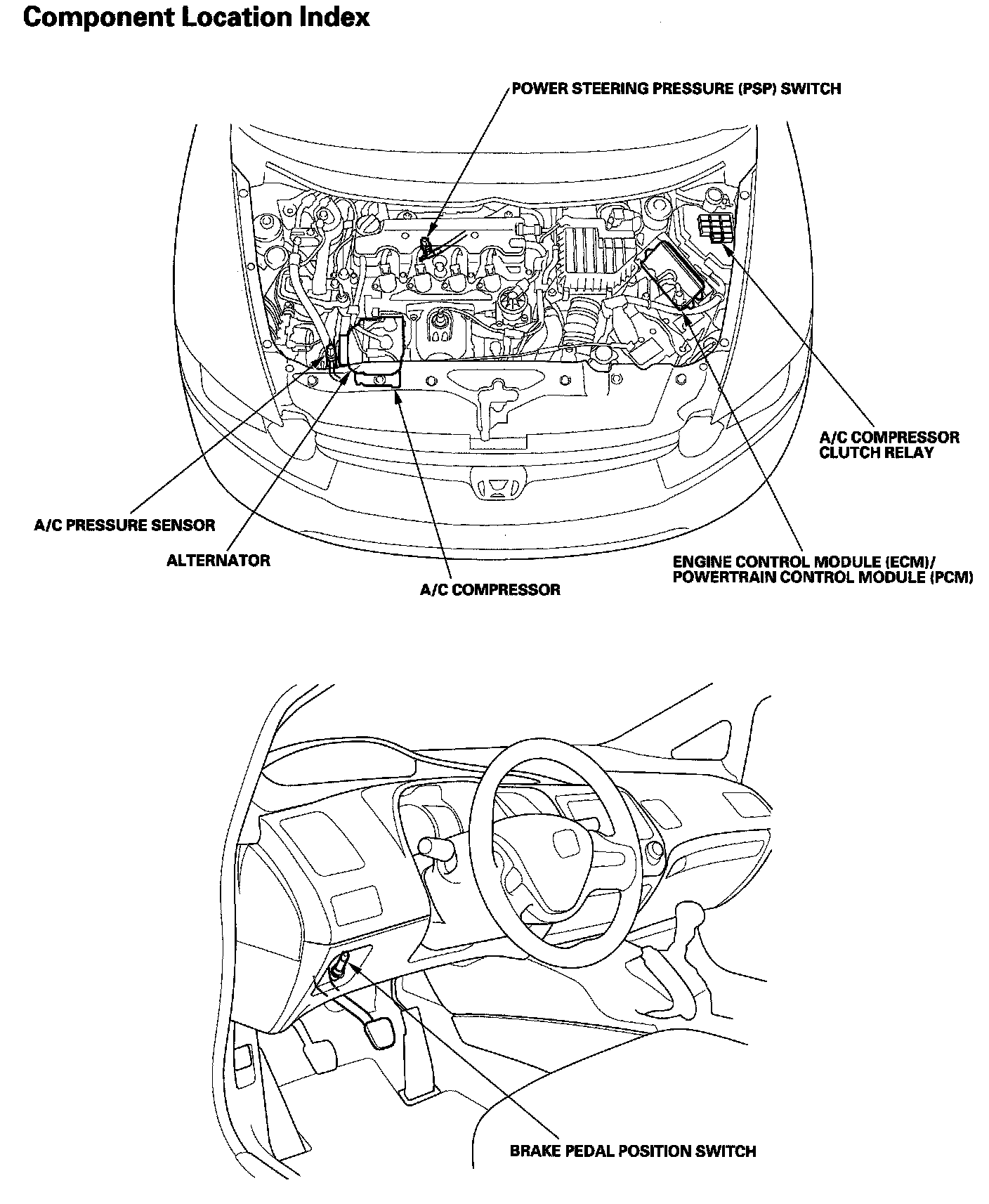

Idle Control System Component Location Index:
