Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations >> Connector Locations

Connector Locations

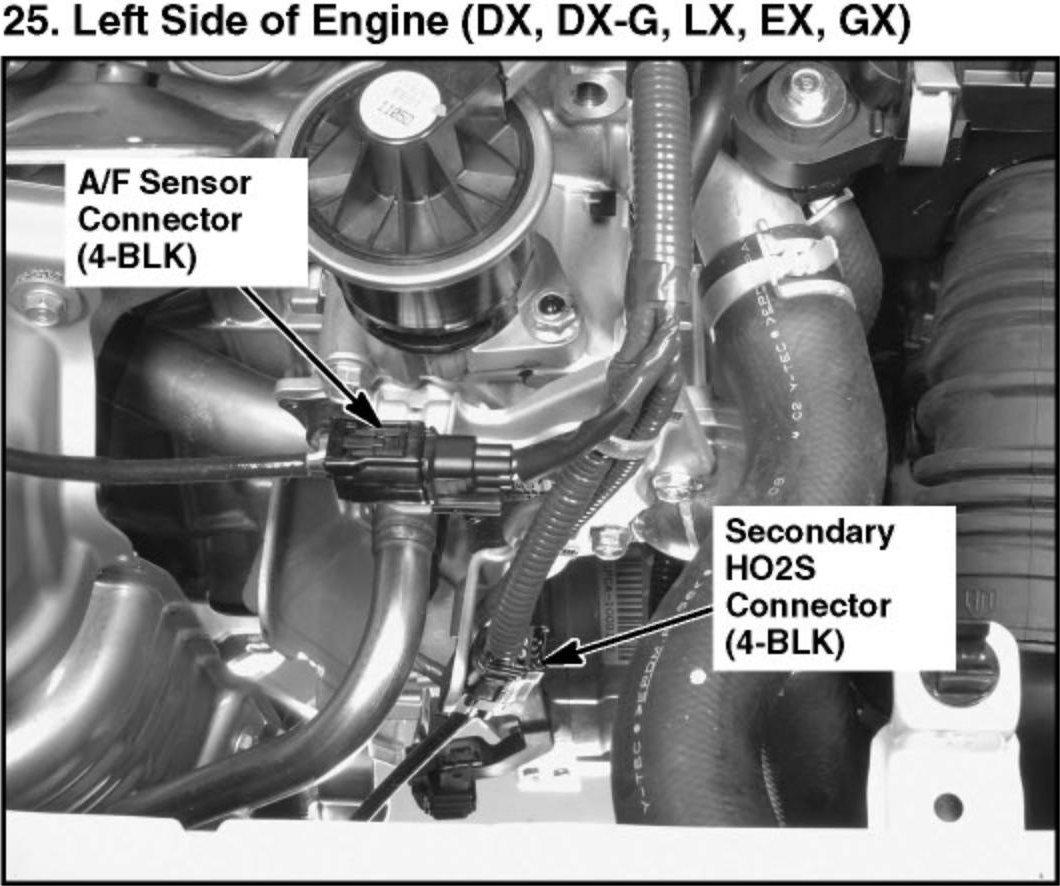

25. Left Side of Engine (DX, DX-G, LX, EX, GX):
