Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Locations

Fuel Filter: Locations

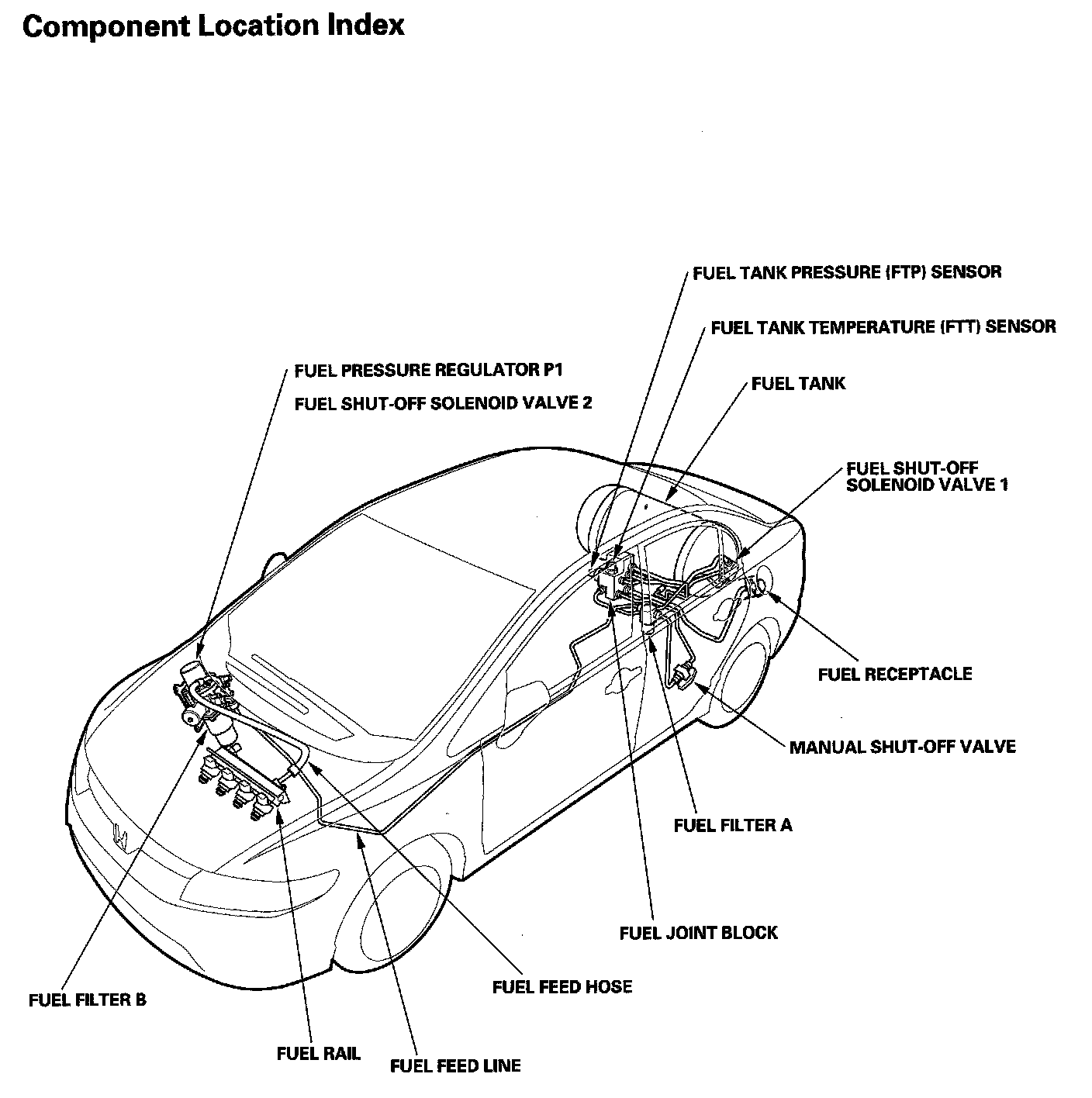

Fuel Supply System Component Location Index:
