Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold

Intake Manifold

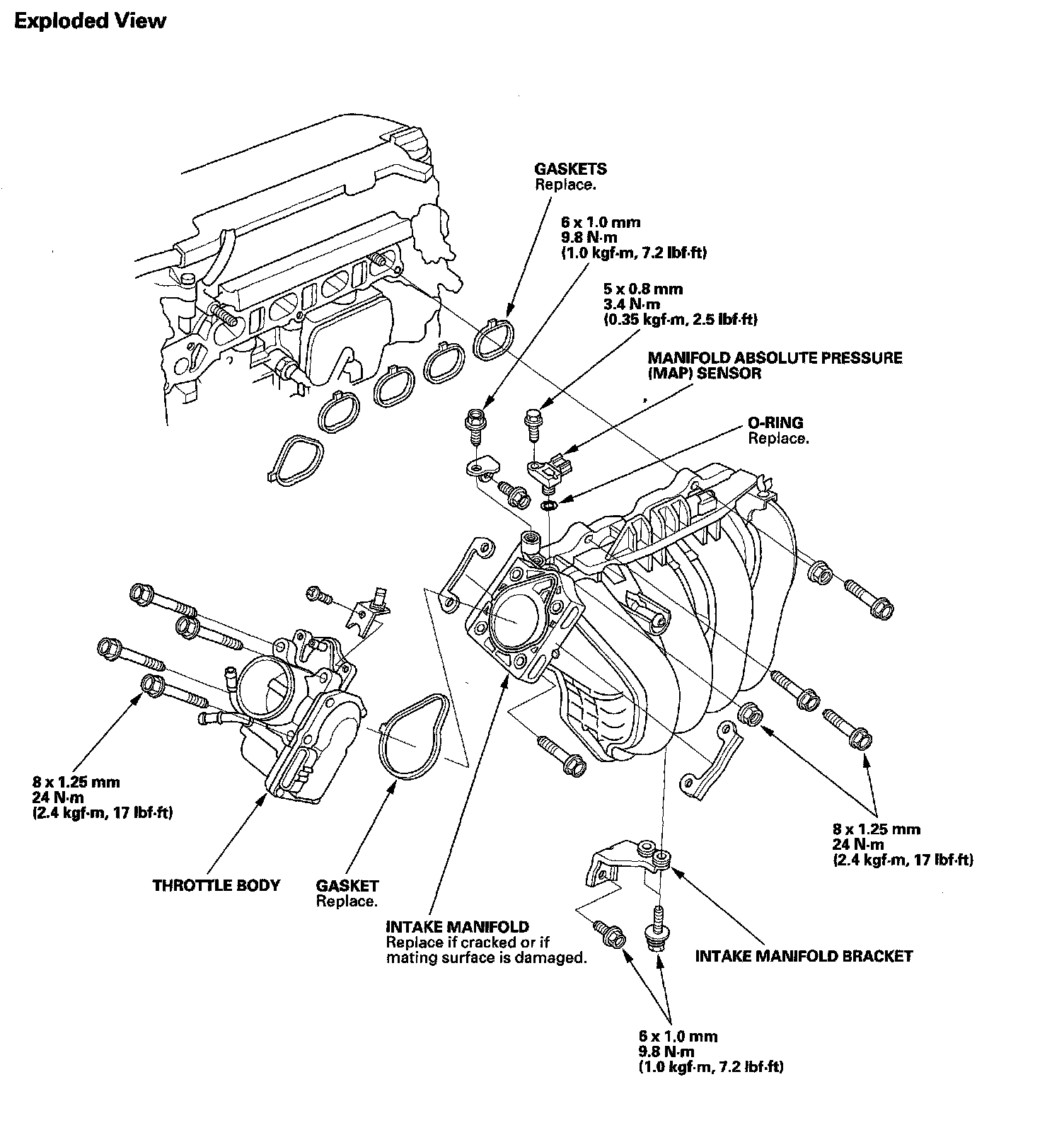

Exploded View

Intake Manifold And Exhaust System:
