Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch

Trunk / Liftgate Switch

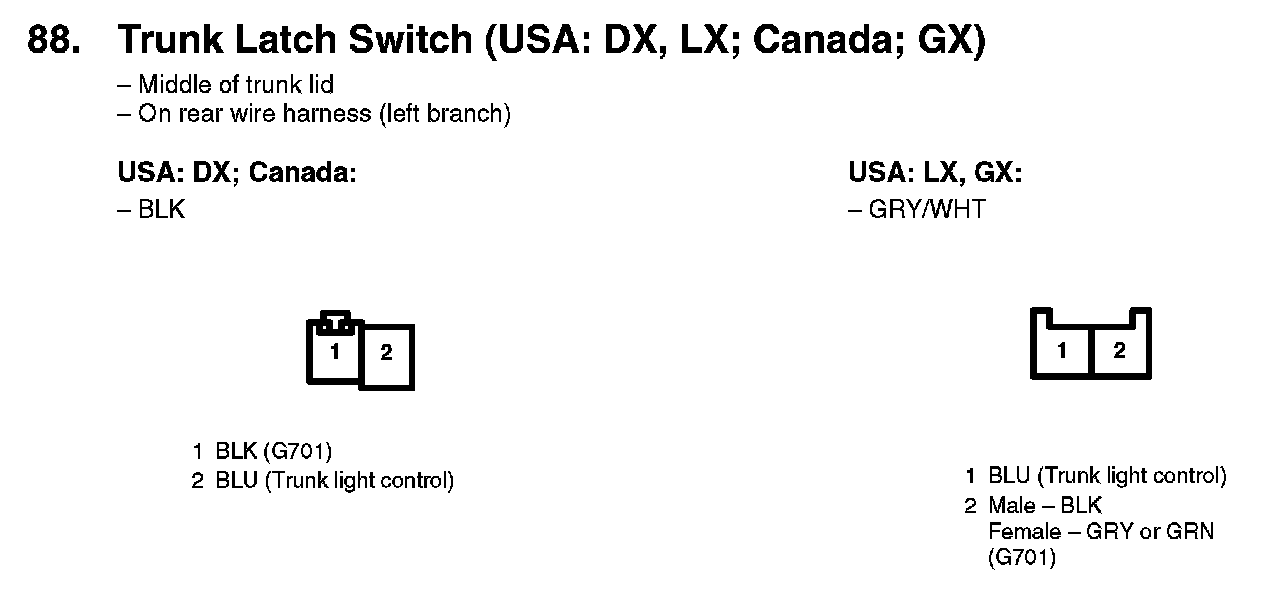

88. Trunk Latch Switch (USA: DX, LX; Canada; GX):
