Home
>>
Honda
>>
2007
>>
Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
Oxygen Sensor

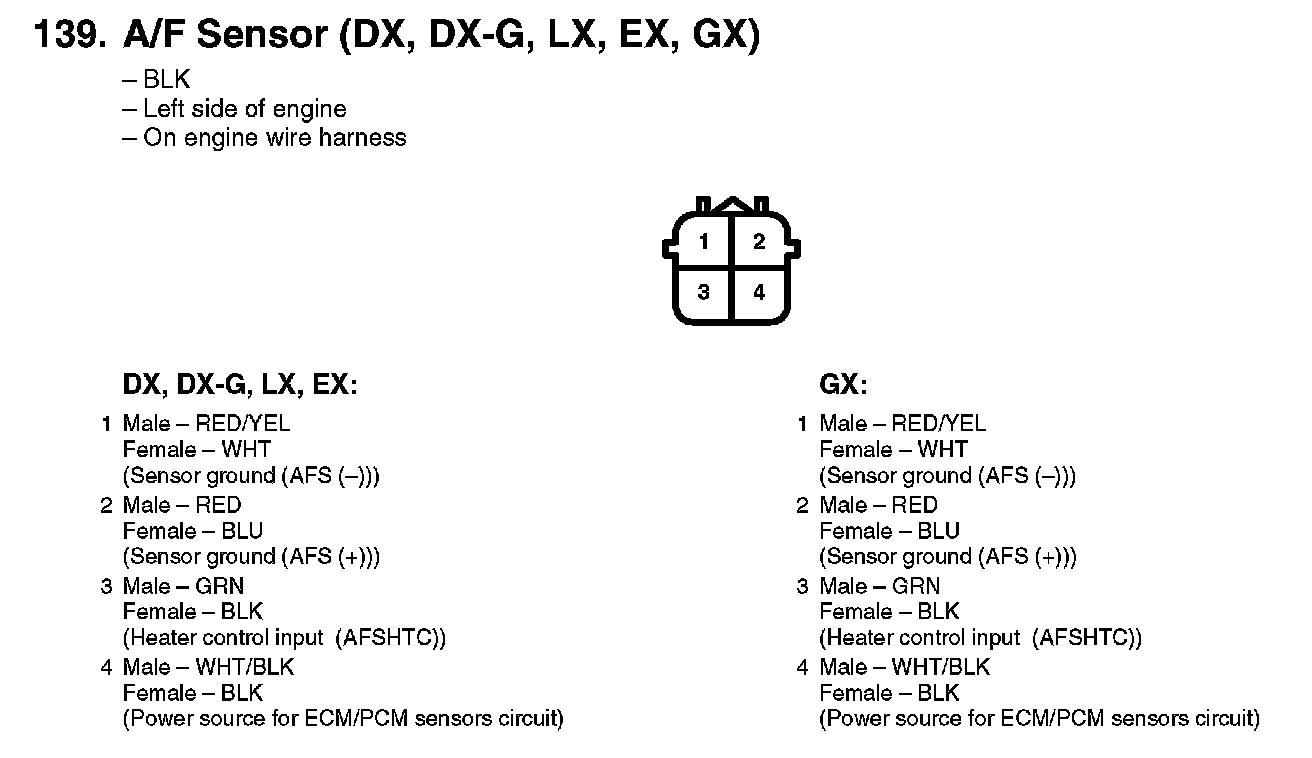

139. A/F Sensor (DX, DX-G, LX, EX, GX):

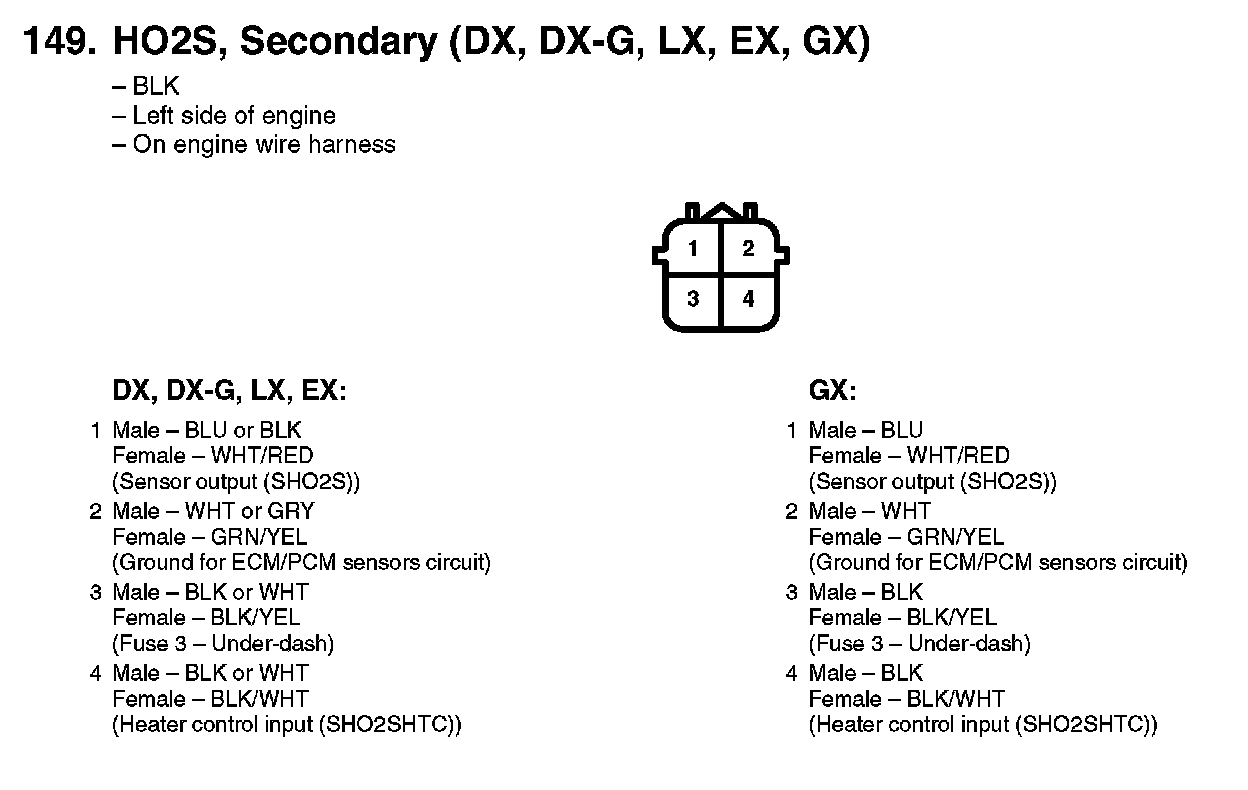

149. HO2S, Secondary (DX, DX-G, LX, EX, GX):
