Fuel Pressure Regulator

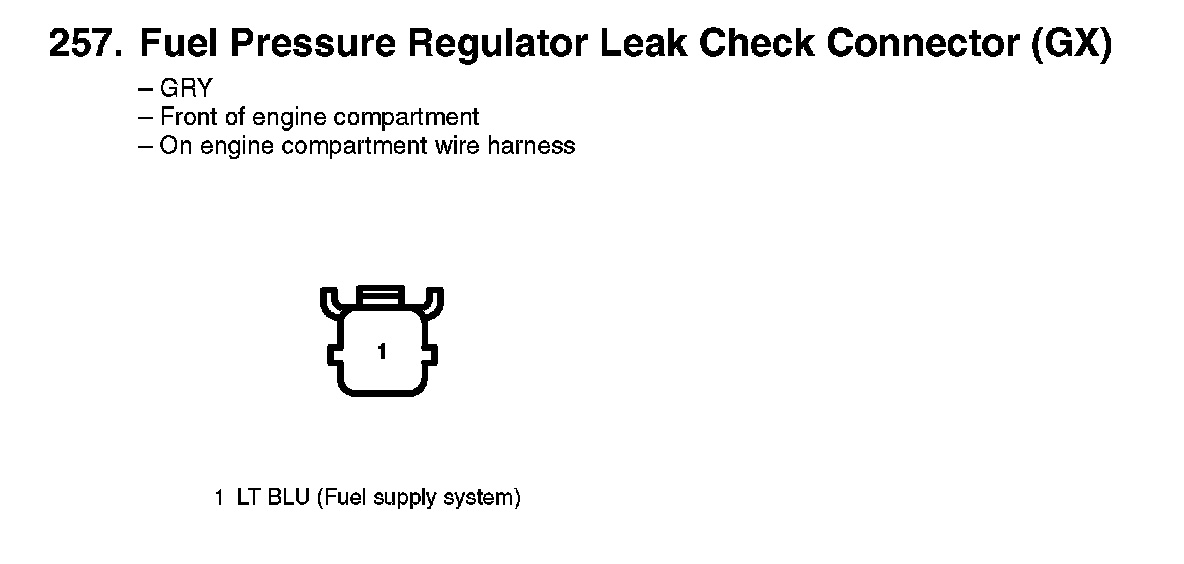

257. Fuel Pressure Regulator Leak Check Connector (GX):

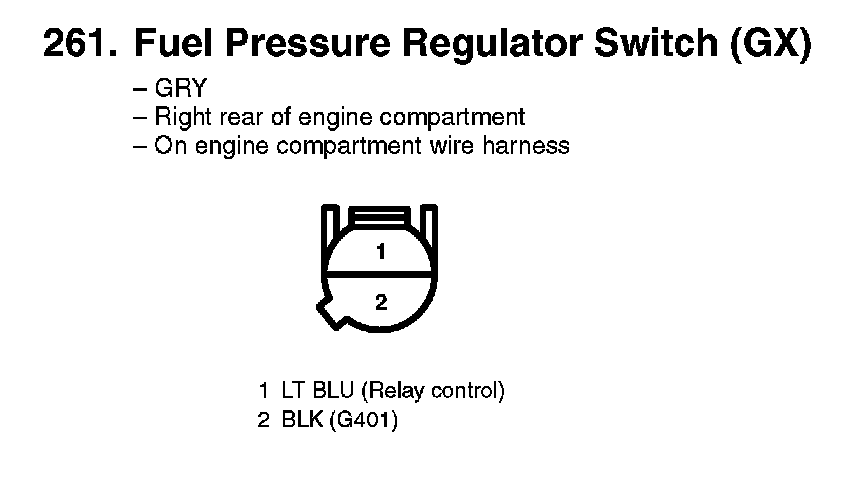

261. Fuel Pressure Regulator Switch (GX):
