Civic L4-1.8L CNG
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

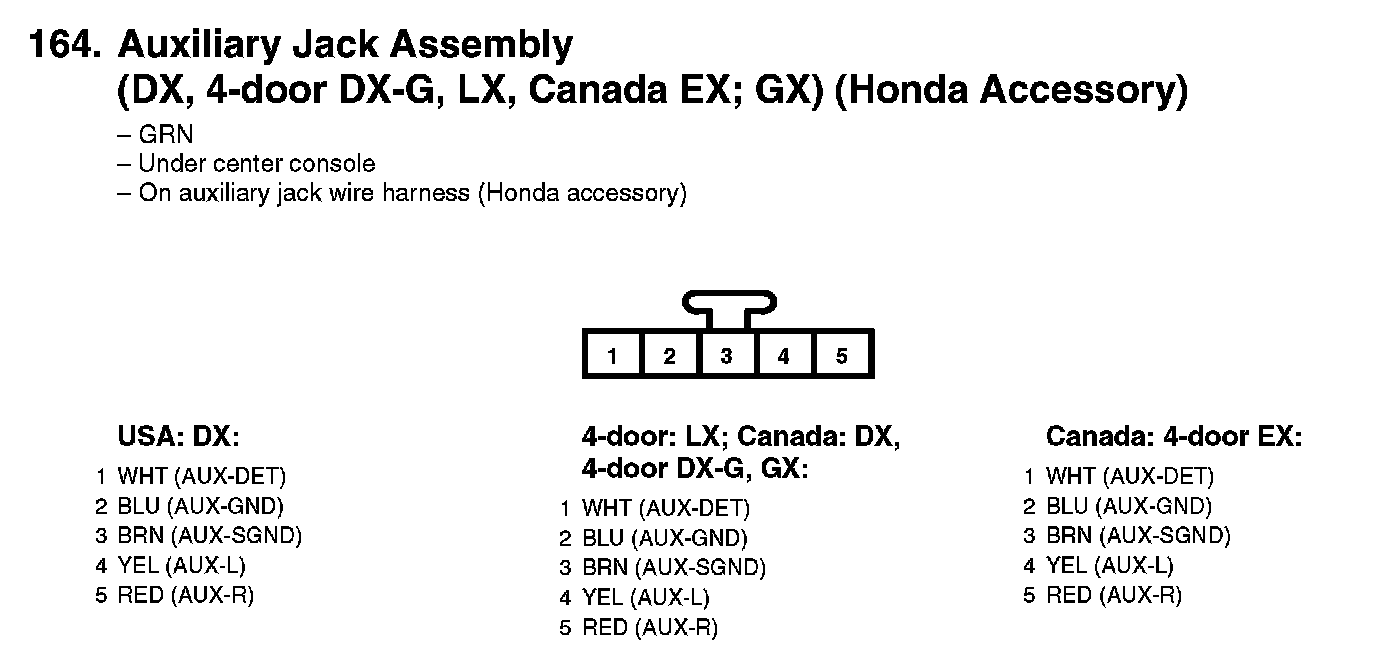

164. Auxiliary Jack Assembly (DX, 4-door DX-G, LX, Canada EX; GX) (Honda Accessory):
