Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations

Power Window Motor: Locations

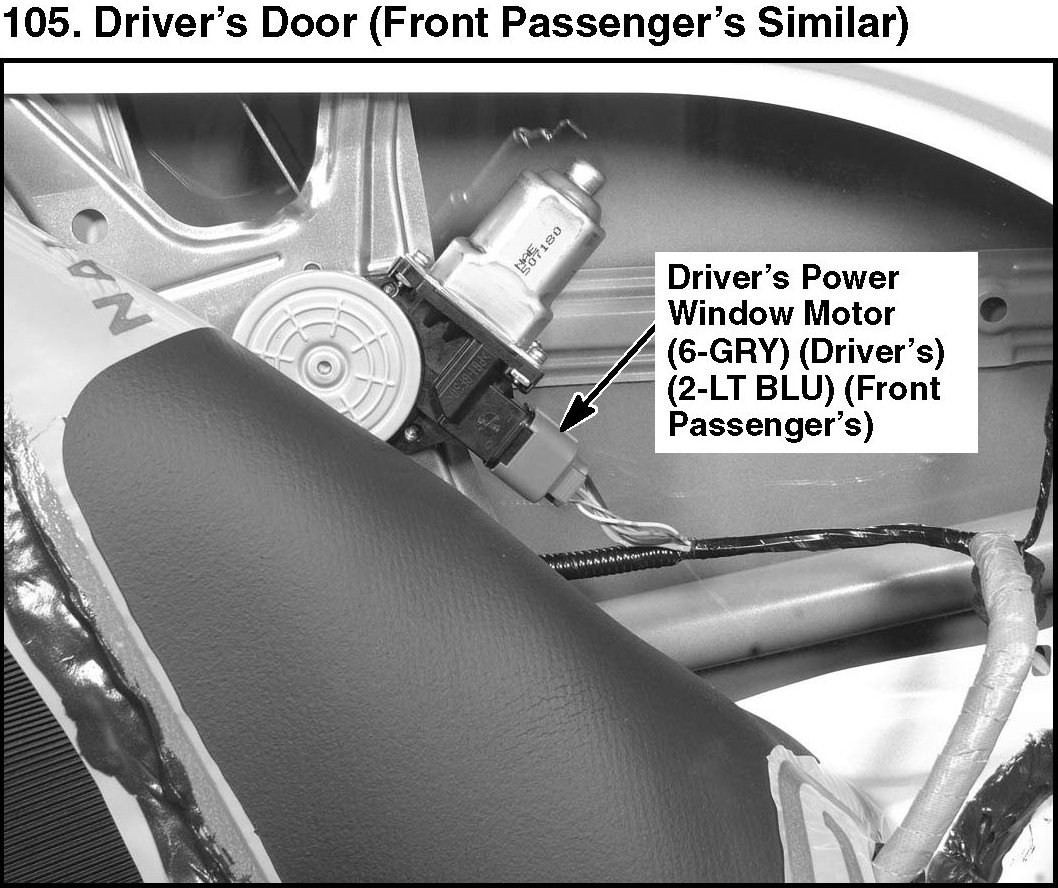

105. Driver's Door (Front Passenger's Similar):

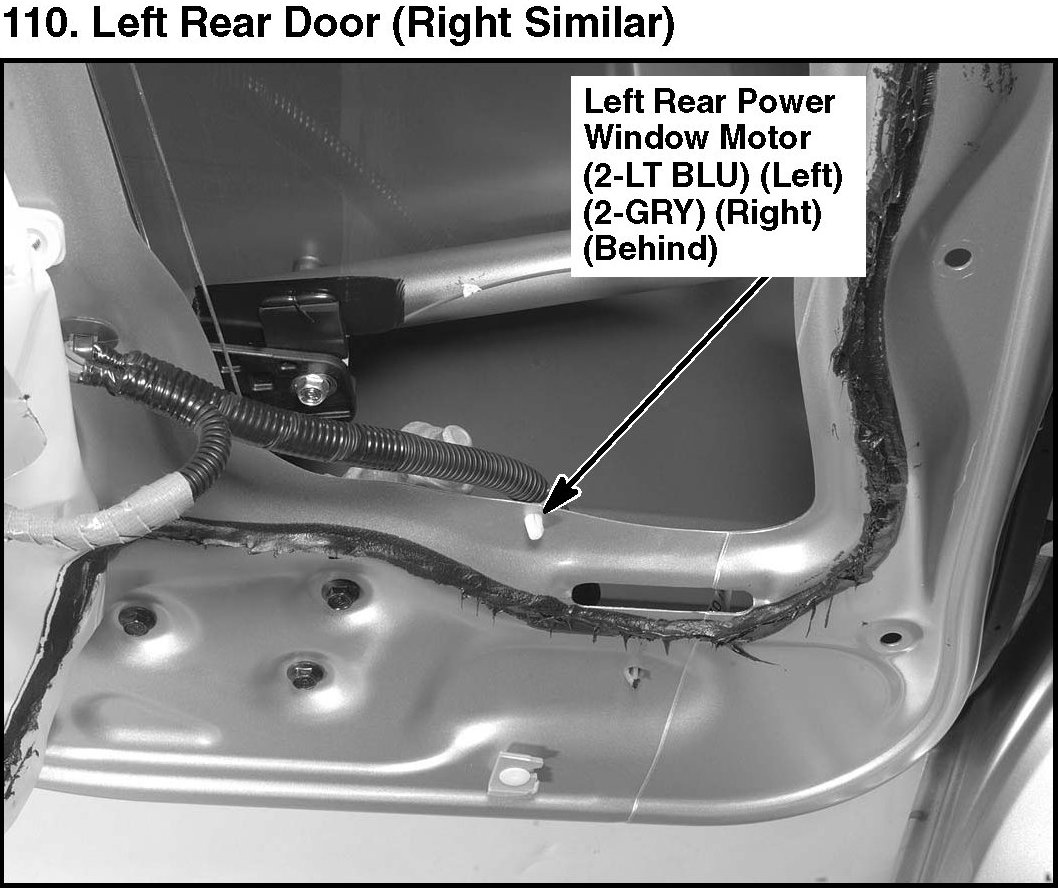

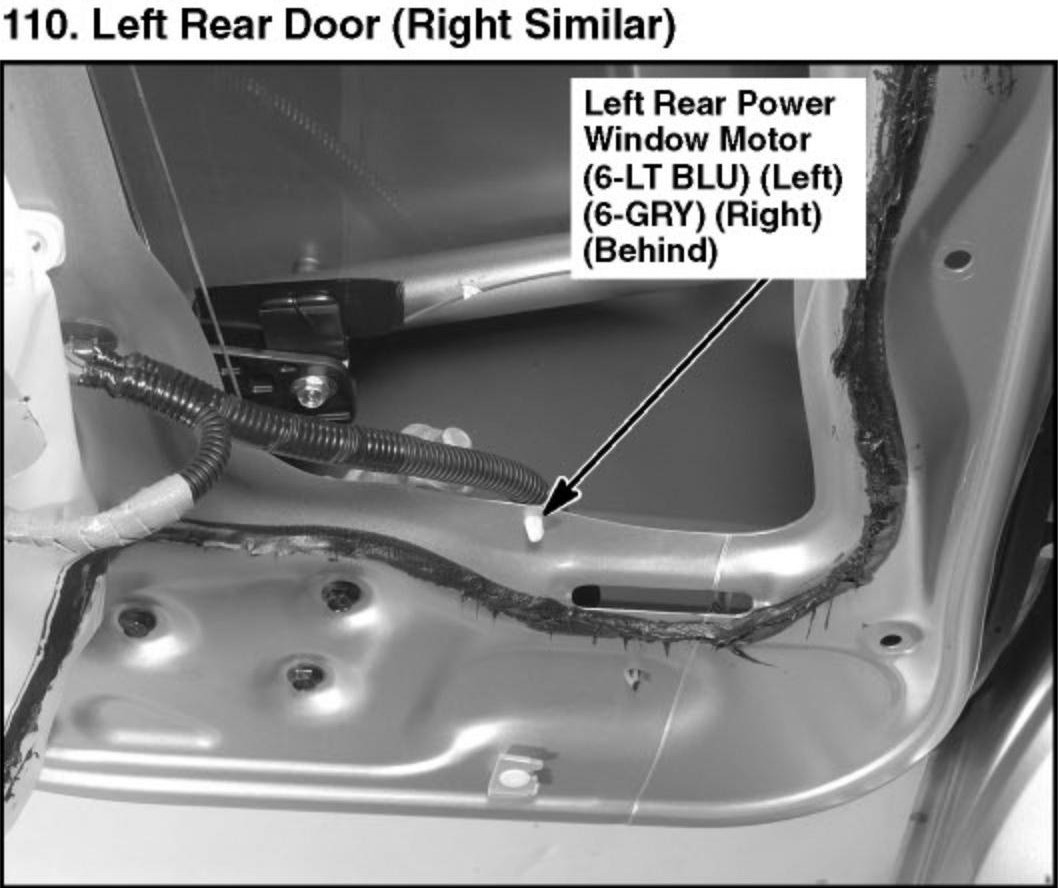

110. Left Rear Door (Right Similar):



Power Windows Component Location Index:



105. Driver's Door (Front Passenger's Similar):



110. Left Rear Door (Right Similar):
