Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Steering Control Module >> Locations

Steering Control Module: Locations

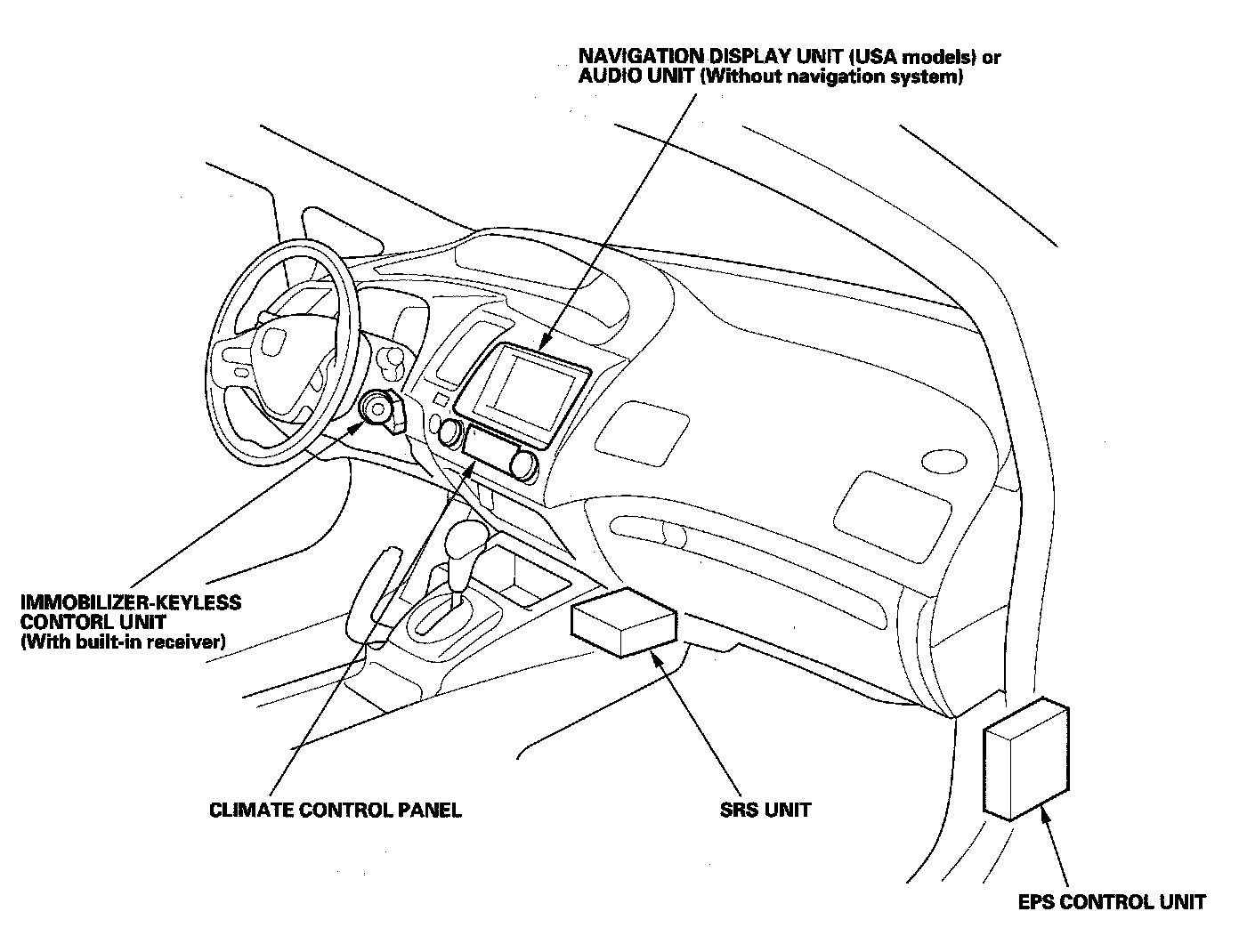

Relay and Control Unit Locations Dashboard:

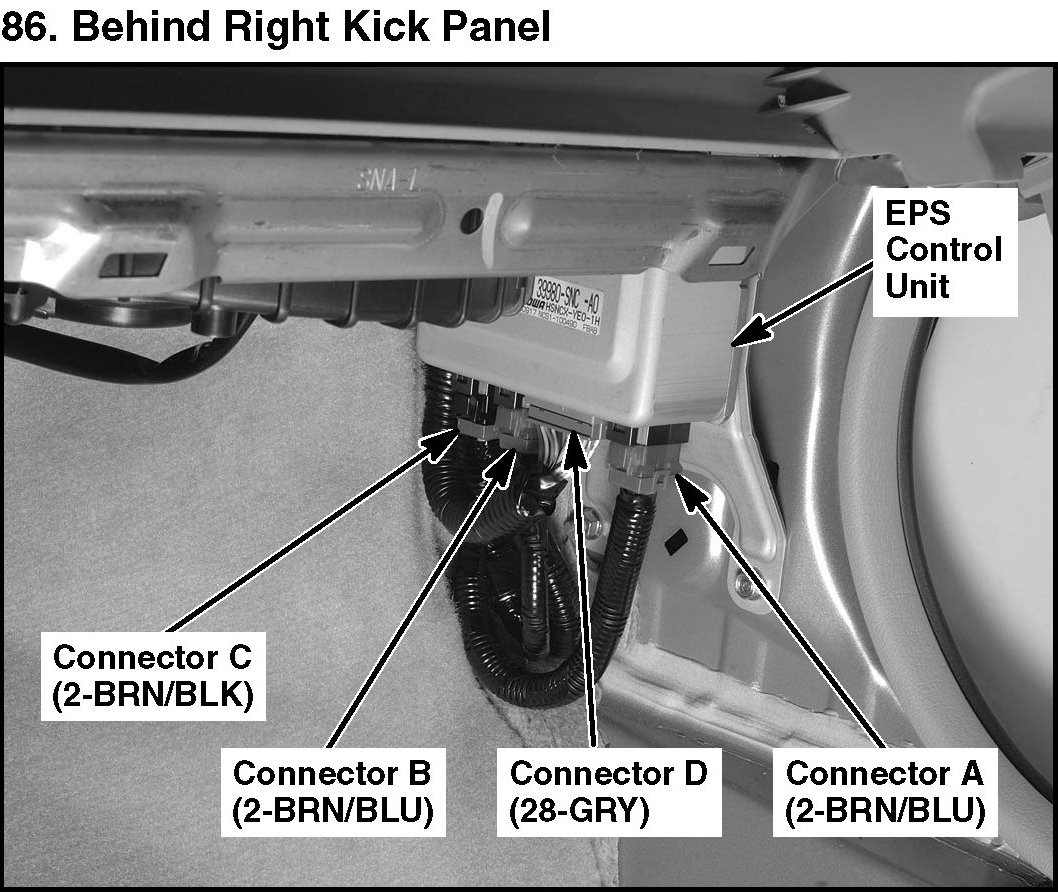

86. Behind Right Kick Panel:
