Data Link Connector: Locations

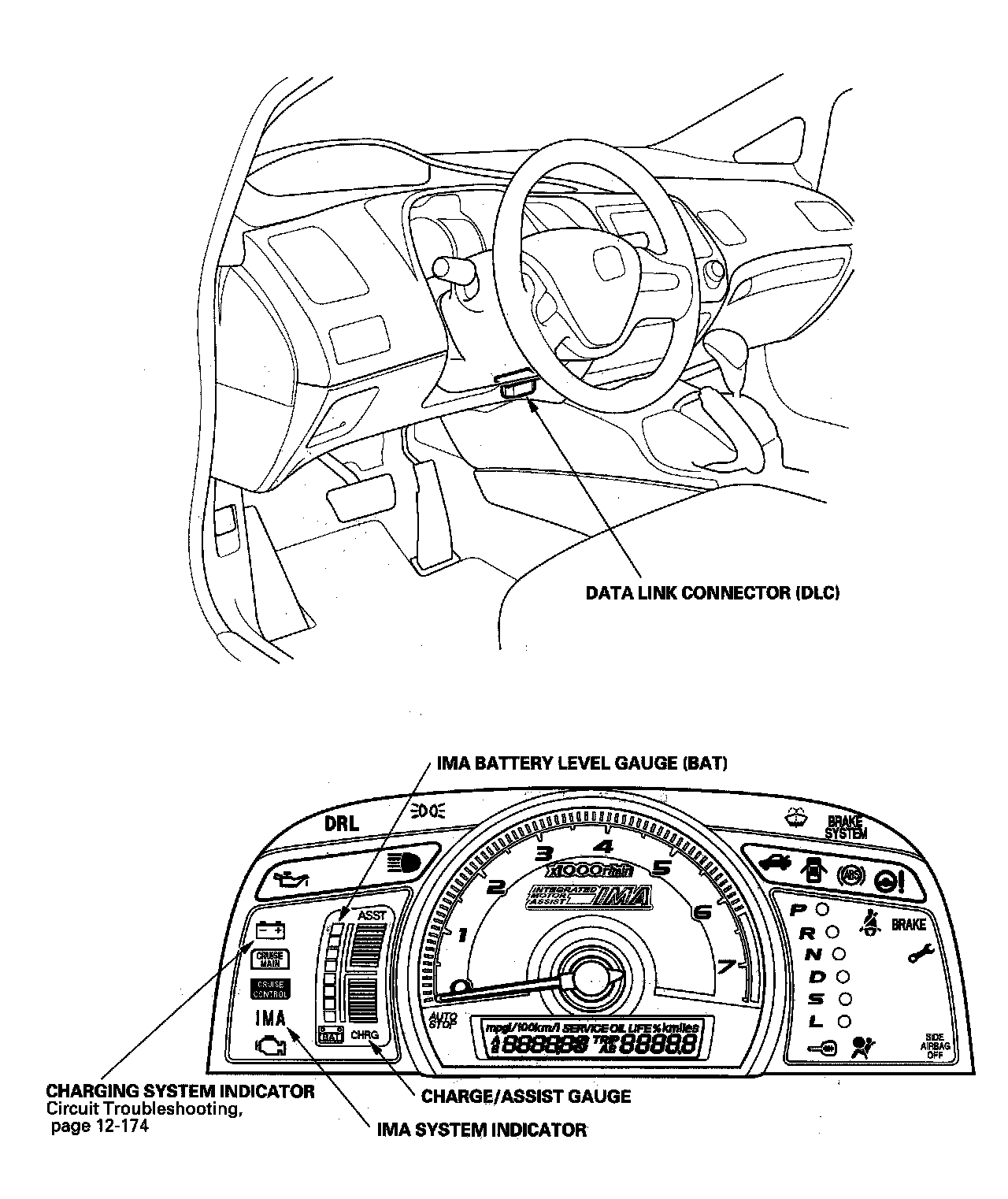

IMA System Component Location Index:

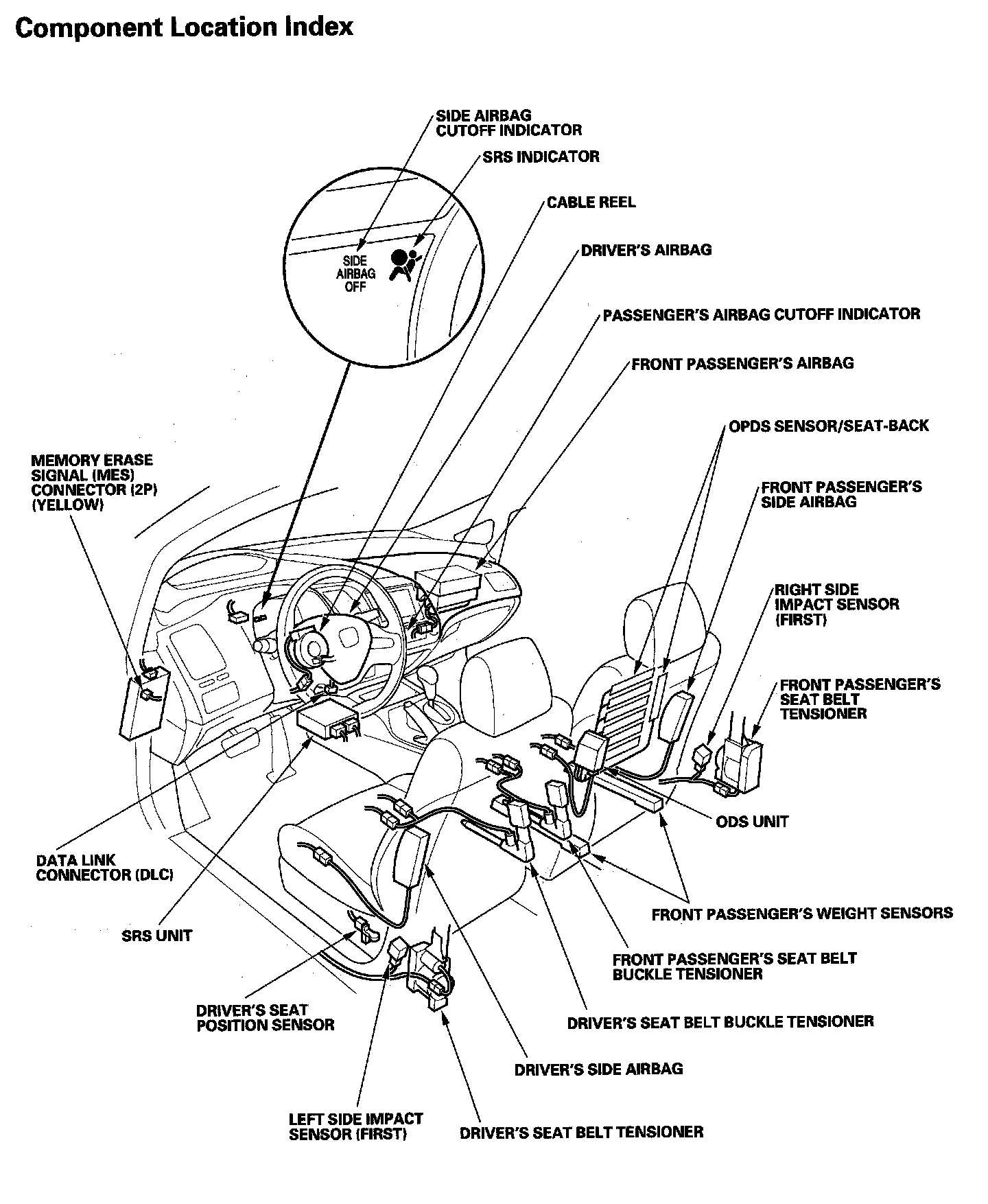

SRS Component Location Index:

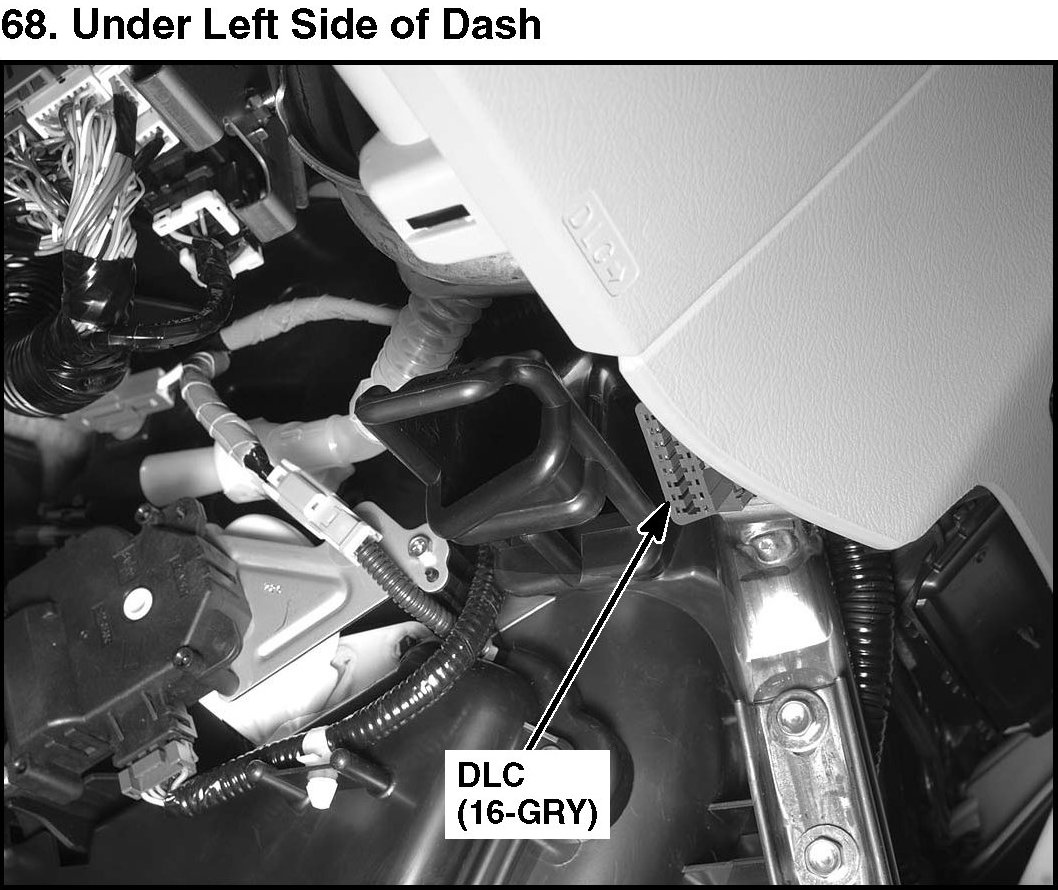

68. Under Left Side Of Dash:
