Trunk / Liftgate Switch

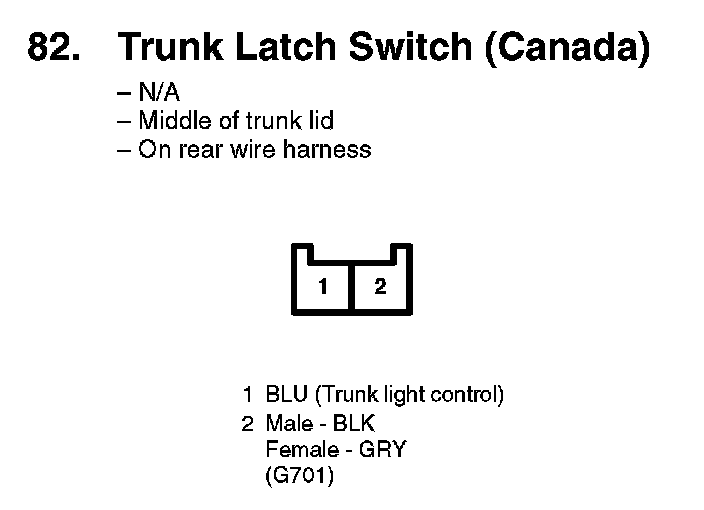

82. Trunk Latch Switch (Canada):

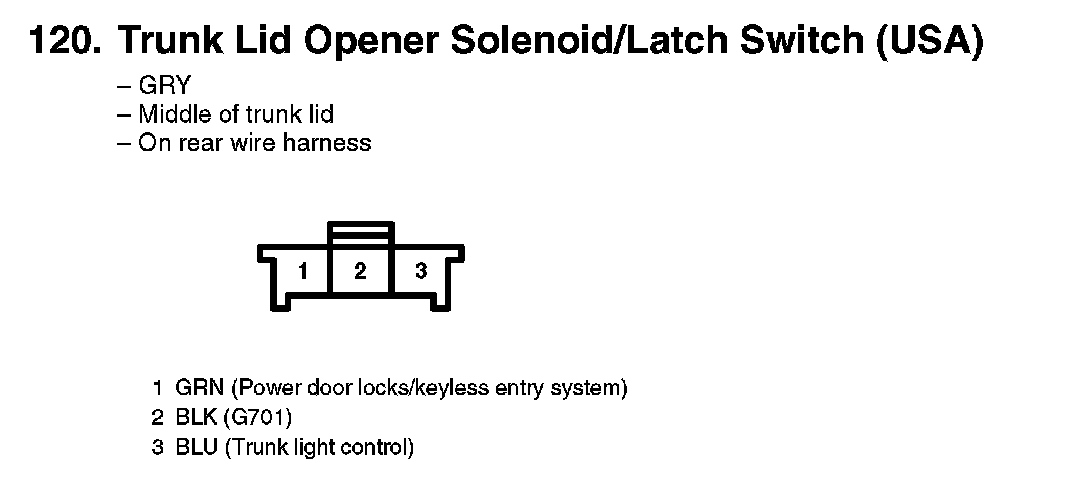

120. Trunk Lid Opener Solenoid/Latch Switch (USA):
