Transmission Speed Sensor, CVT

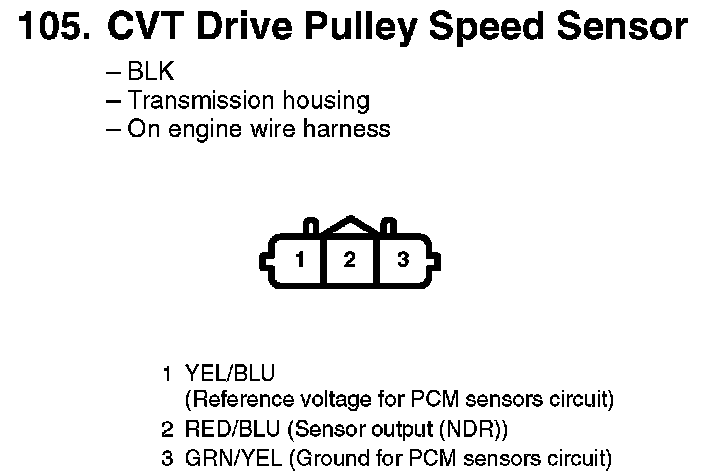

105. CVT Drive Pulley Speed Sensor:

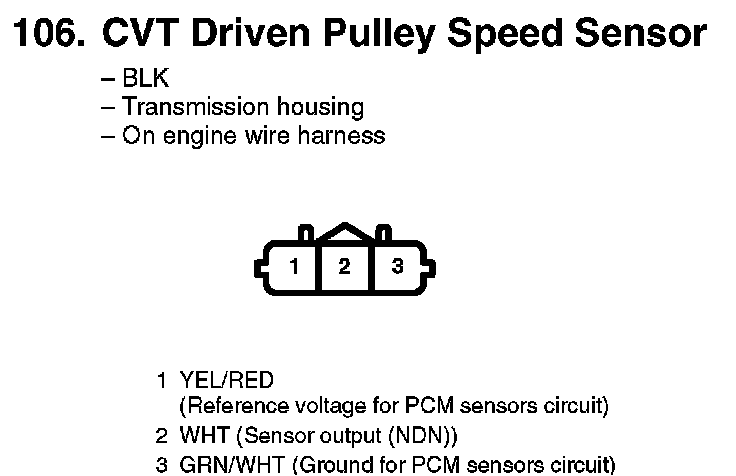

106. CVT Driven Pulley Speed Sensor:

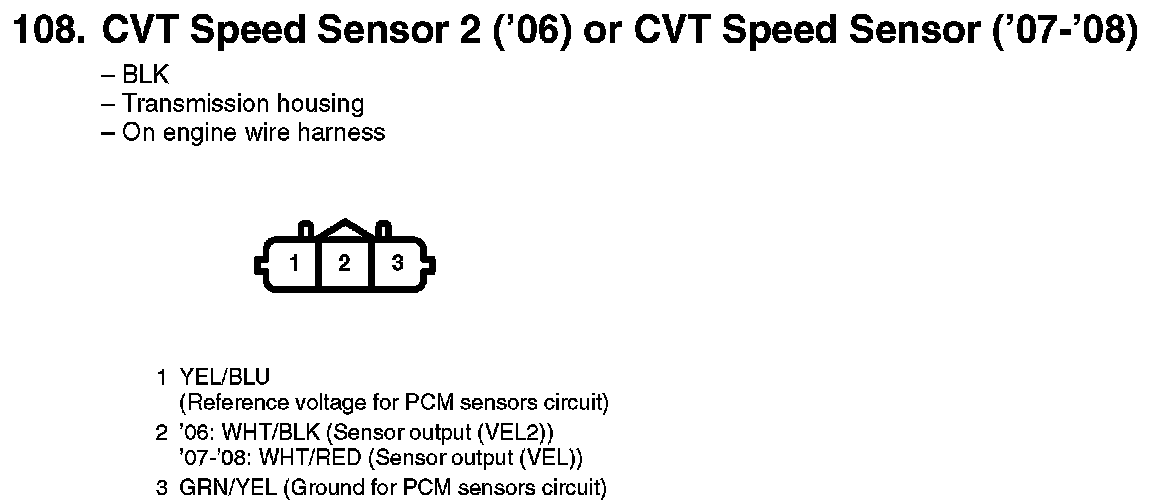

108. CVT Speed Sensor 2 Or CVT Speed Sensor:
