Power Door Lock Switch

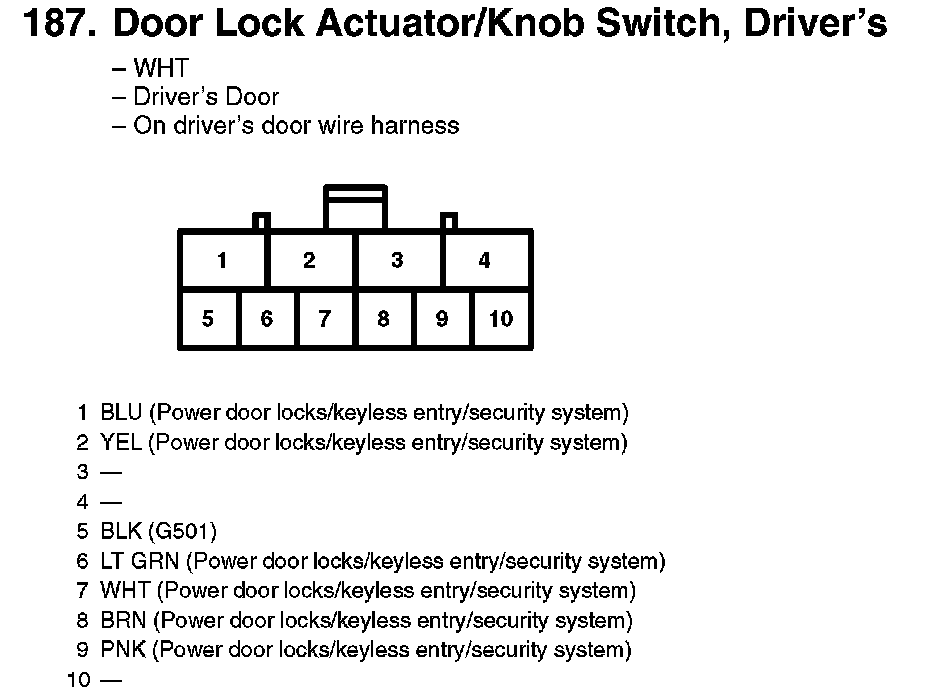

187. Door Lock Actuator/Knob Switch, Driver's:

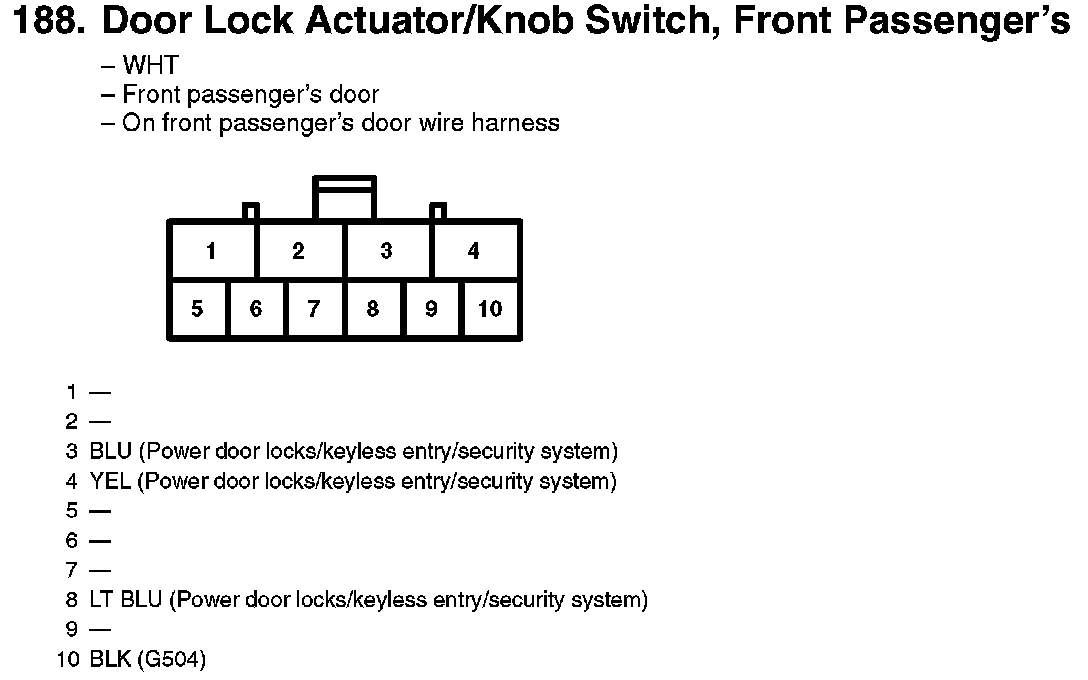

188. Door Lock Actuator/Knob Switch, Front Passenger's:

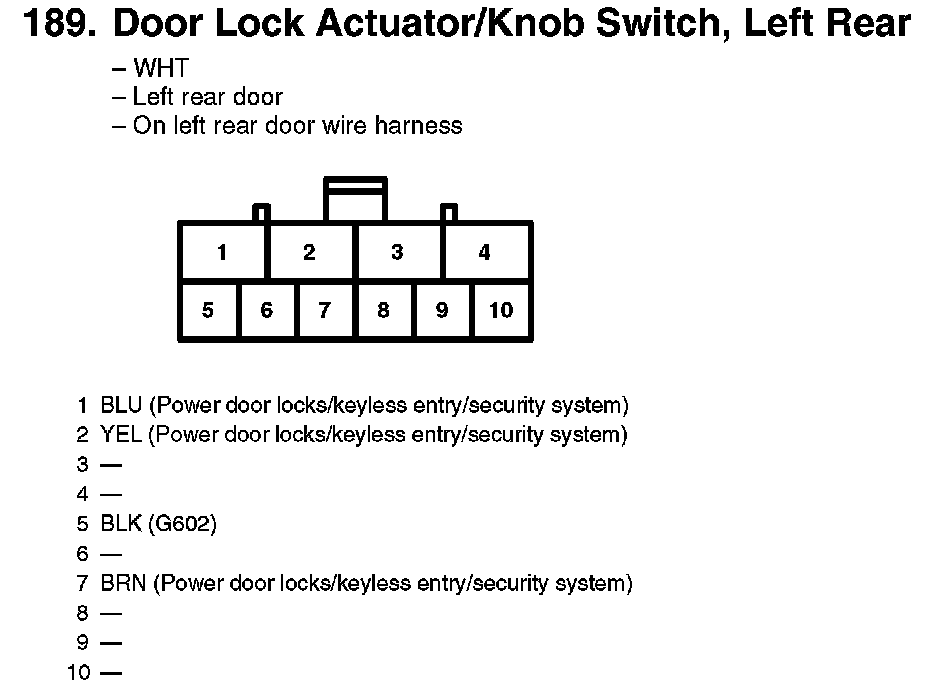

189. Door Lock Actuator/knob Switch, Left Rear:

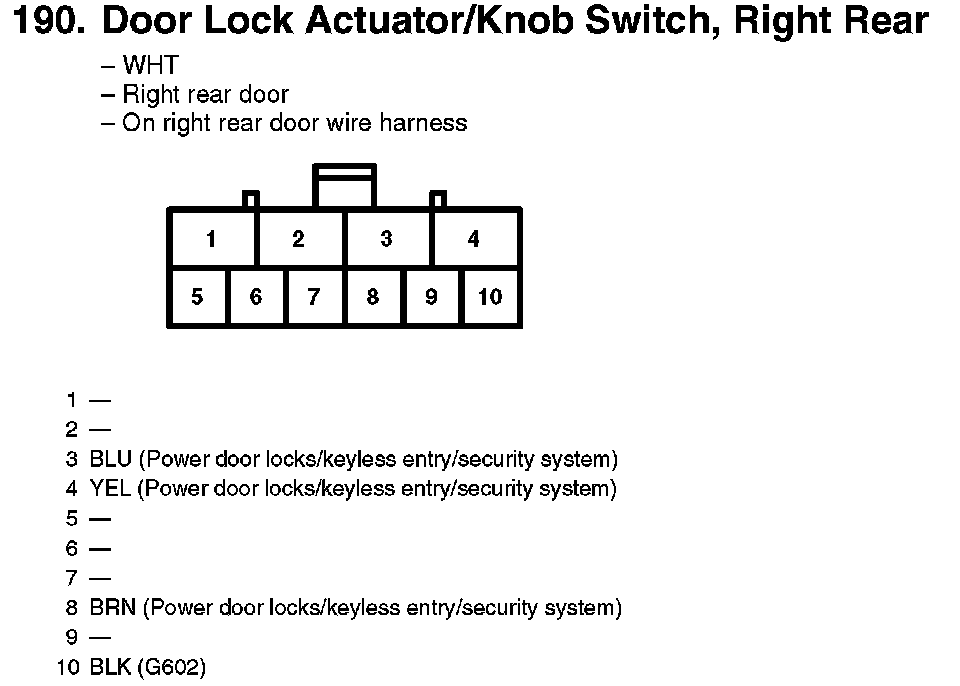

190. Door Lock Actuator/Knob Switch, Right Rear:
