Fuse
Fuse

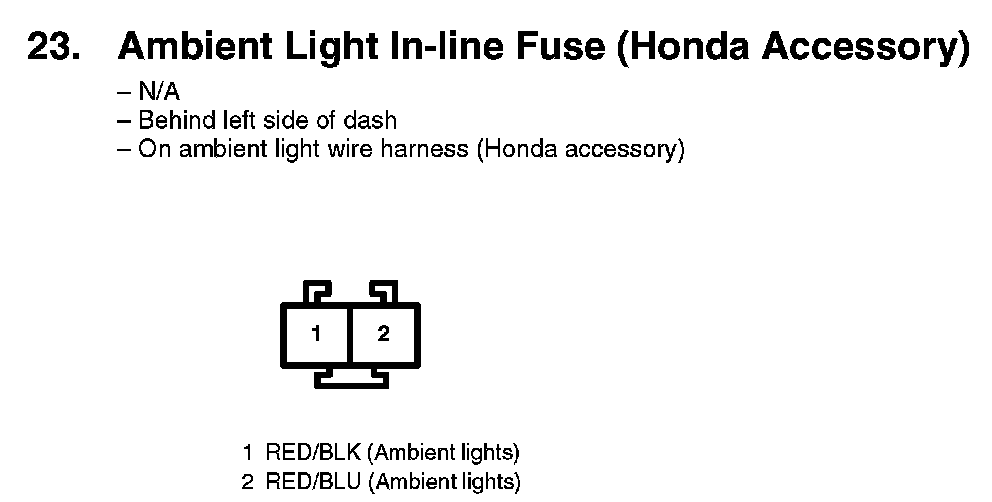

23. Ambient Light In-Line Fuse (Honda Accessory):

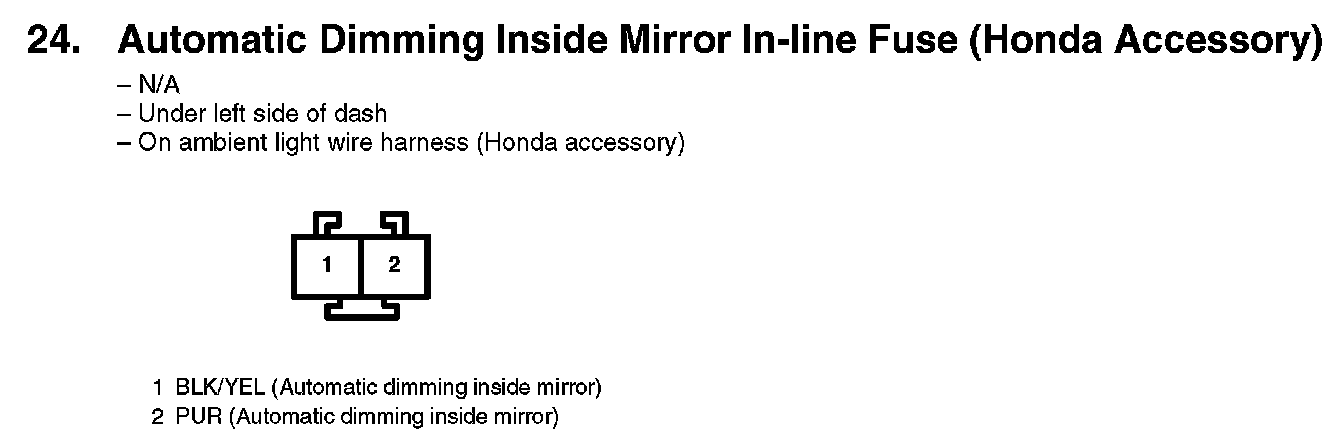

24. Automatic Dimming Inside Mirror In-Line Fuse (Honda Accessory):

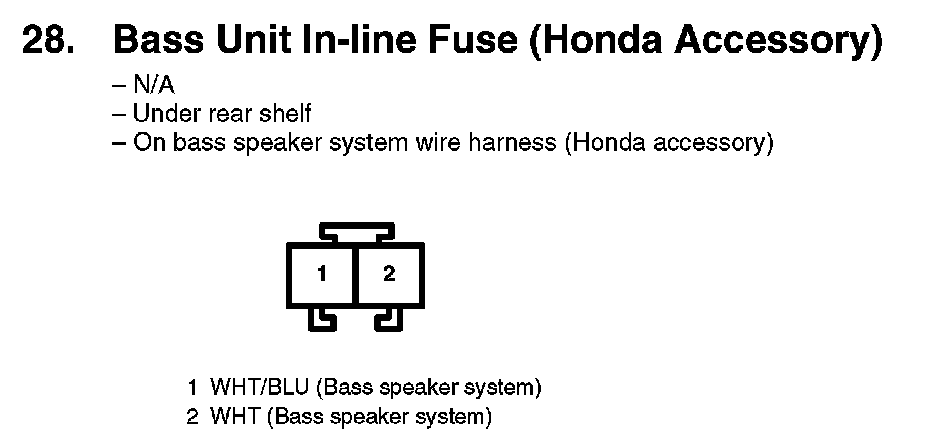

28. Bass Unit In-Line Fuse (Honda Accessory):
