Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

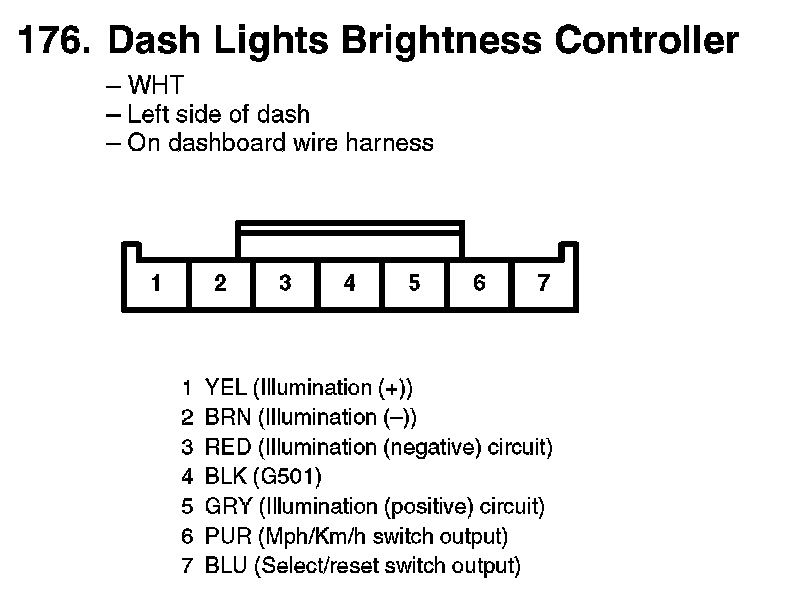

176. Dash Lights Brightness Controller:

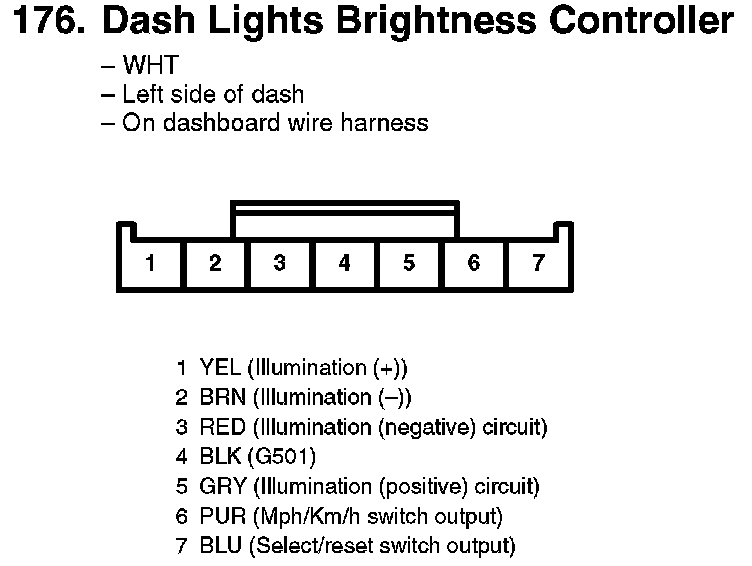

176. Dash Lights Brightness Controller:
