Home >> Honda >> 2007 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

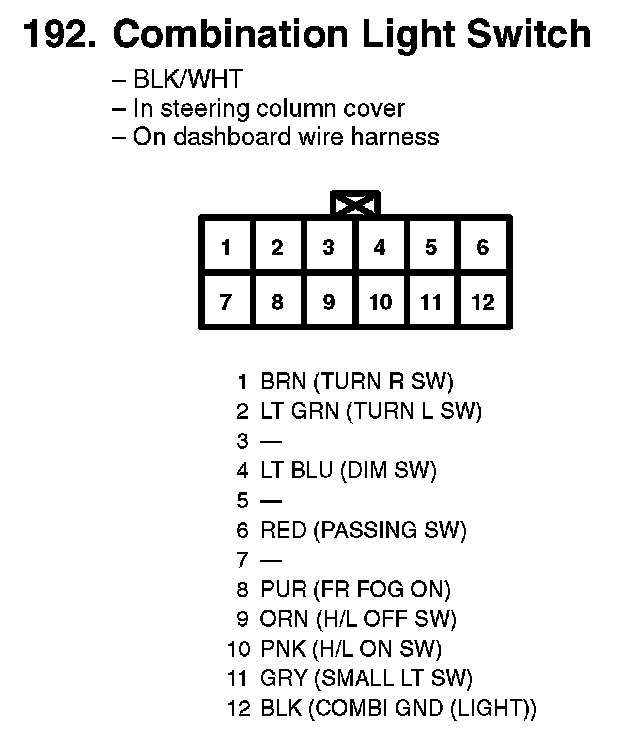

192. Combination Light Switch:

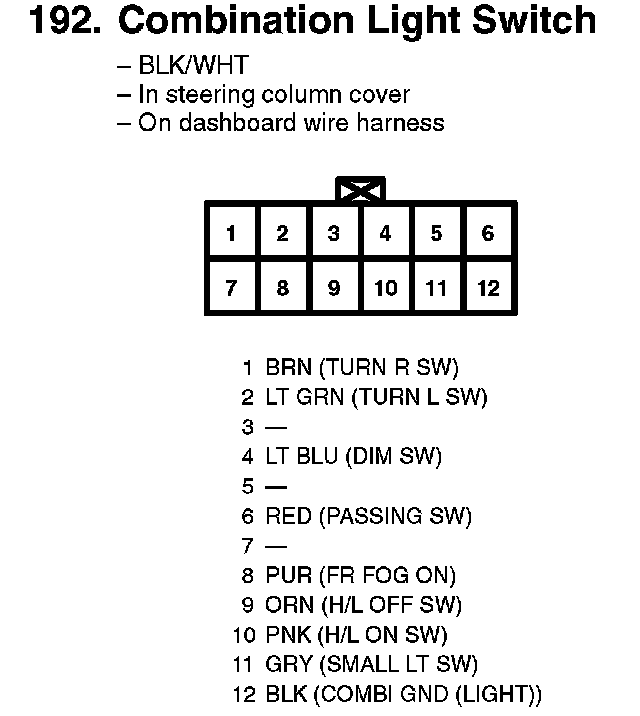

192. Combination Light Switch:
