Control Module: Service and Repair

Auxiliary Transmission Fluid Pump (ATFP) Control Unit Replacement

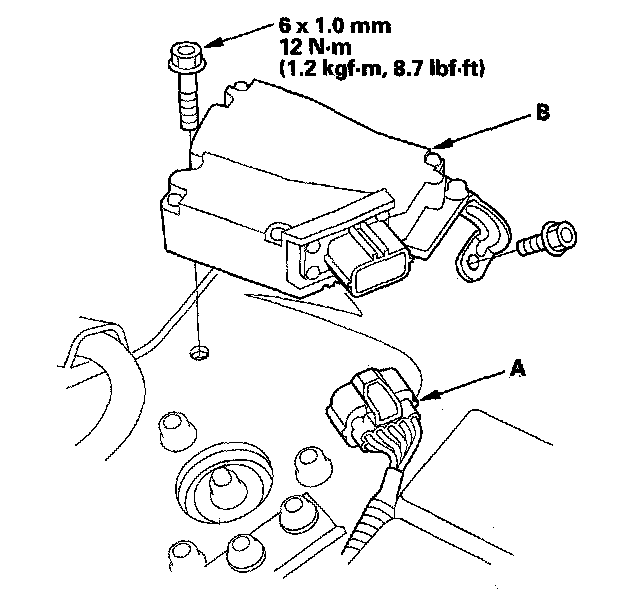

1. Disconnect the auxiliary transmission fluid pump (ATFP) control unit connector (A).





2. Remove the ATFP control unit (B).
3. Install the ATFP control unit.
4. Check the connector for rust, dirt, or oil, then connect the connector securely.
