Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

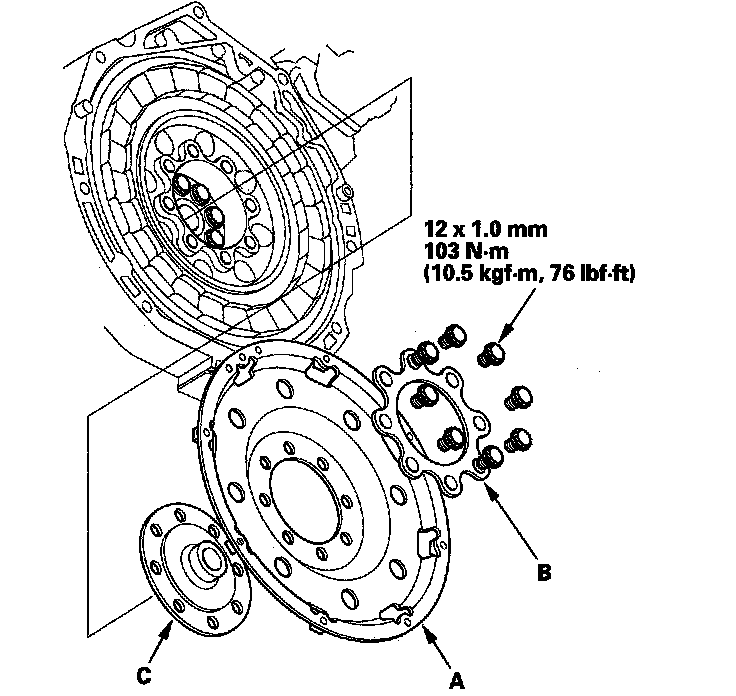

Drive Plate





Tighten the bolts in a crisscross pattern in two or more steps.
