Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Connecting Rod Bearing

Connecting Rod Bearing

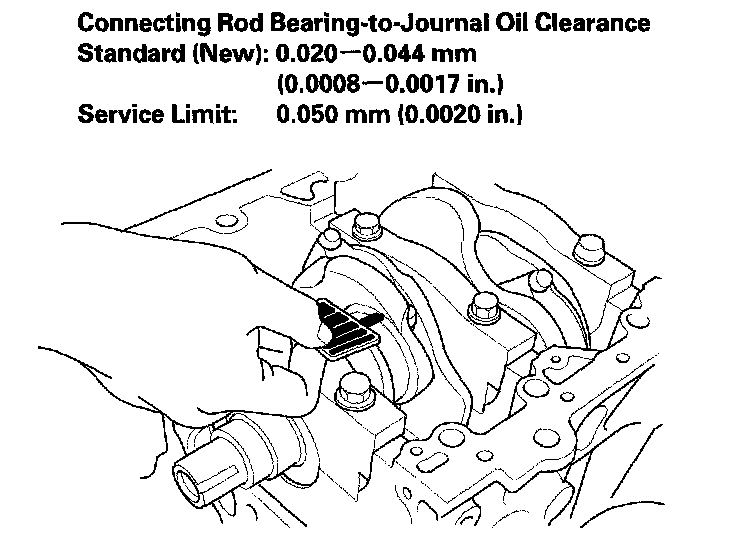

Connecting Rod Bearing Clearance






Connecting Rod Bearing Selection
For complete and accurate Bearing Selection data, please refer to Connecting Rod Bearing Replacement. Removal and Replacement
