Air Bag Control Module: Locations

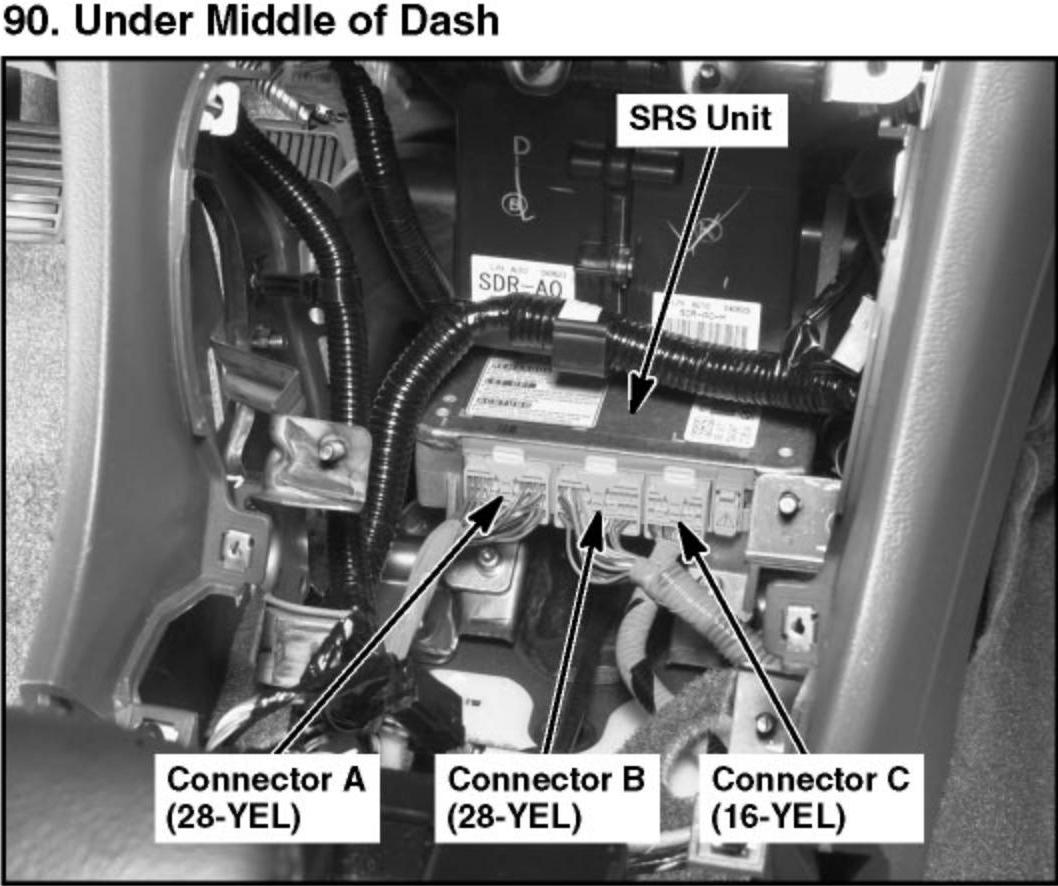

90. Under Middle of Dash:



Relay And Control Unit Locations Dashboard:



SRS Component Location Index:
