Instrument Panel Control Module: Locations

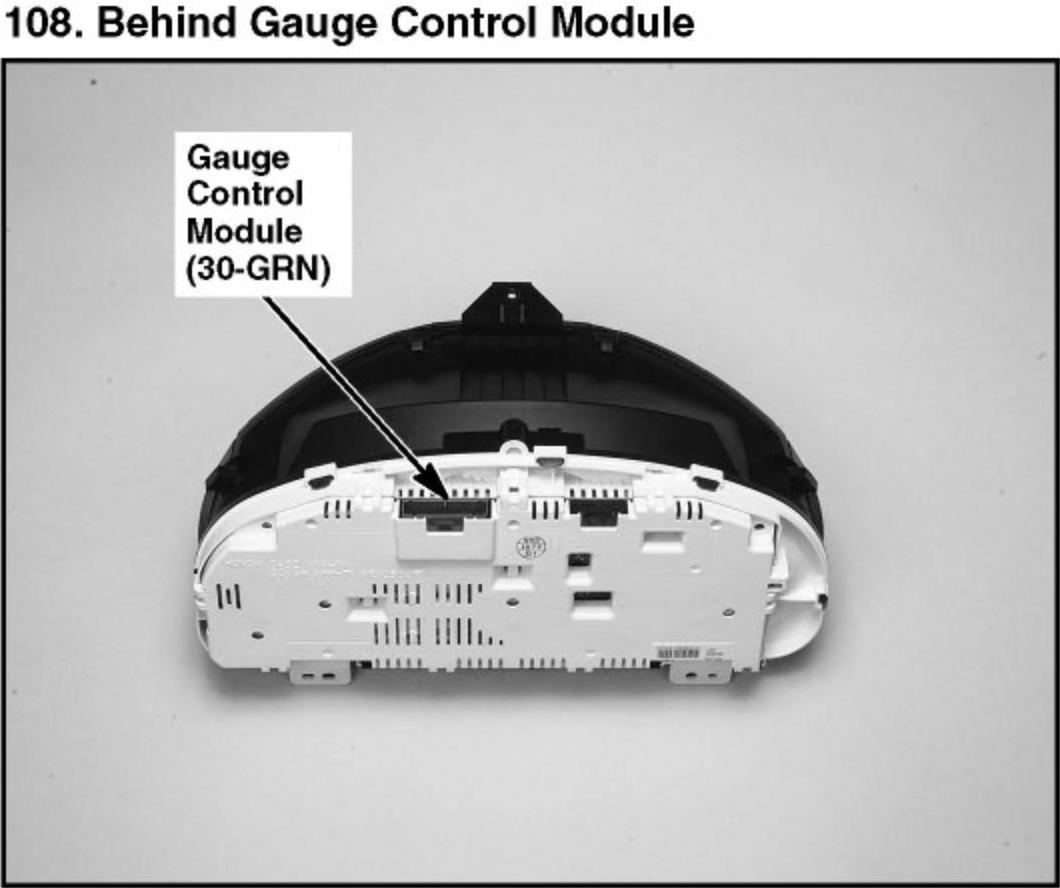

108. Behind Gauge Control Module:

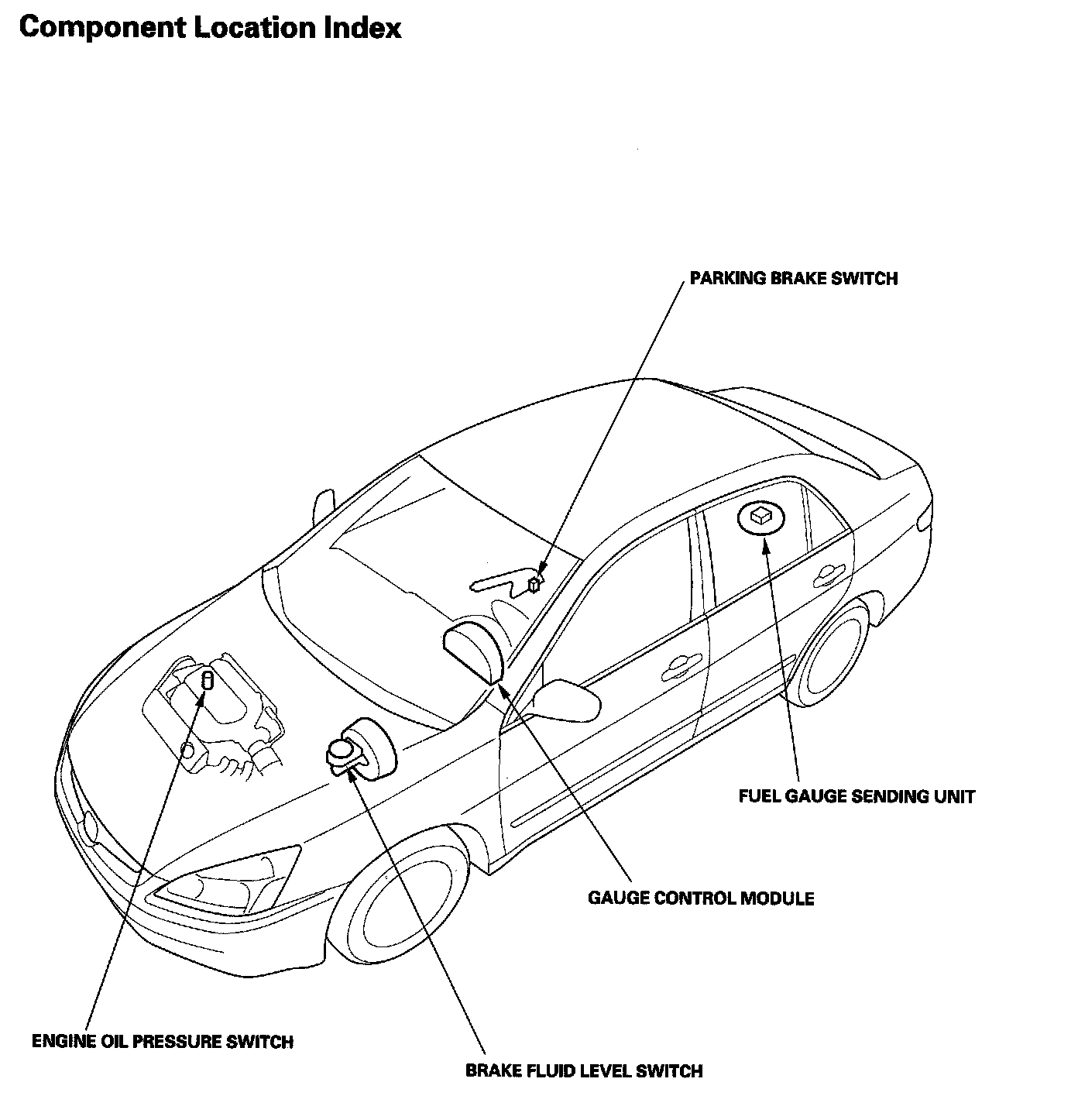

Gauges Component Location Index:

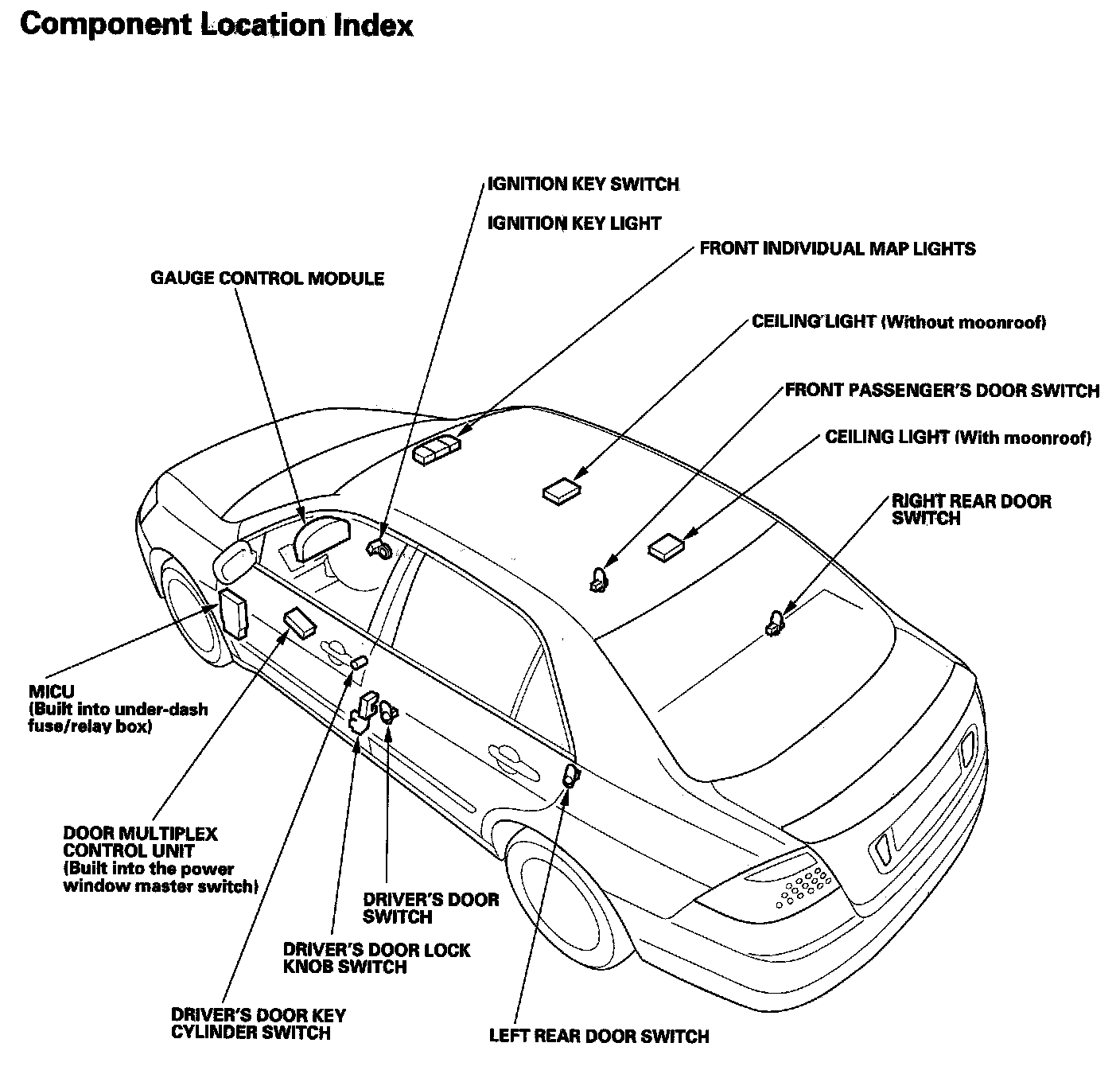

Entry Lights Control System Component Location Index:

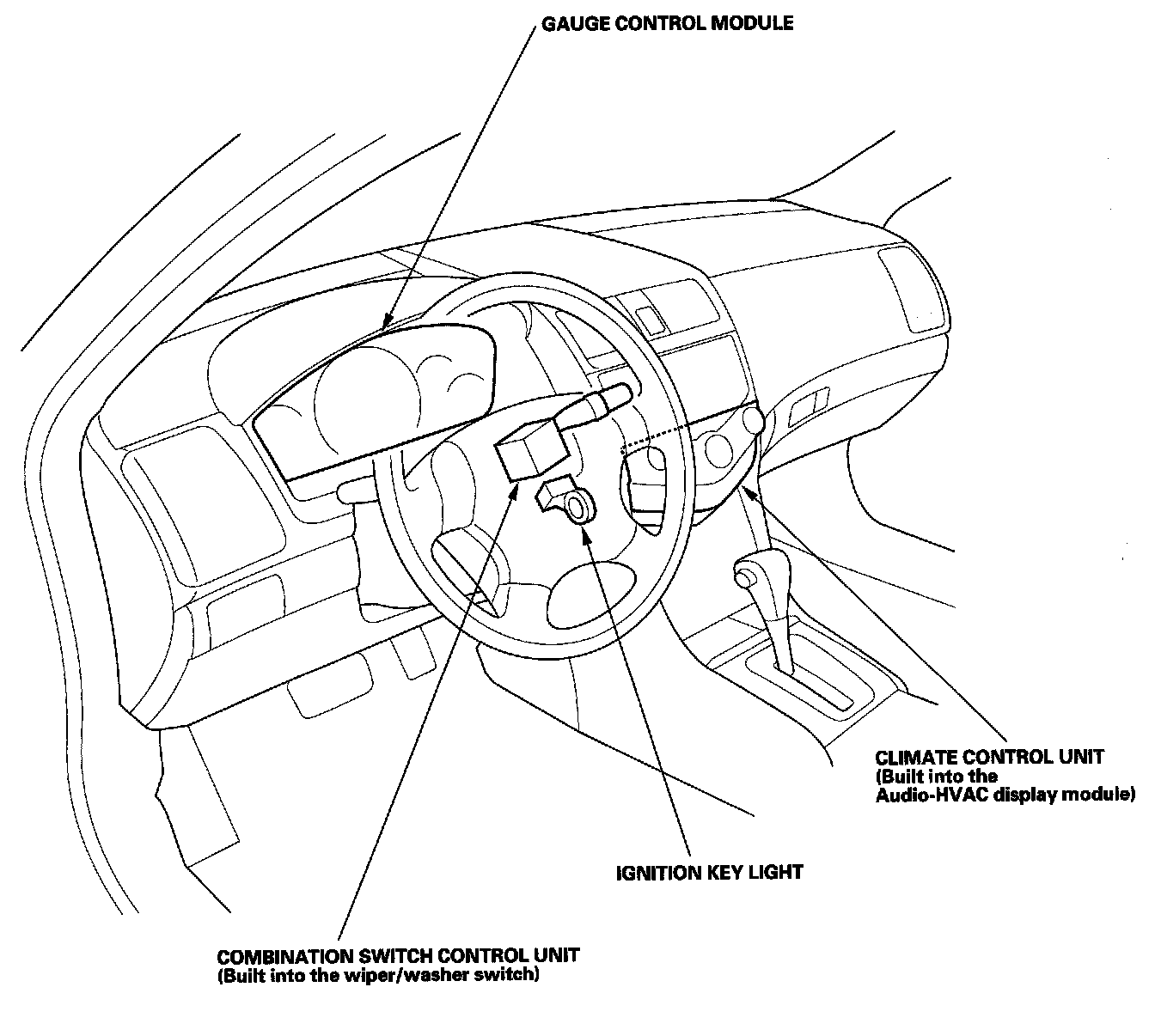

Multiplex Integrated Control System Component Location Index:
