Data Link Connector: Locations

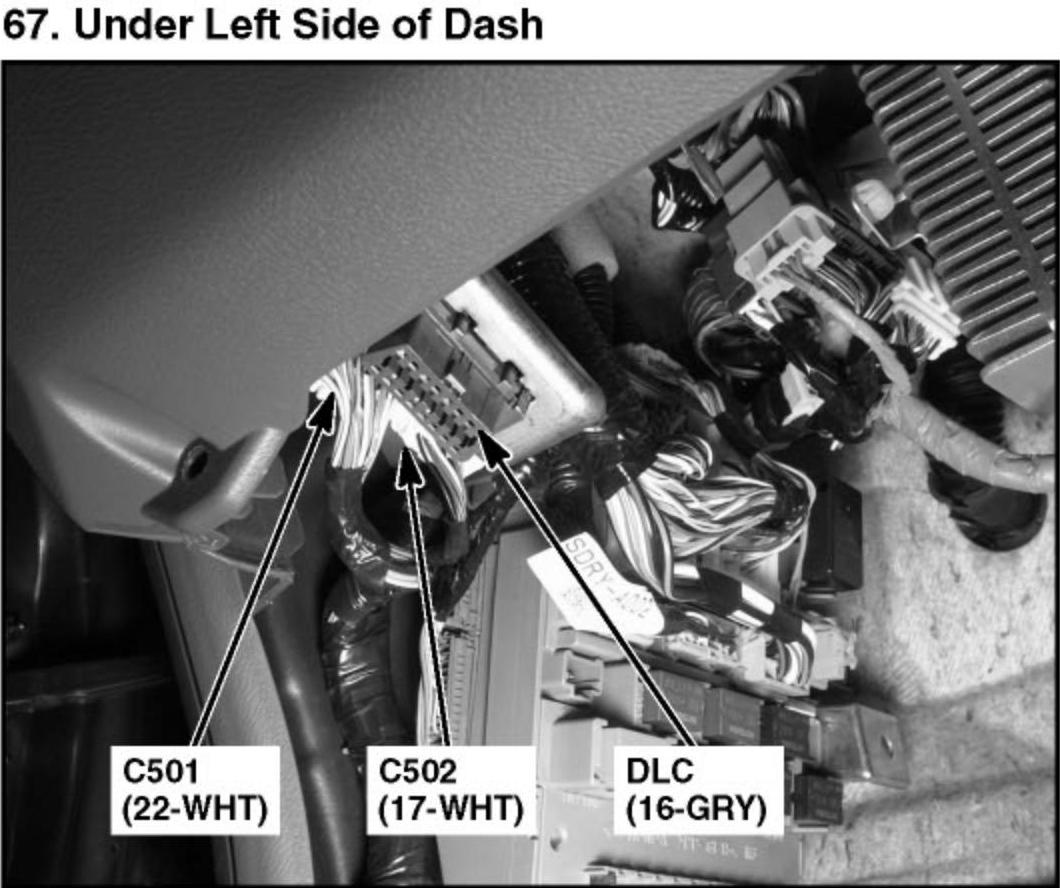

67. Under Left Side of Dash:

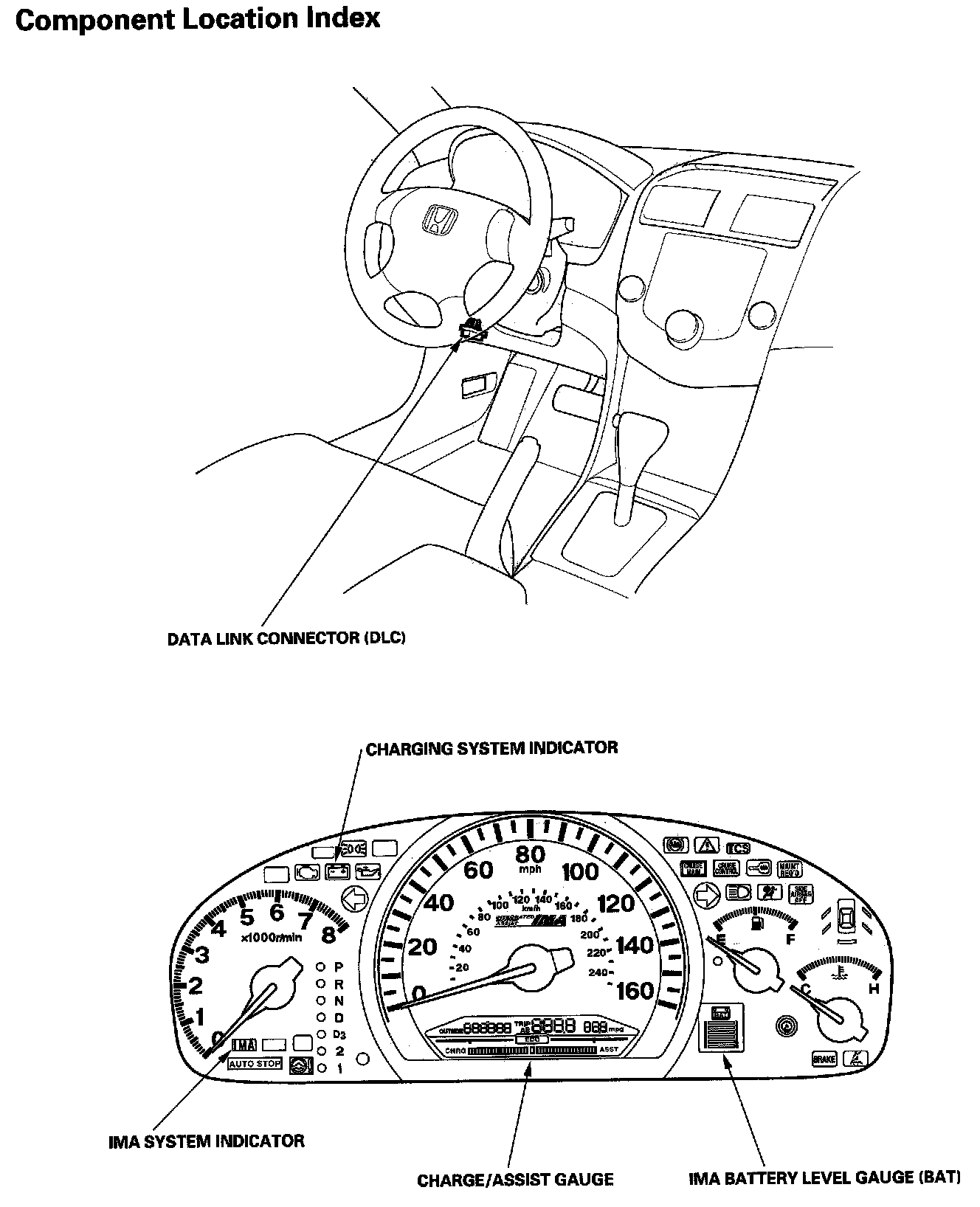

IMA System Component Location Index Part 3:



PGM-FI System Component Location Index:
