MCM Inputs and Outputs

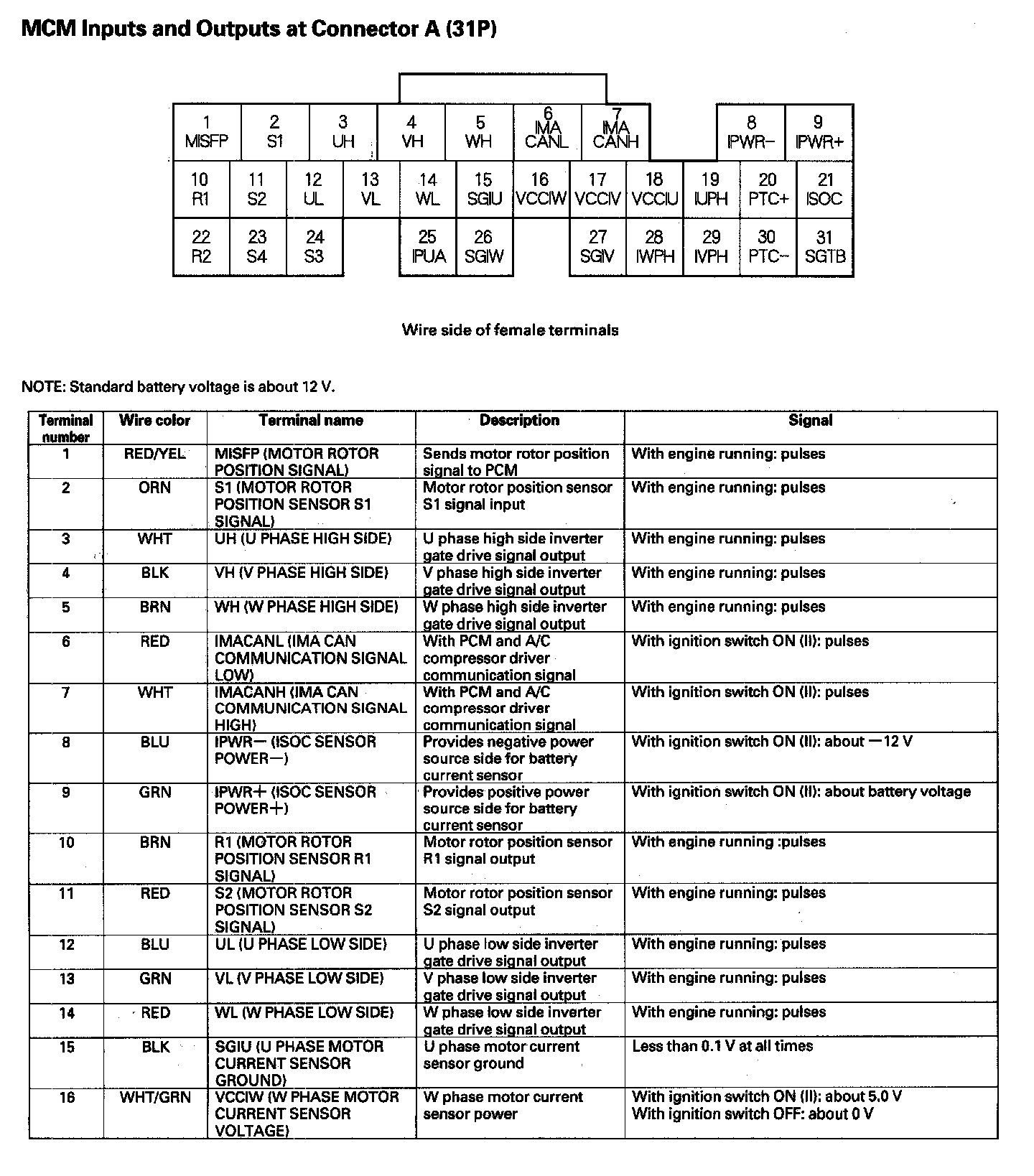

MCM Inputs And Outputs At Connector A (31P) Part 1:




MCM Inputs And Outputs At Connector A (31P)

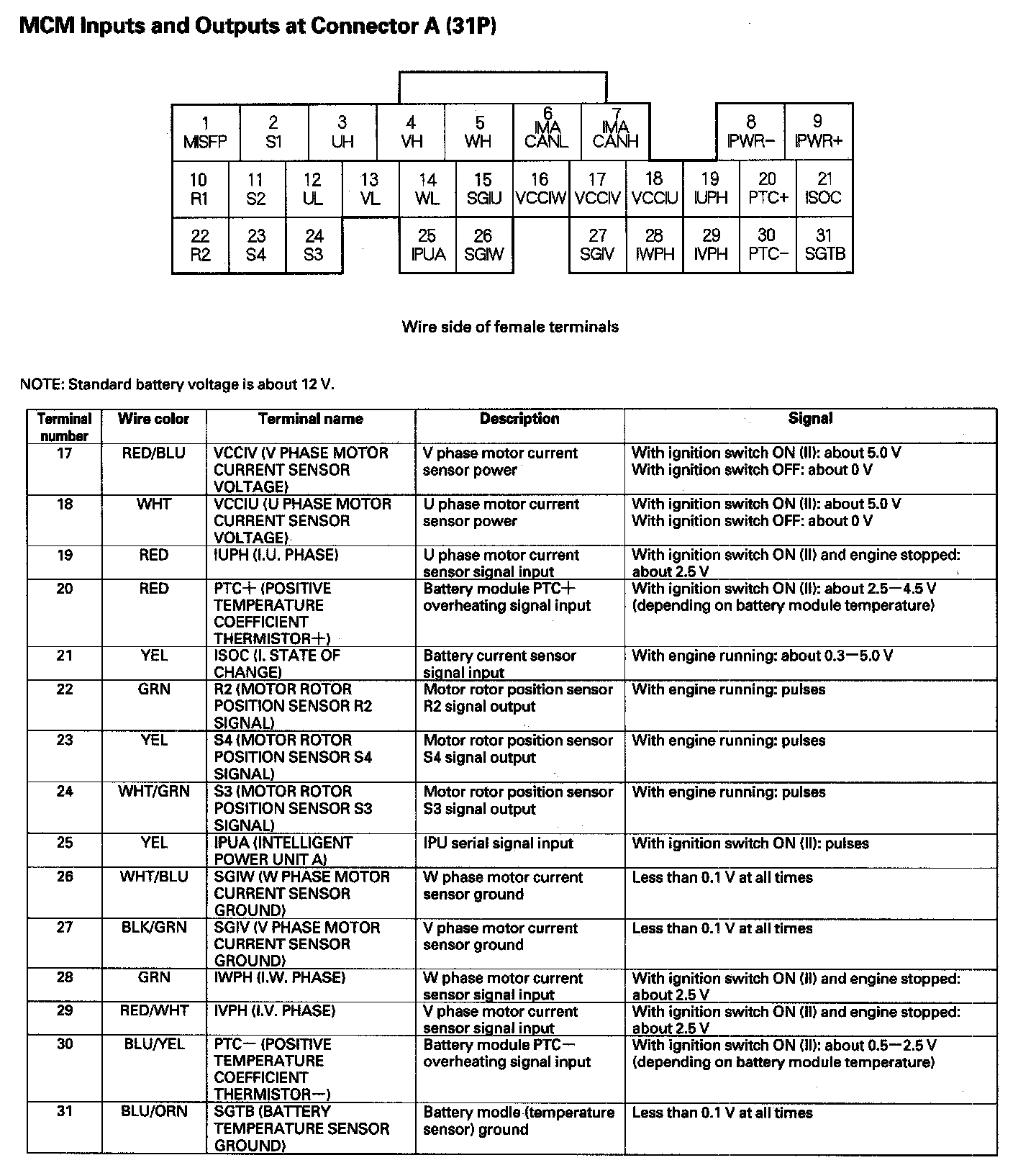

MCM Inputs And Outputs At Connector A (31P) Part 2:




MCM Inputs And Outputs At Connector A (31P)

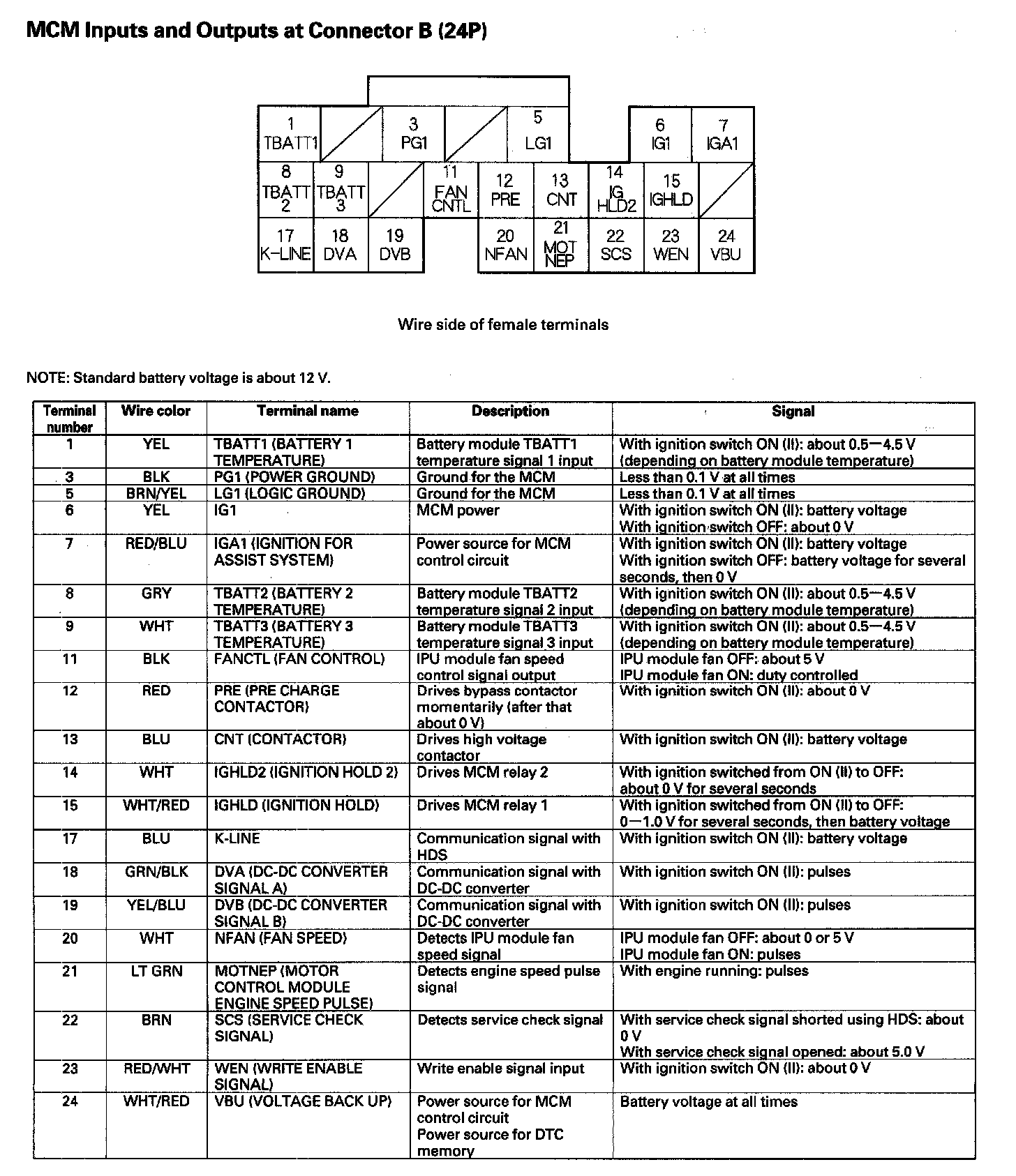

MCM Inputs And Outputs At Connector B (24P):




MCM Inputs And Outputs At Connector B (24P)

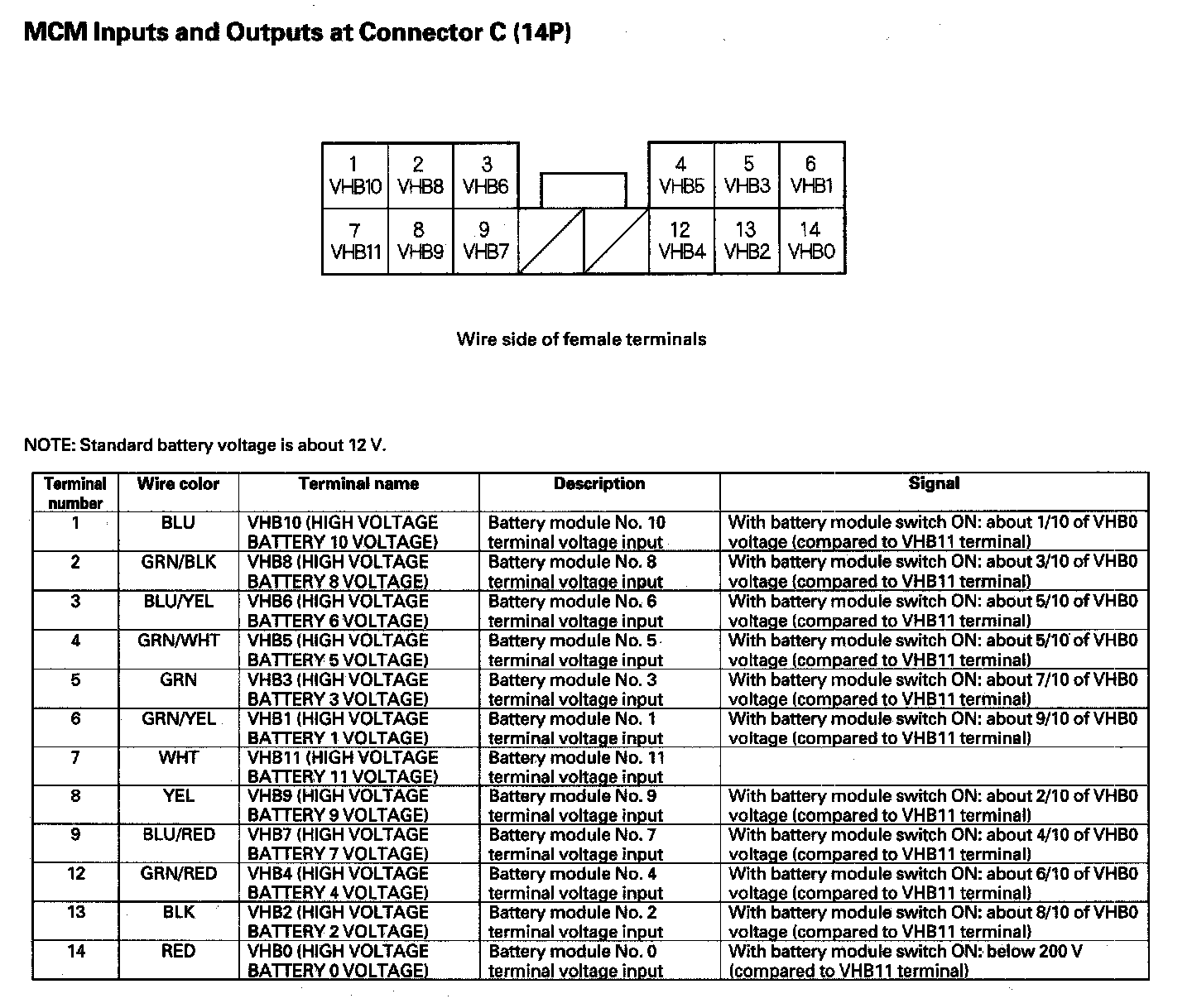

MCM Inputs And Outputs At Connector A (14P):




MCM Inputs And Outputs At Connector A (14P)
