Power Control System: Diagrams

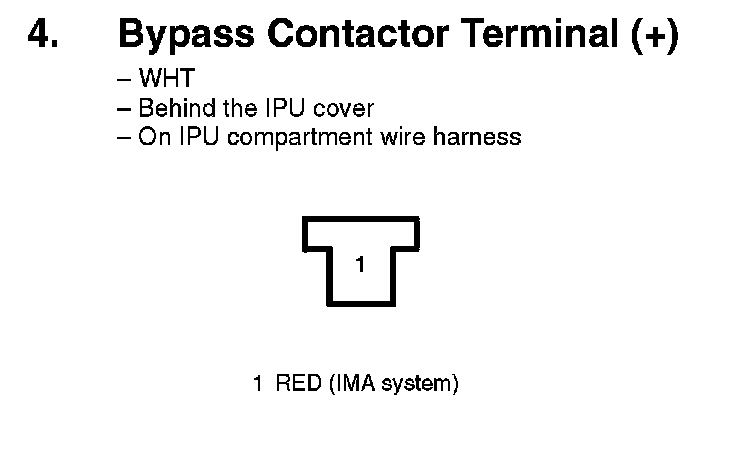

4. Bypass Contractor Terminal (+):

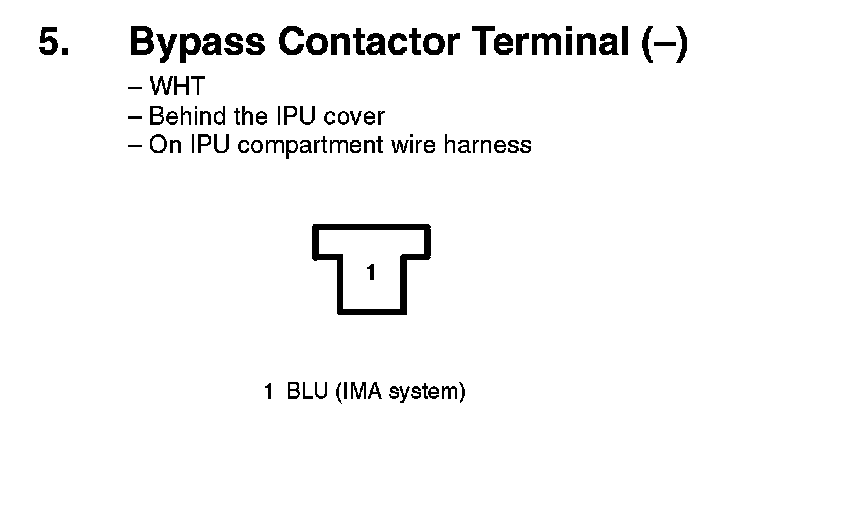

5. Bypass Contractor Terminal (-):

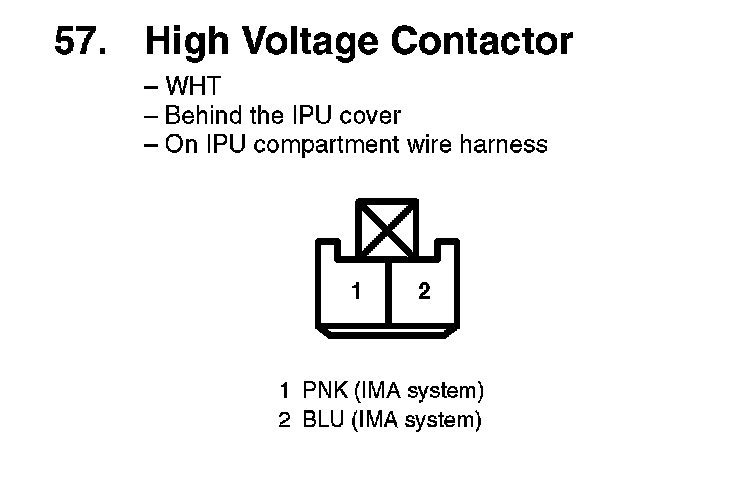

57. High Voltage Contactor:
