Compressor HVAC

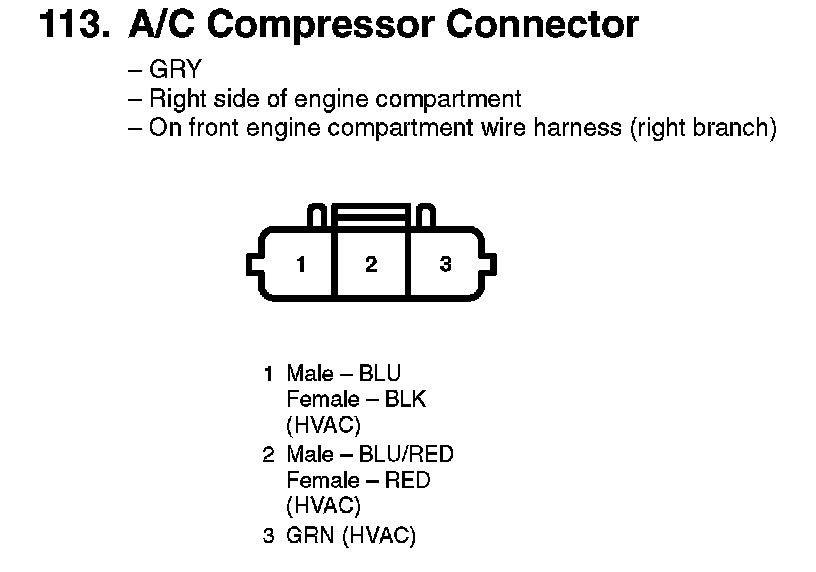

113. A/C Compressor Connector:

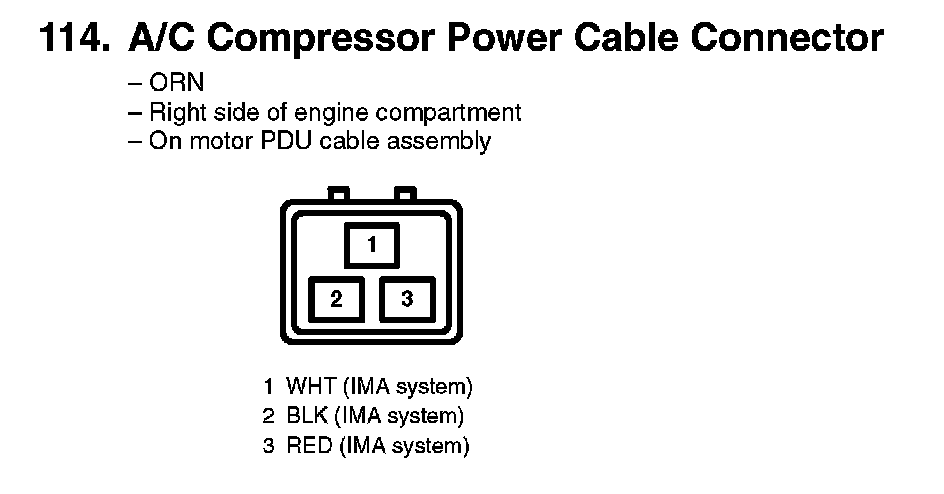

114. A/C Compressor Power Cable Connector:

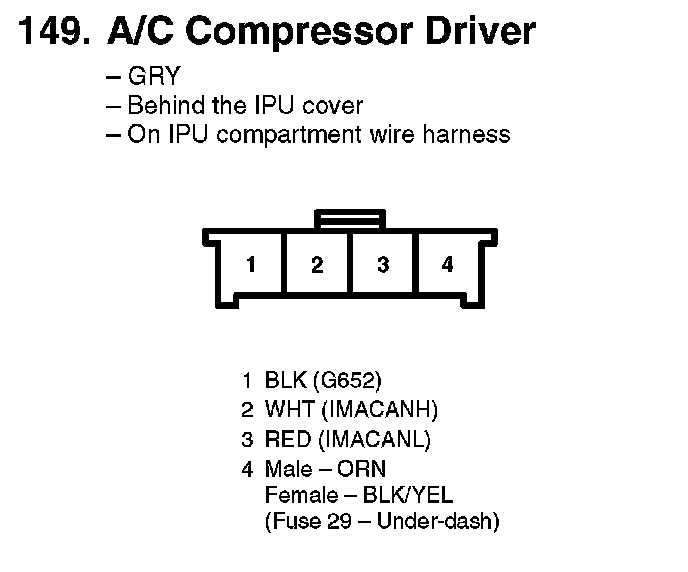

149. A/C Compressor Clutch:
