Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Systems

Body Control Systems

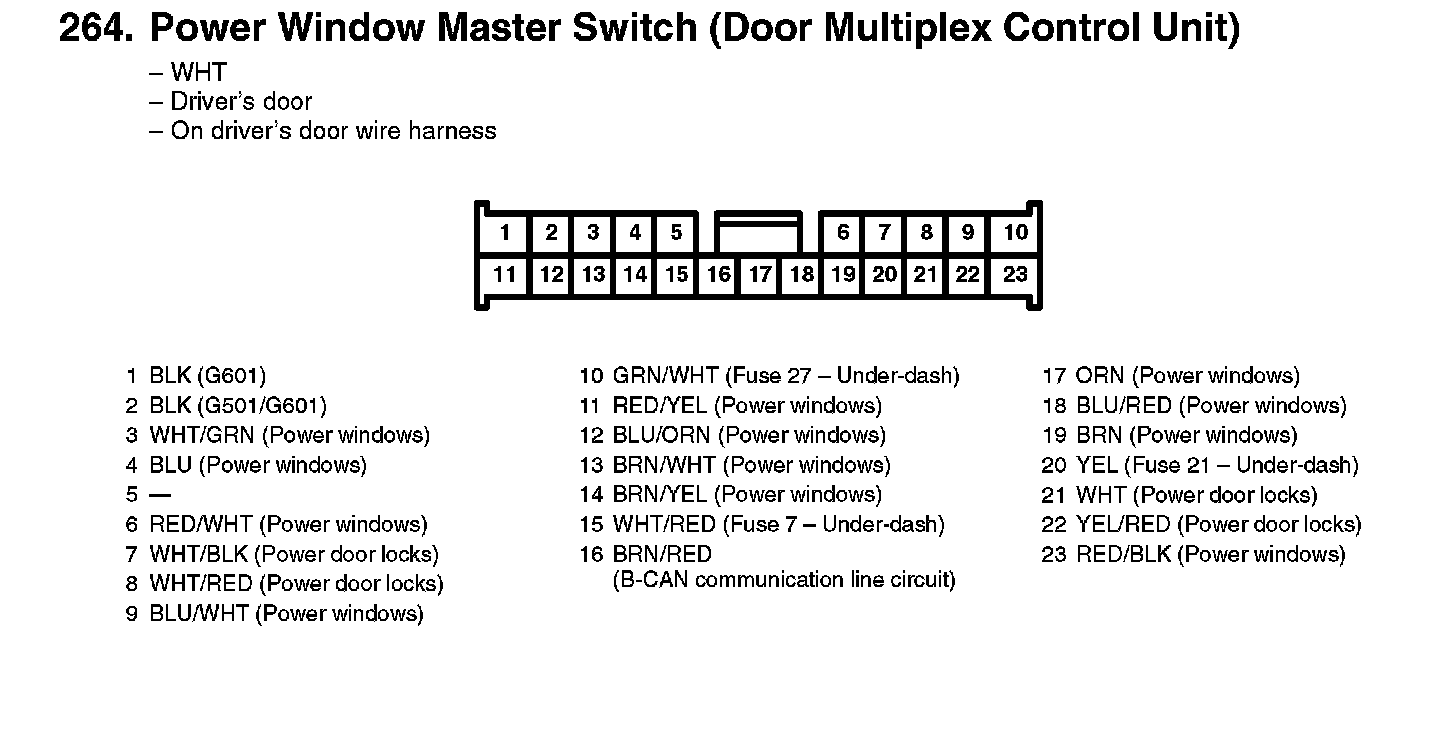

264. Power Window Master Switch (Door Multiplex Control Unit):
