Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Traction Control Module >> Locations

Traction Control Module: Locations

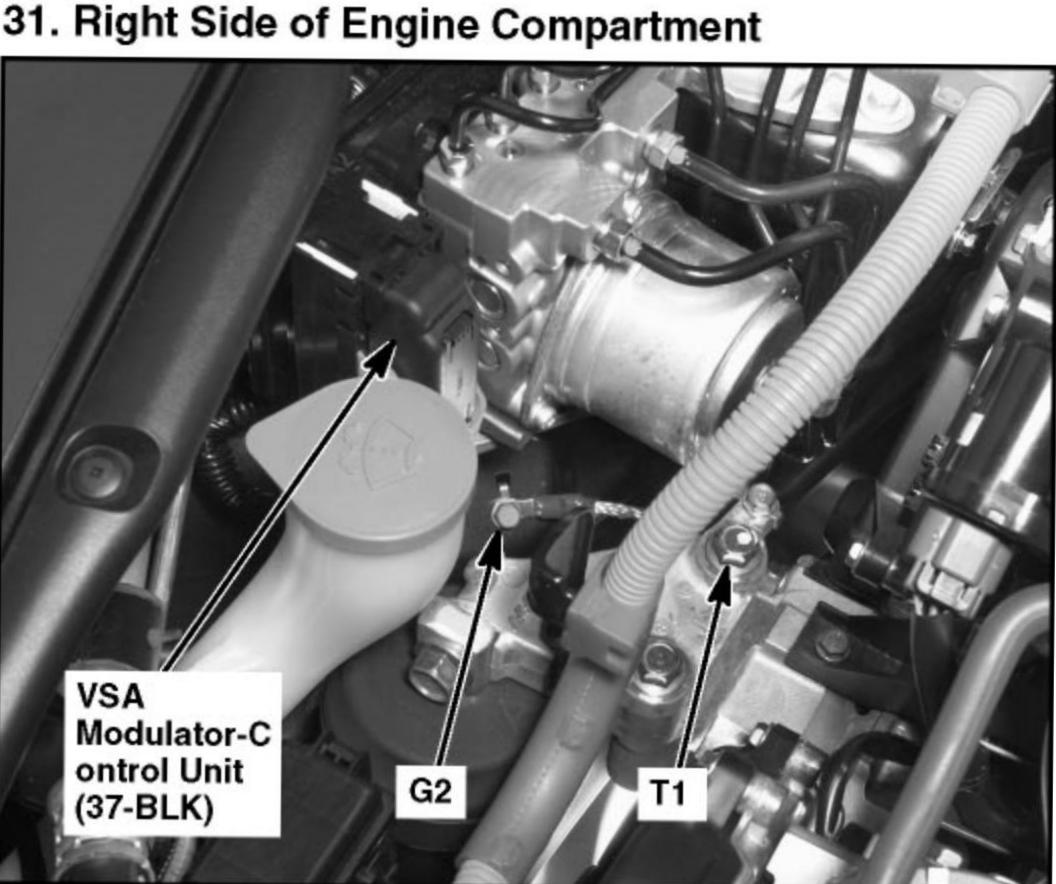

31. Right Side of Engine Compartment:

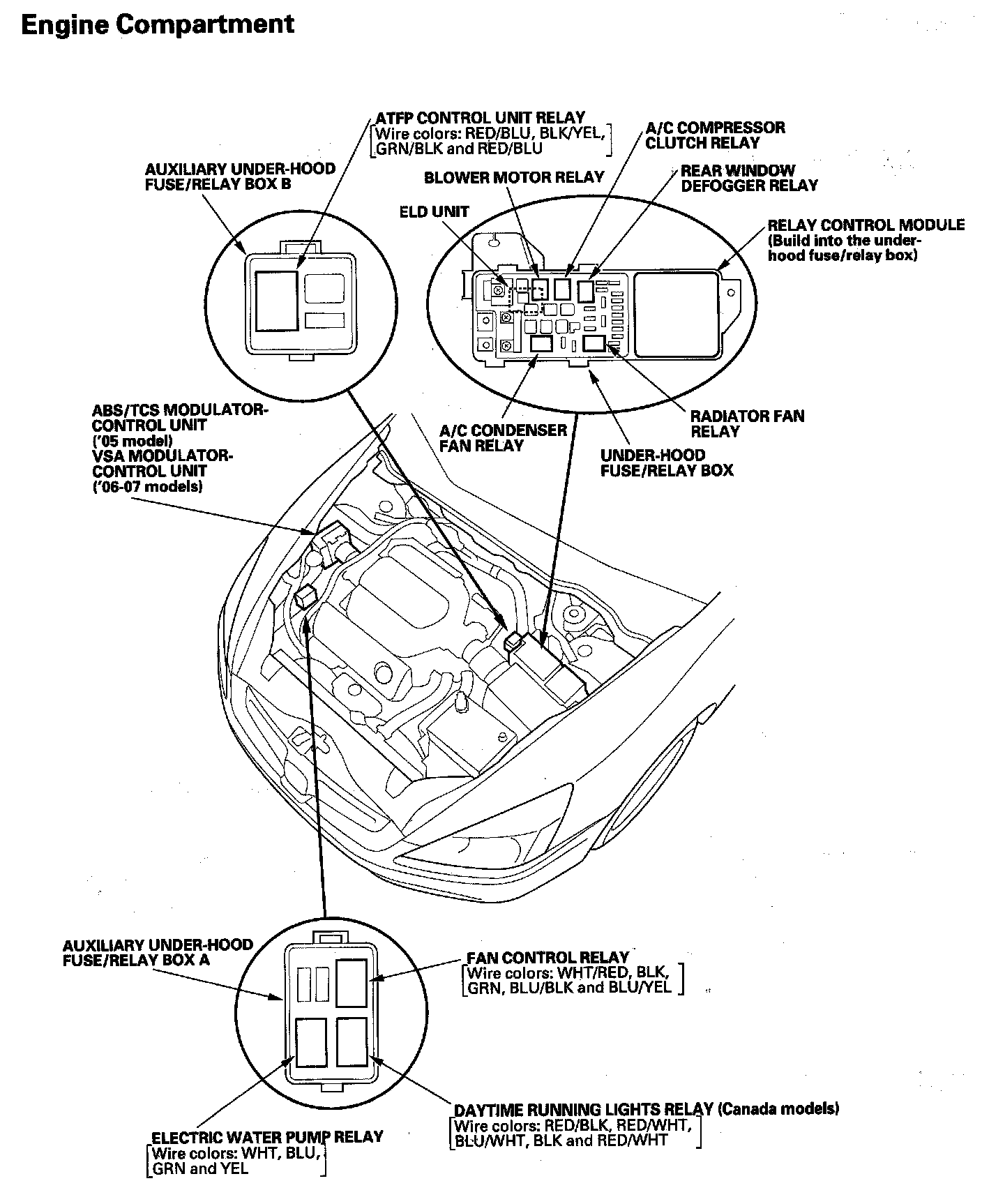

Relay And Control Unit Locations Engine Compartment:
