Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

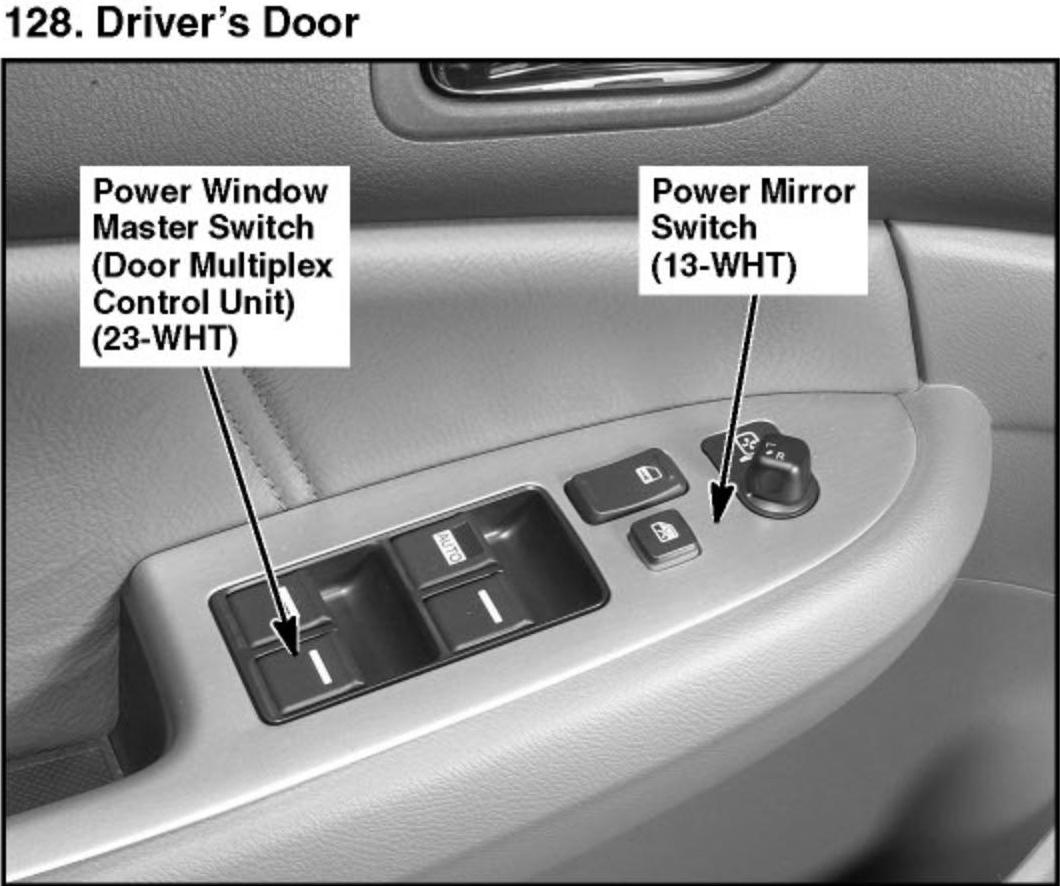

128. Driver's Door:

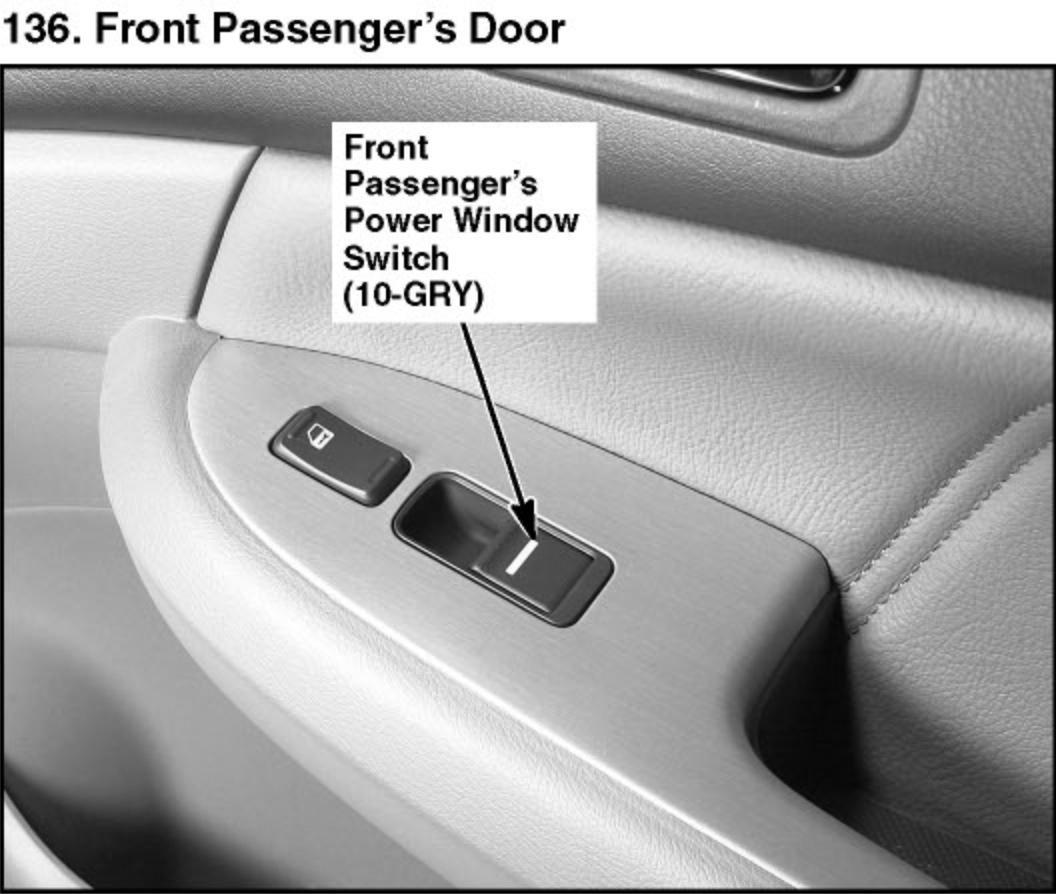

136. Front Passenger's Door:

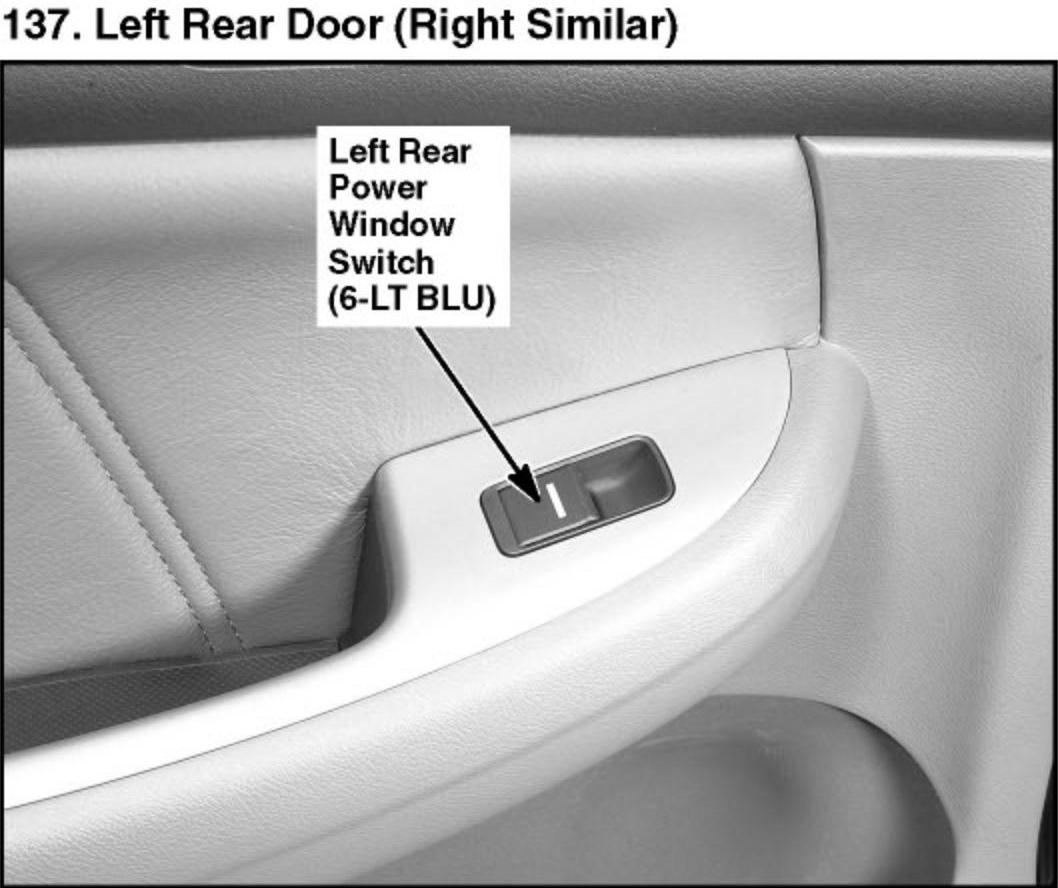

137. Left Rear Door (Right Similar):

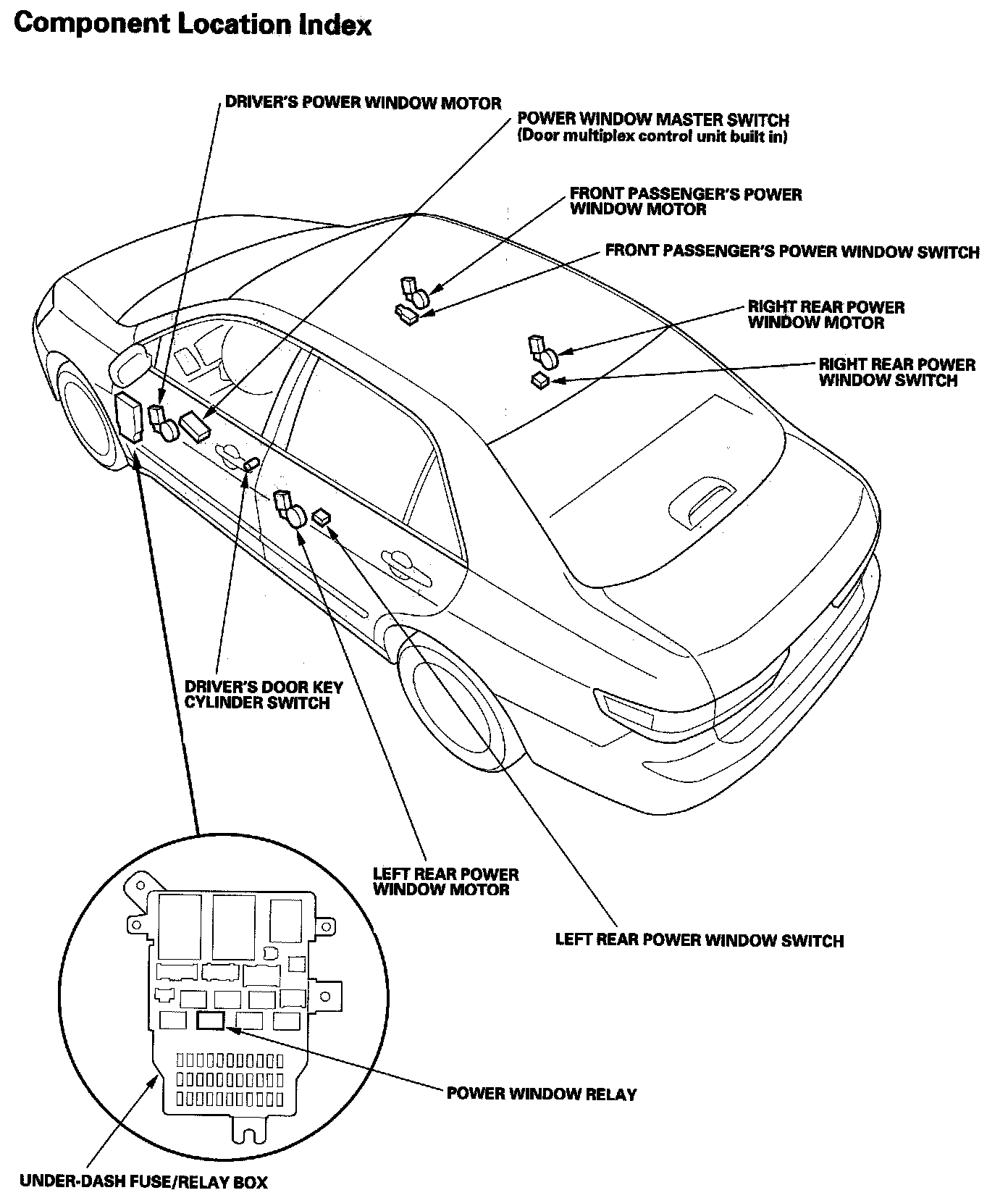

Power Windows Component Location Index:
