Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Navigation Module >> Locations

Navigation Module: Locations

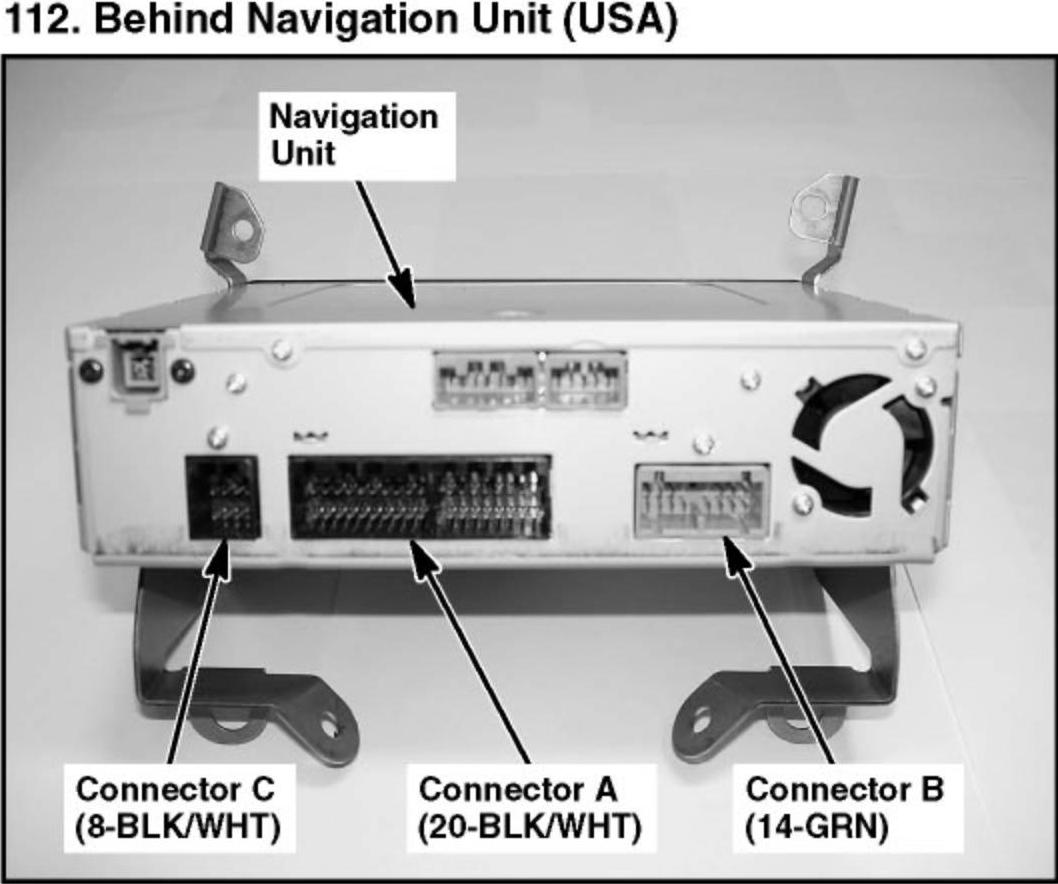

112. Behind Navigation Unit (USA):

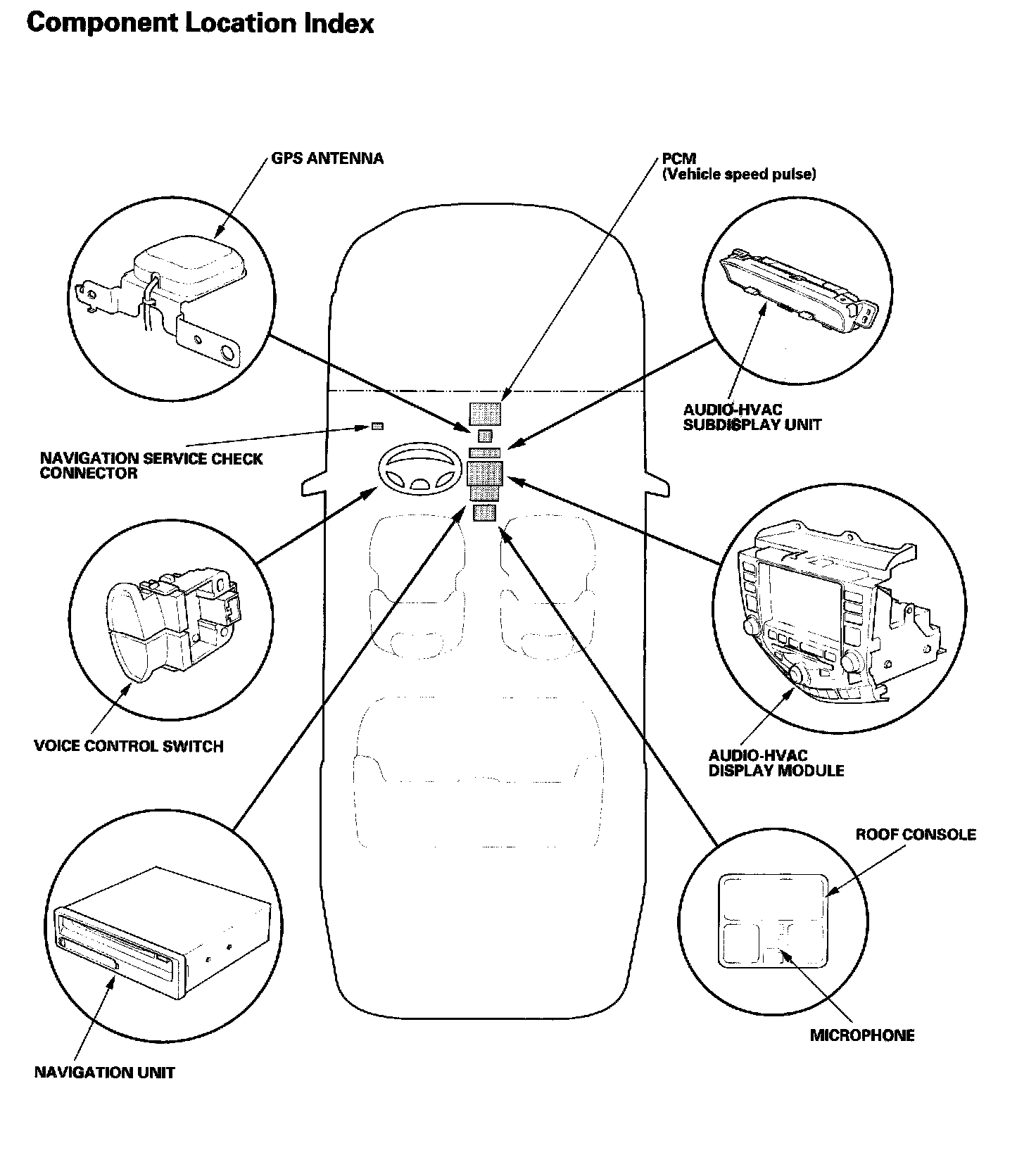

Navigation System ('06 Model) - Component Location Index:
