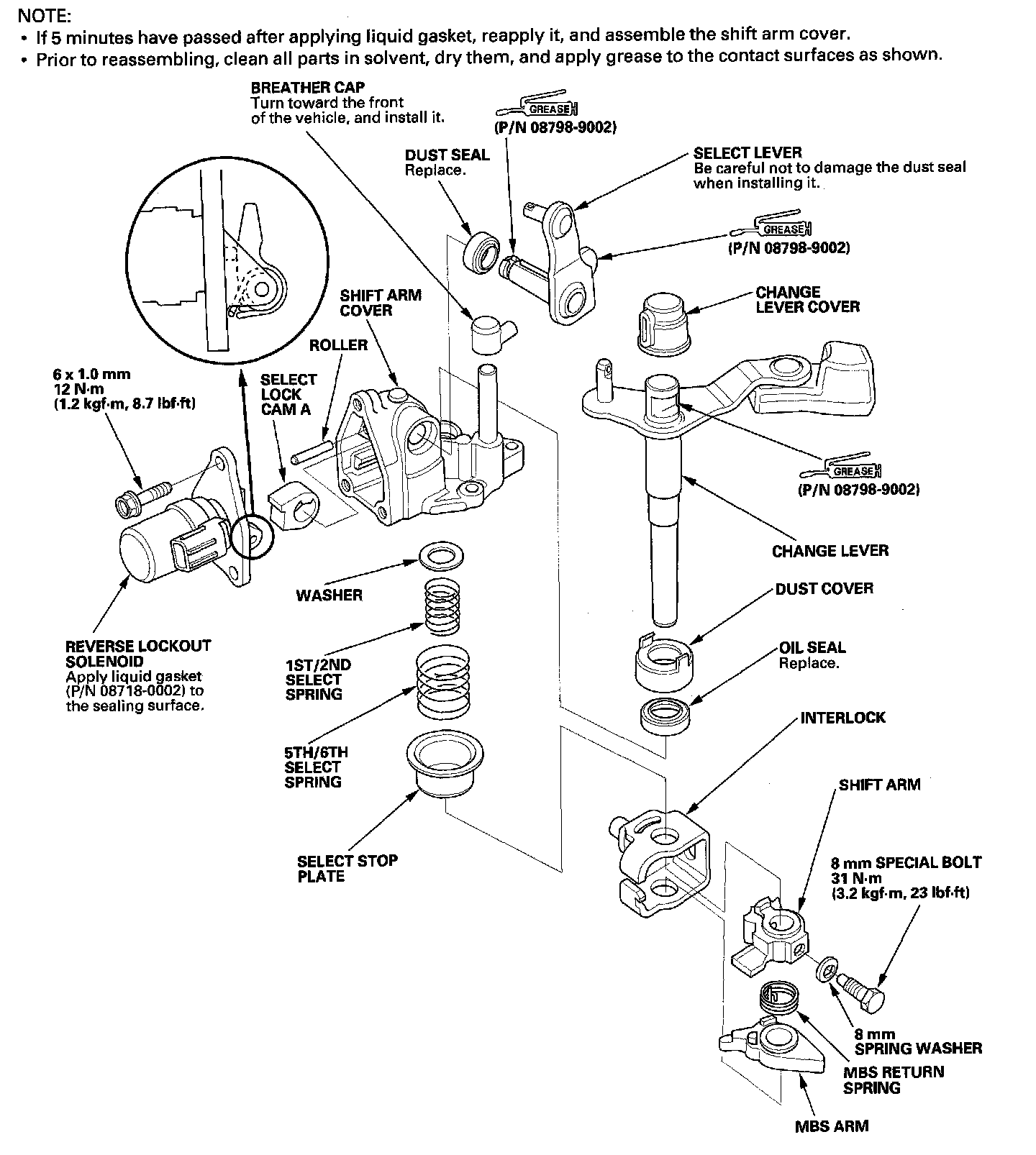

4. Change Lever Assembly Disassembly/Reassembly

Change Lever Assembly Disassembly/Reassembly

NOTE:
^ If 5 minutes have passed after applying liquid gasket, reapply it, and assemble the shift arm cover.
^ Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.
