Connector Views

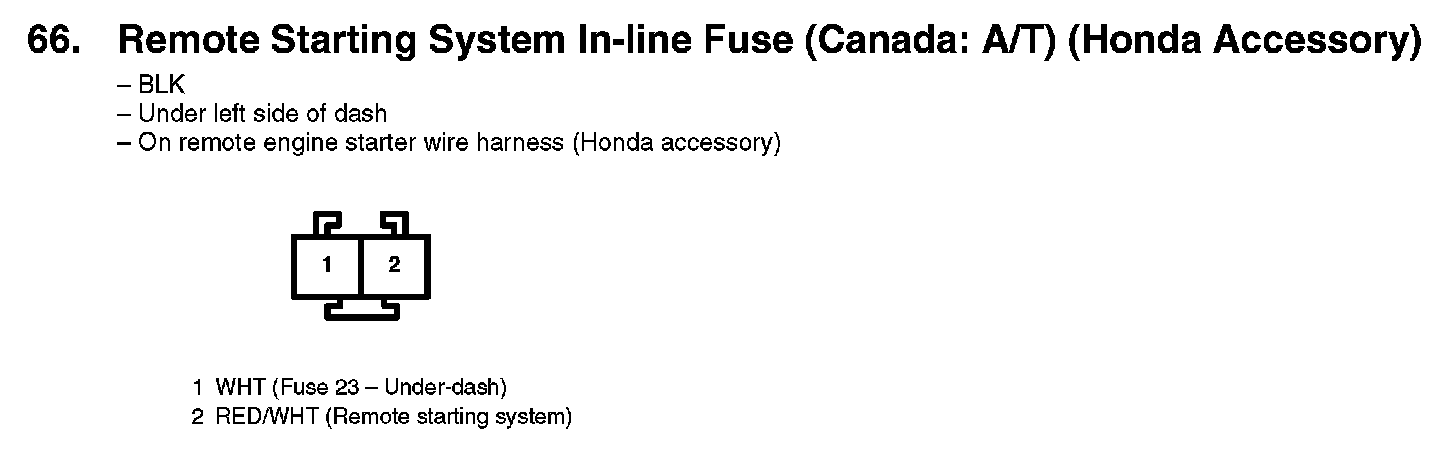

66. Remote Starting System In-line Fuse (Canada: A/T) (Honda Accessory):

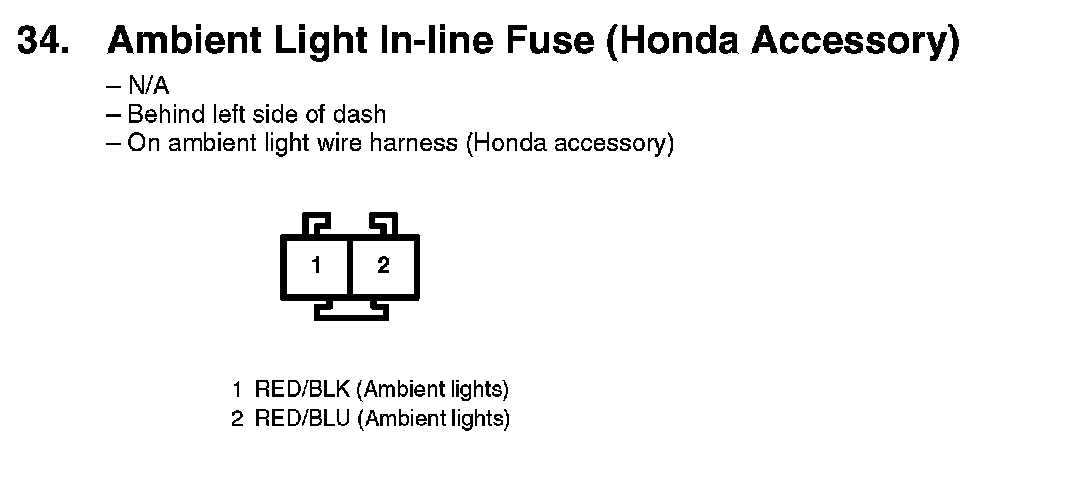

34. Ambient Light In-line Fuse (Honda Accessory):

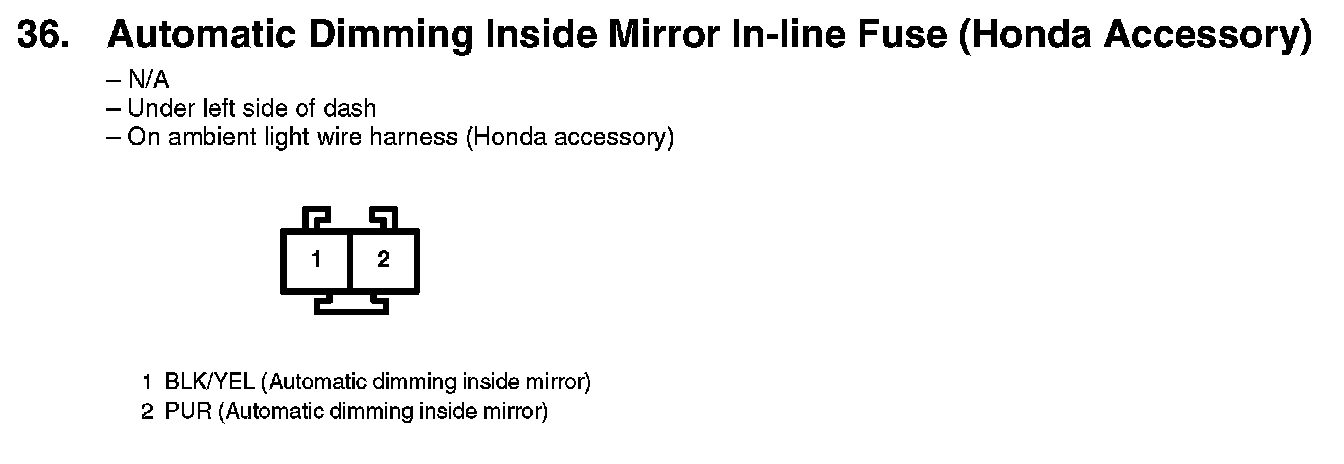

36. Automatic Dimming Inside Mirror In-line Fuse (Honda Accessory):
