Ground For ECM/PCM Sensors (DX, DX-G, LX, EX, Si)
Ground For ECM/PCM Sensors (DX, DX-G, LX, EX, Si)

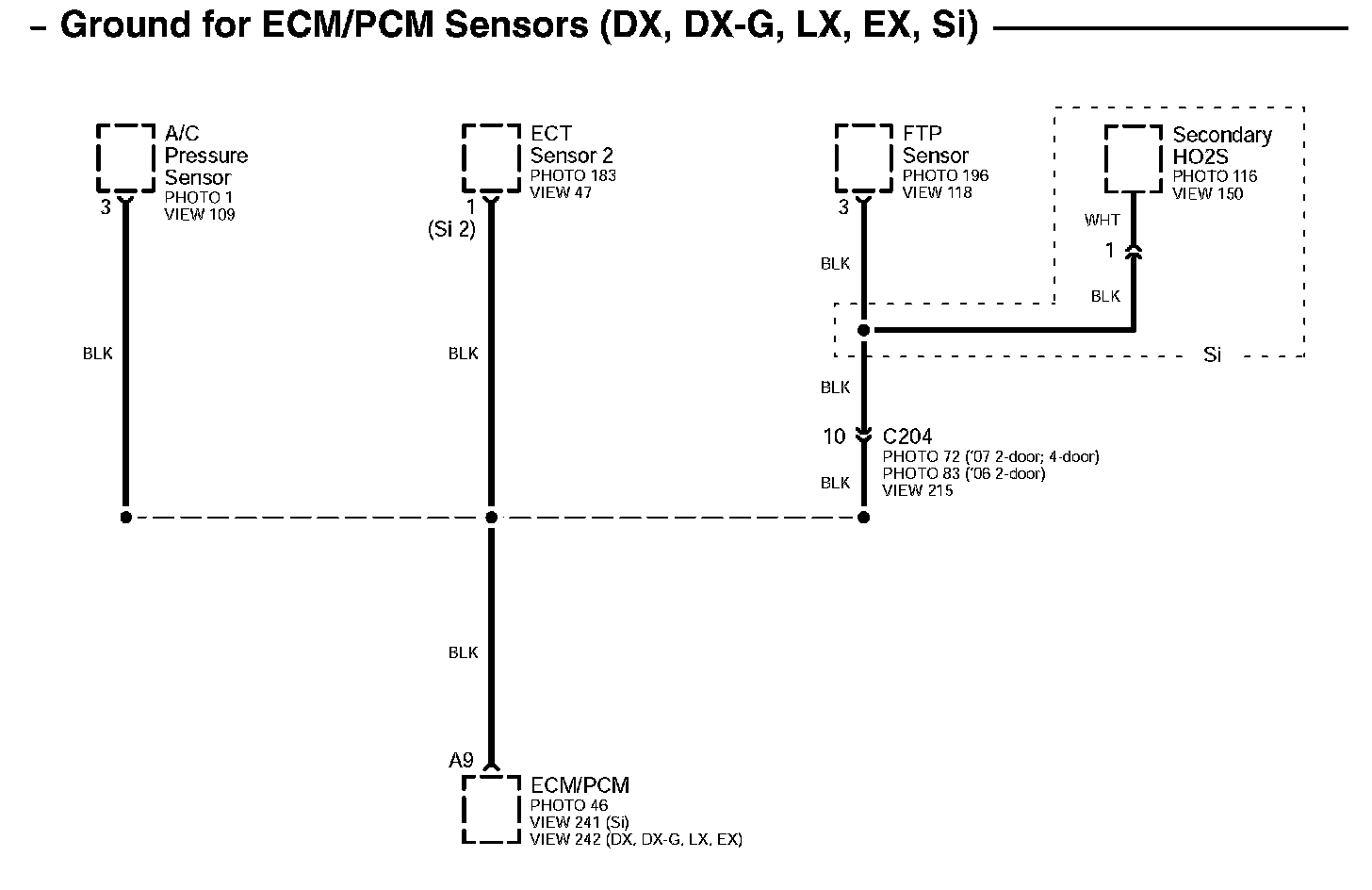

Ground for ECM/PCM Sensors (DX, DX-G, LX, EX, Si):
