Oil Pump

Oil Pump

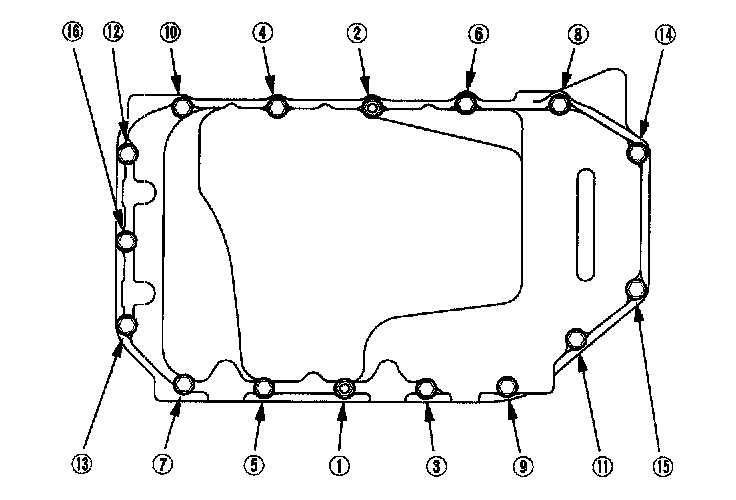

Tighten the bolts in two or three steps. In the final step, tighten all bolts, in sequence, to 12 Nm (1.2 kgf-m, 8.7 ft. lbs.). Wipe off the excess liquid gasket on the each side of crankshaft pulley and flywheel.

NOTE:
Wait at least 30 minutes before filling the engine with oil.
Do not run the engine for at least 3 hours after installing the oil pan.
