Camshaft Pulley/Gear

Camshaft Pulley/Gear

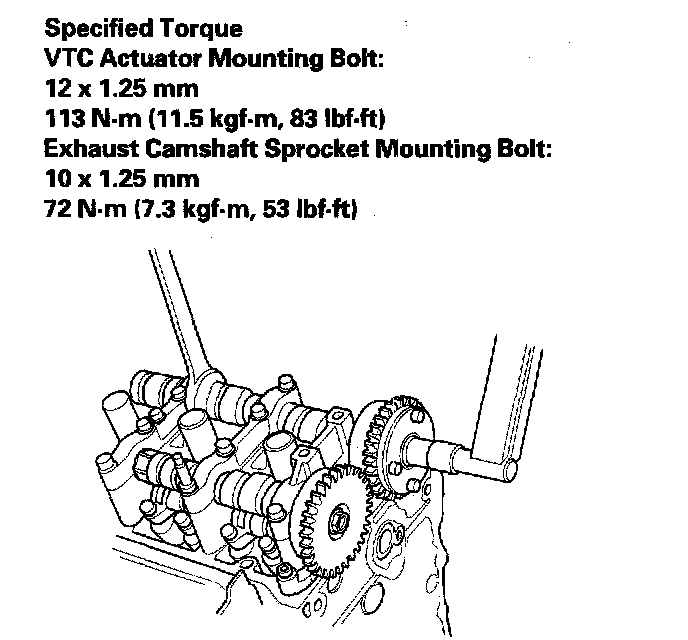

Apply engine oil to the threads of the VTC actuator mounting bolt and exhaust camshaft mounting bolt, then install them.
Hold the camshaft with an open-end wrench, then tighten the bolts.





Hold the camshaft, and turn the VTC actuator clockwise until you hear it click. Make sure to lock the VTC actuator by turning it.
