Power Window Switch: Diagrams

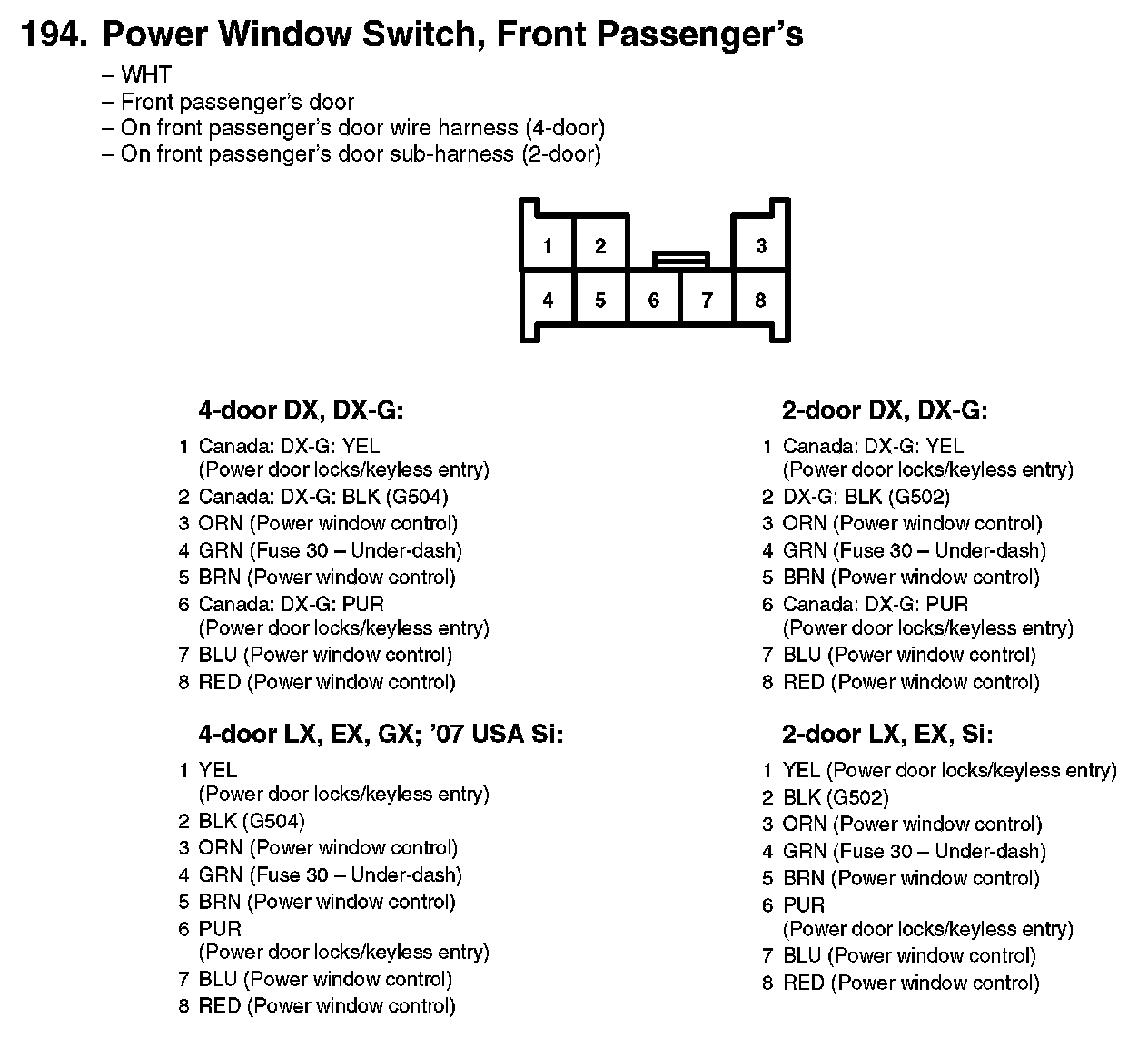

194. Power Window Switch, Front Passenger's:

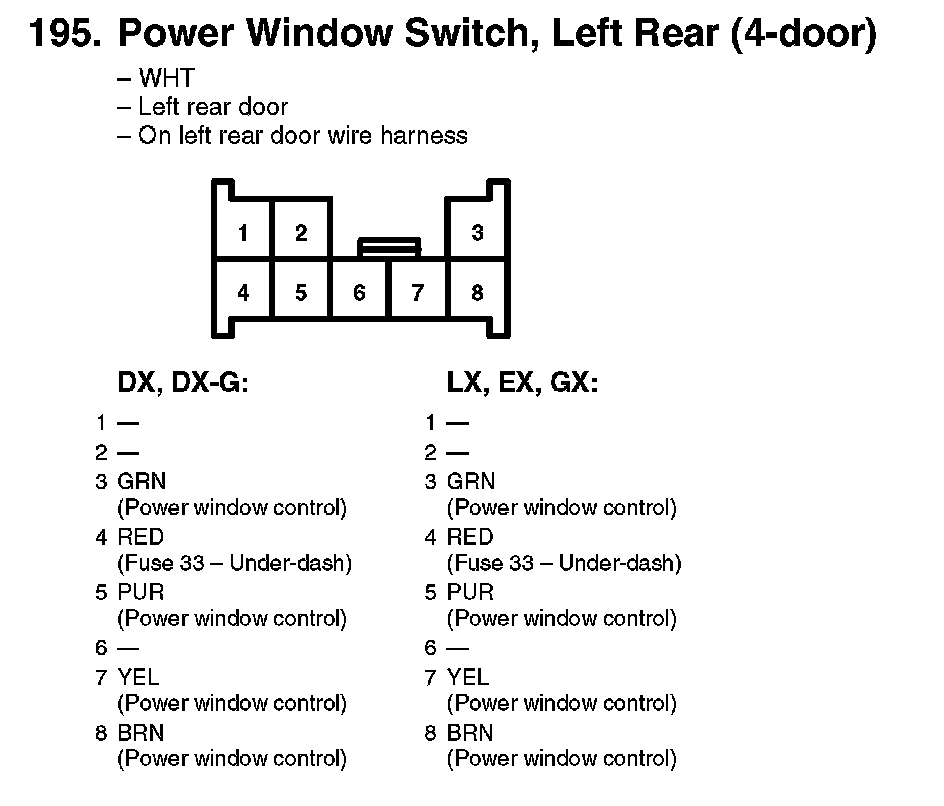

195. Power Window Switch, Left Rear (4-door):

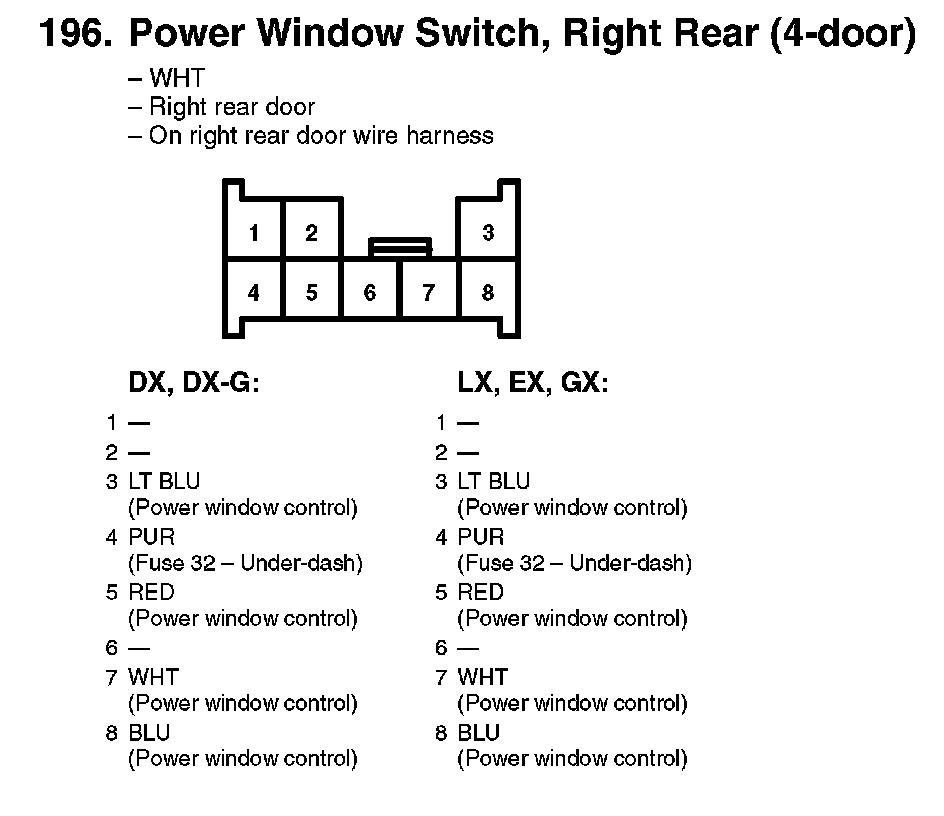

196. Power Window Switch, Right Rear (4-door):

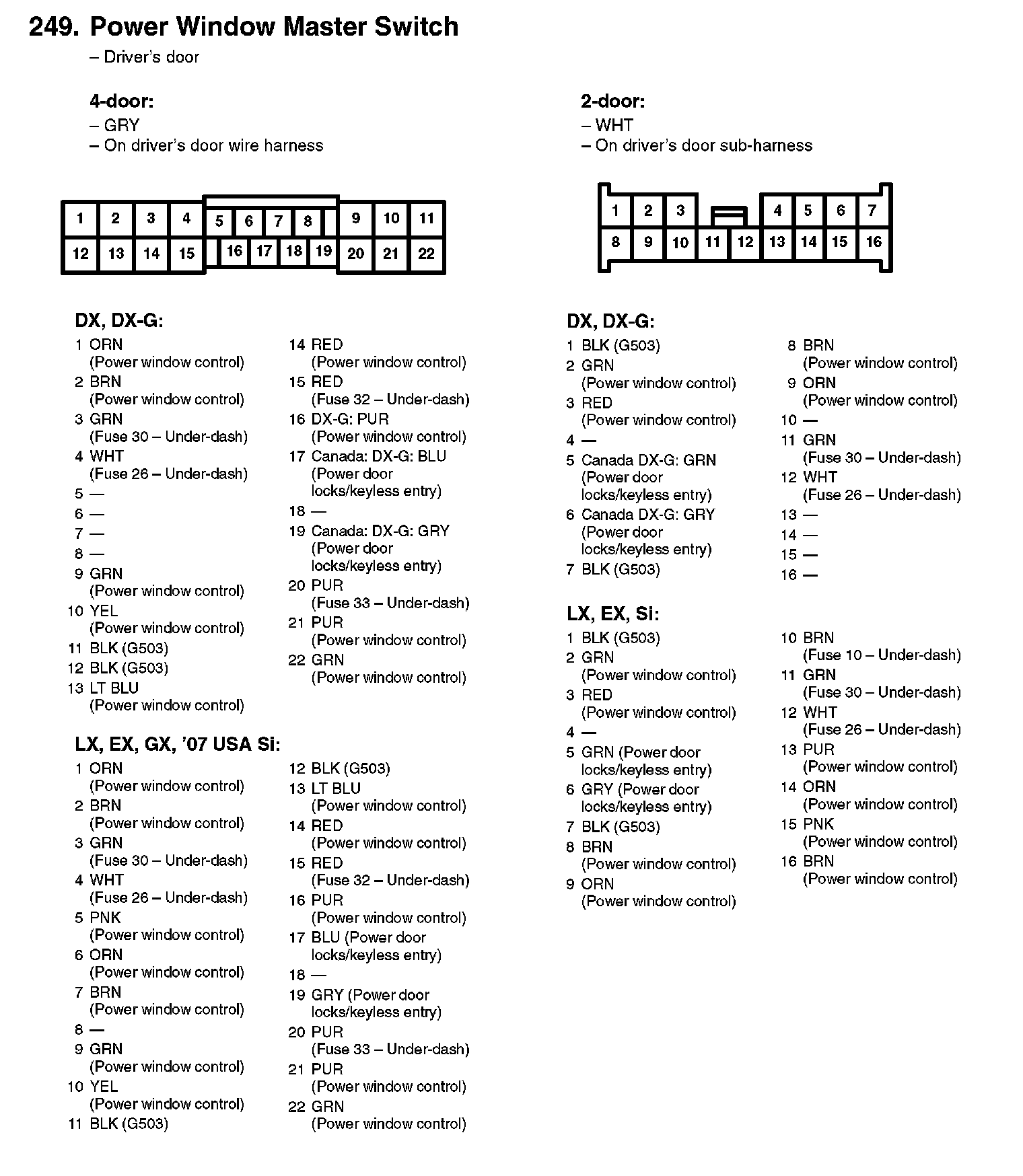

249. Power Window Master Switch:
